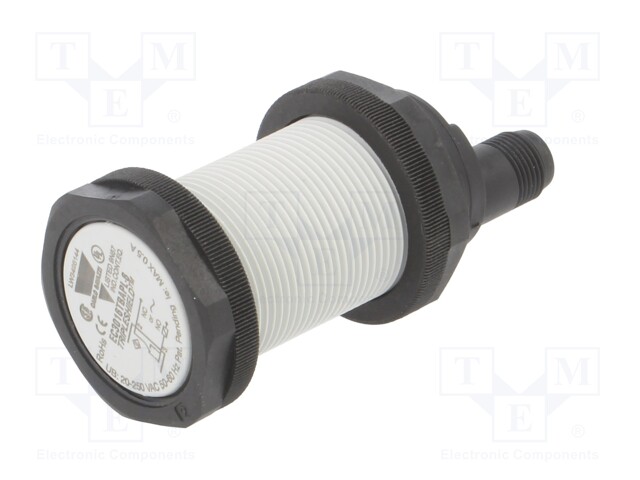

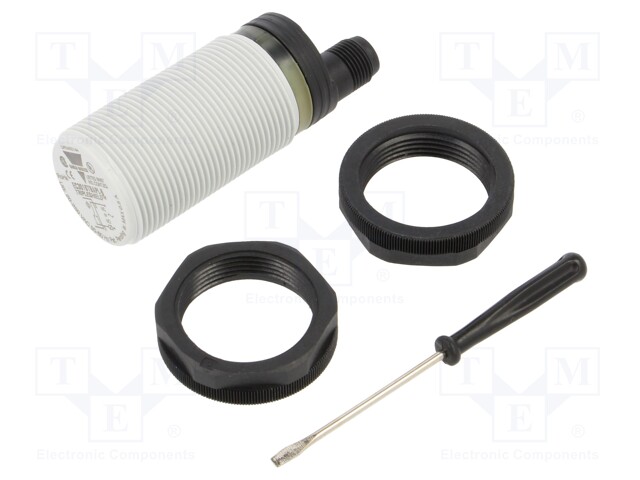

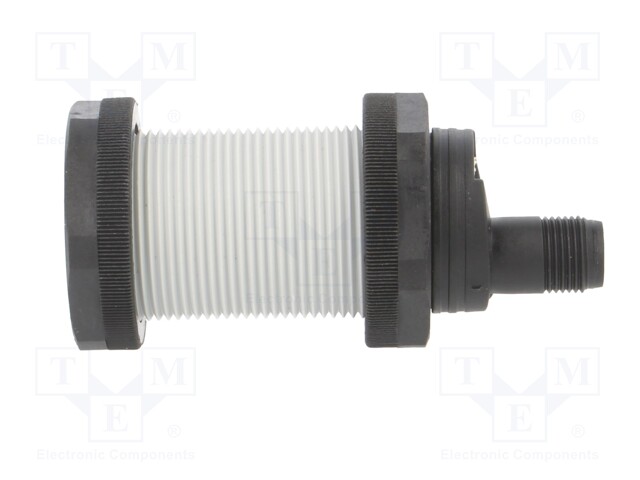

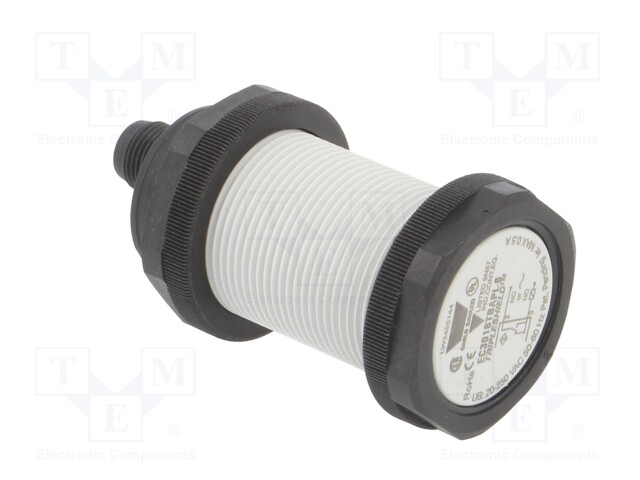

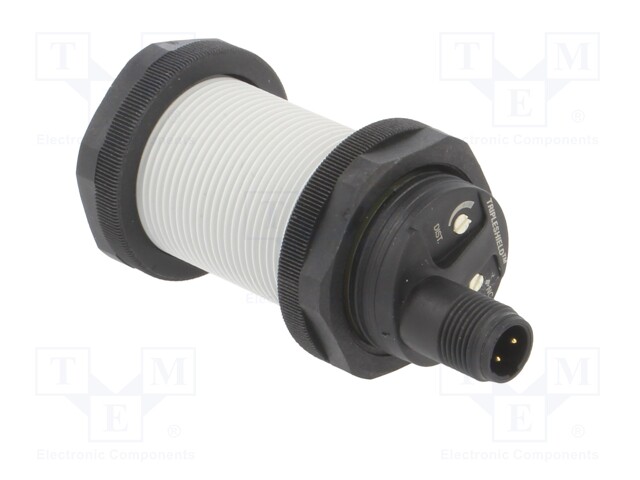

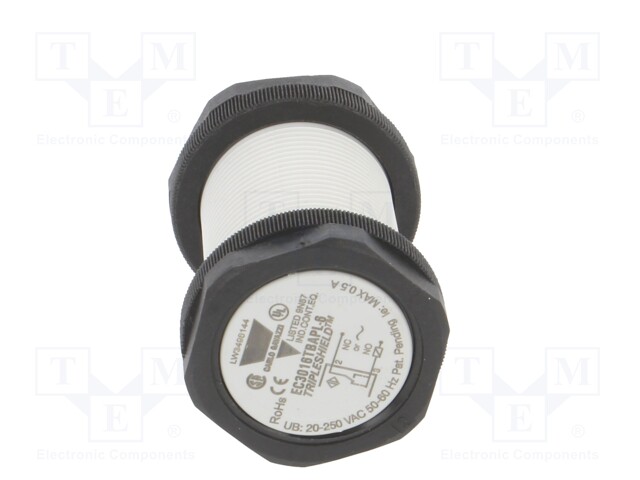

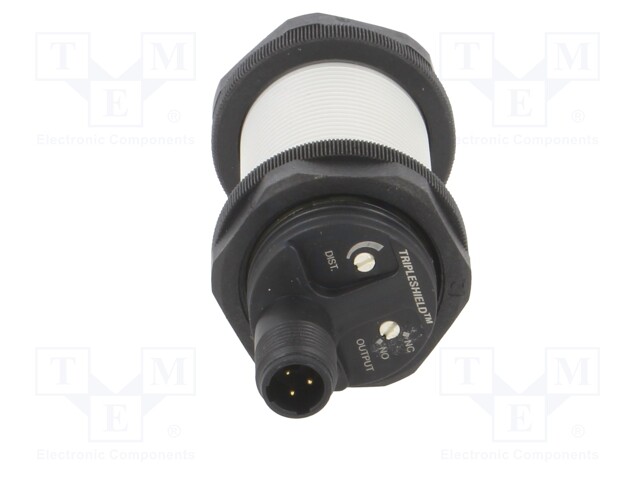

Sensor: capacitive; Range: 2÷16mm; 20÷250VAC; OUT: SCR; Housing: M30

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EC3016TBAPL-6
    Manufacturer: CARLO GAVAZZI
    Manufacturer code: EC3016TBAPL-6
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Body material
    • Range
    • Indication
    • Type of sensor
    • Sensors features
    • Connection
    • Switch housing
    • Switching frequency max
    • Kind of forehead

    164.14 € 164.14 € (wo VAT) 164.14000000000001 EUR

    164.14 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: capacitive; Range: 2÷16mm; 20÷250VAC; OUT: SCR; Housing: M30

    Supply voltage 20...250V AC
    Max. operating current 500mA
    Operating temperature -25...80°C
    IP rating IP67
    Body material polyester
    Range 2...16mm
    Indication LED
    Type of sensor capacitive
    Sensors features sensitivity adjustable
    Connection plug M12
    Switch housing M30
    Switching frequency max 10Hz
    Kind of forehead embedded
