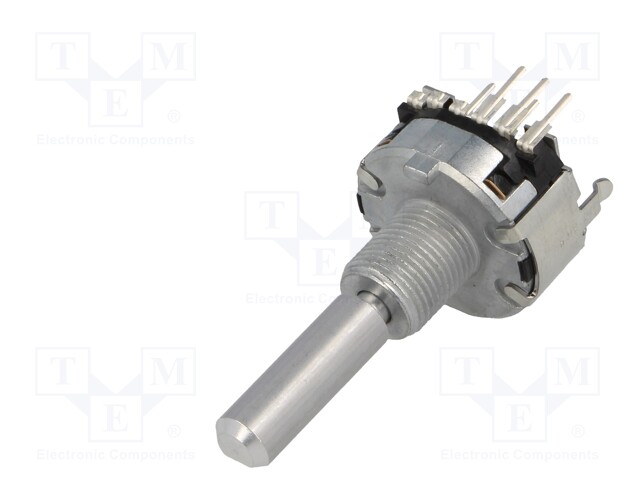

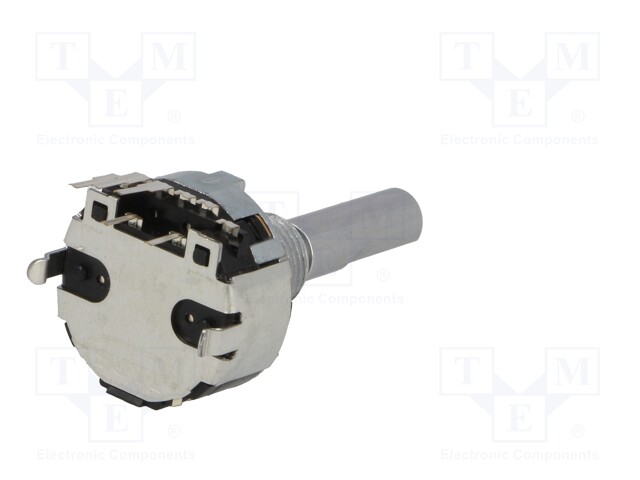

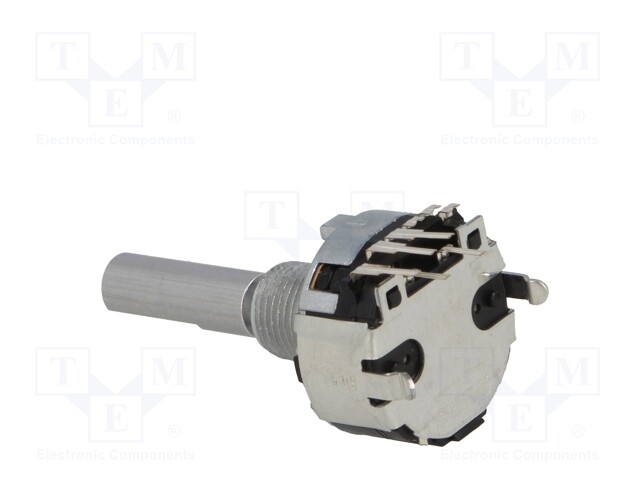

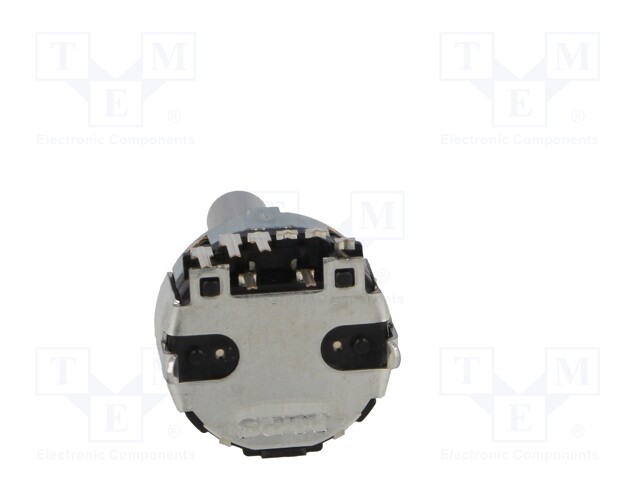

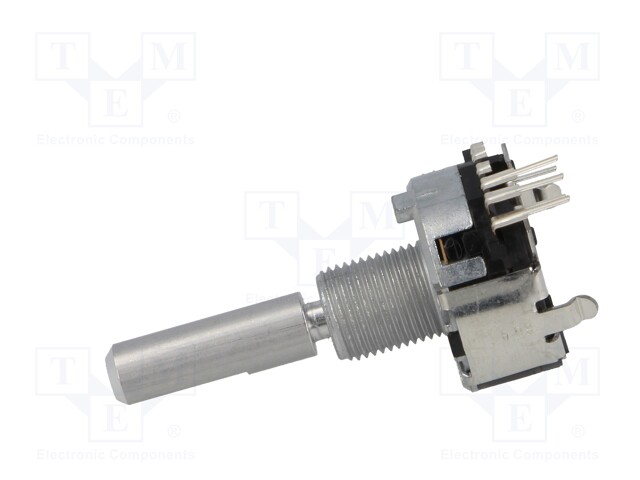

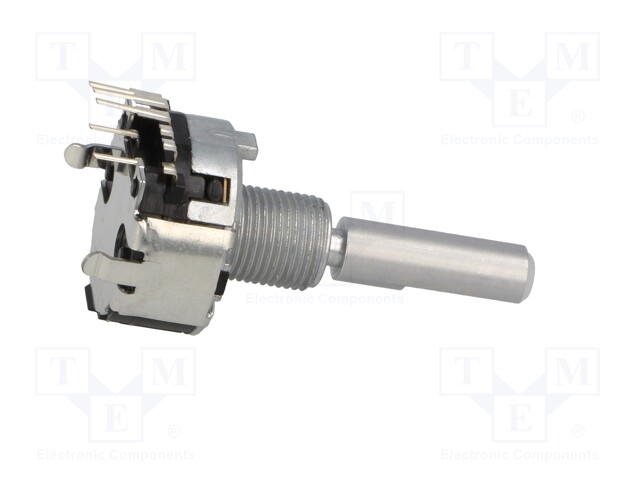

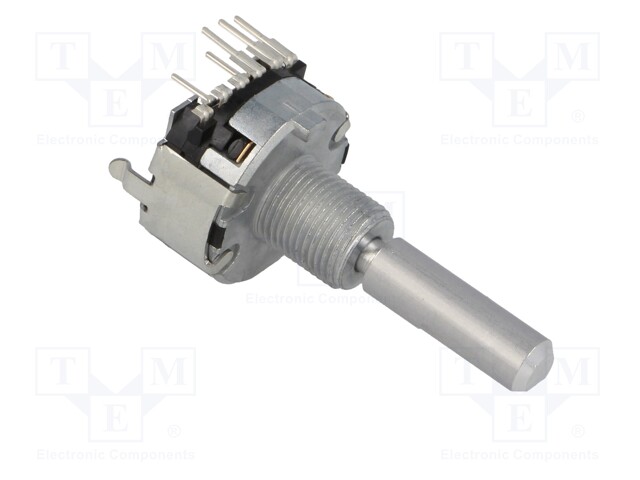

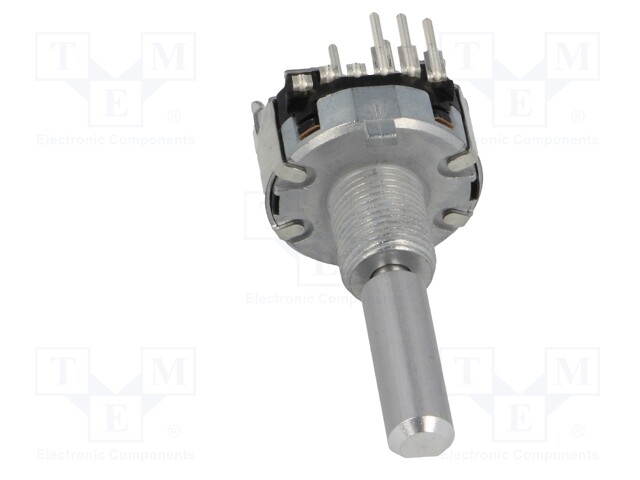

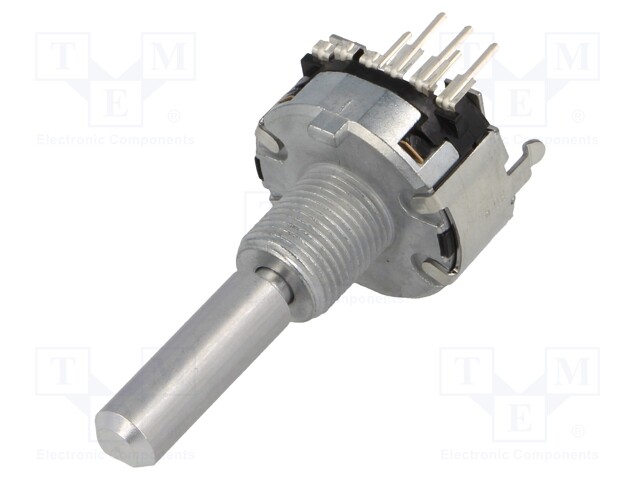

Encoder: incremental; THT; 18imp/revol; two phase A and B; 1mA

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: EC20A1824401
    Manufacturer: ALPS
    Manufacturer code: EC20A1824401
    • Mounting
    • Type of encoder
    • Operating voltage
    • Max. operating current
    • Operating temperature
    • Number of positions
    • Mechanical durability
    • Resolution
    • Output signal
    • Shaft length
    • Shaft diameter
    • Shaft surface
    • Encoders features
    • Key stroke
    • Cut depth

    9.83 € 9.83 € (wo VAT) 9.83 EUR

    9.83 €

    This combination does not exist.

    Add to Cart

    Product downloads

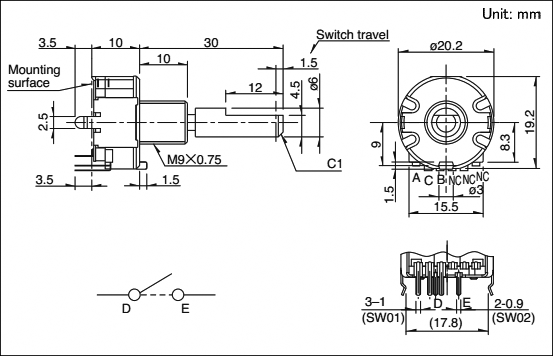

    Specification for Encoder: incremental; THT; 18imp/revol; two phase A and B; 1mA

    Mounting THT
    Type of encoder incremental
    Operating voltage 5V DC
    Max. operating current 1mA
    Operating temperature -30...80°C
    Number of positions 18
    Mechanical durability 20000cycles
    Resolution 18imp/revol.
    Output signal two phase A and B
    Shaft length 20mm
    Shaft diameter 6mm
    Shaft surface D spring
    Encoders features with button
    Key stroke 1.5mm
    Cut depth 1.5mm
