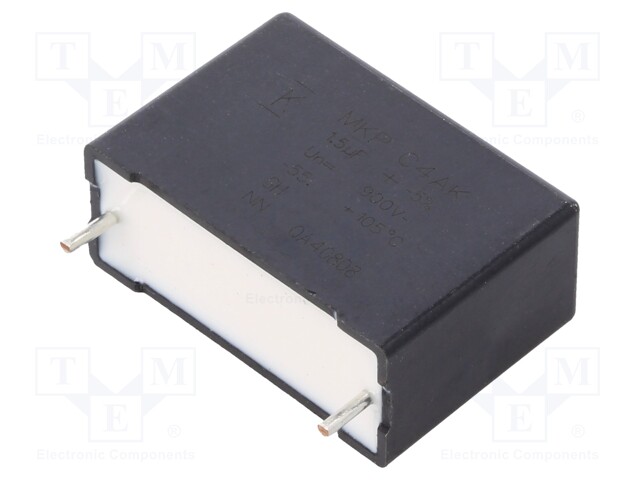

Capacitor: polypropylene; DC-Link; 1.5uF; ESR: 28mΩ; THT; ±5%

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: C4AKOBU4150A3BJ
    Manufacturer: KEMET
    Manufacturer code: C4AKOBU4150A3BJ
    • Mounting
    • Operating temperature
    • Tolerance
    • Max. forward impulse current
    • Terminal pitch
    • Body dimensions
    • Max. operating voltage
    • Capacitance
    • Kind of capacitor
    • Type of capacitor
    • ESR value
    • Pulse resistance

    2.28 € 2.28 € (wo VAT) 2.2800000000000002 EUR

    2.28 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Capacitor: polypropylene; DC-Link; 1.5uF; ESR: 28mΩ; THT; ±5%

    Mounting THT
    Operating temperature -55...135°C
    Tolerance ±5%
    Max. forward impulse current 60A
    Terminal pitch 27.5mm
    Body dimensions 32x22x13mm
    Max. operating voltage 900V DC
    Capacitance 1.5µF
    Kind of capacitor DC-Link
    Type of capacitor polypropylene
    ESR value 28mΩ
    Pulse resistance 40V/μs
