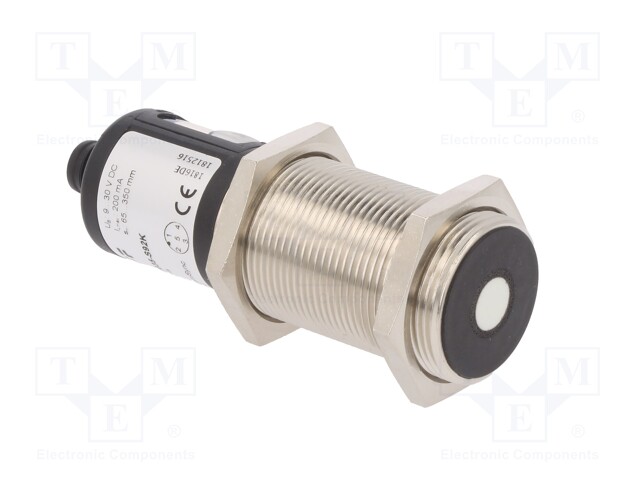

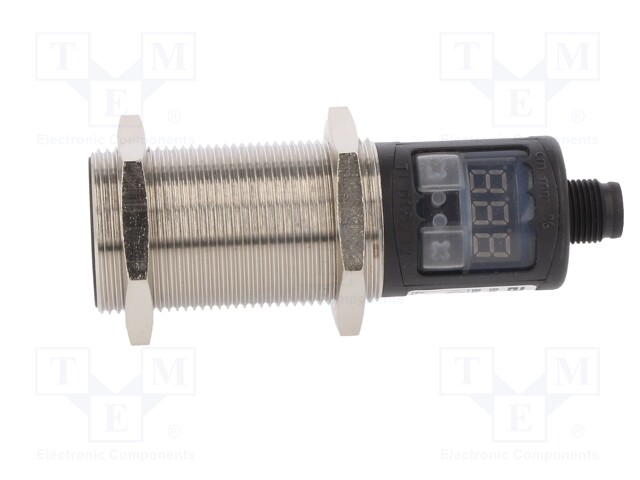

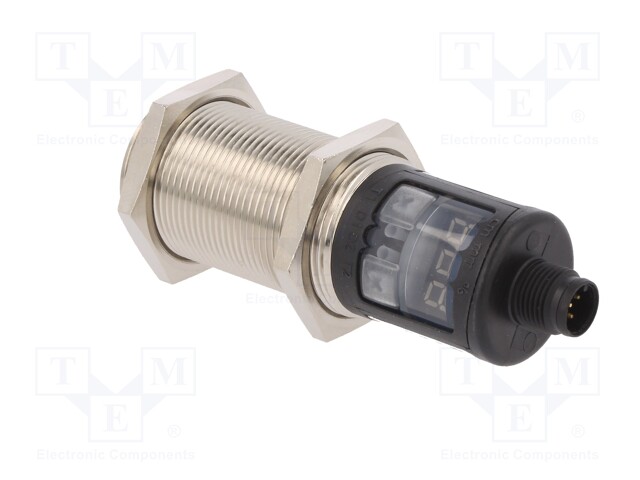

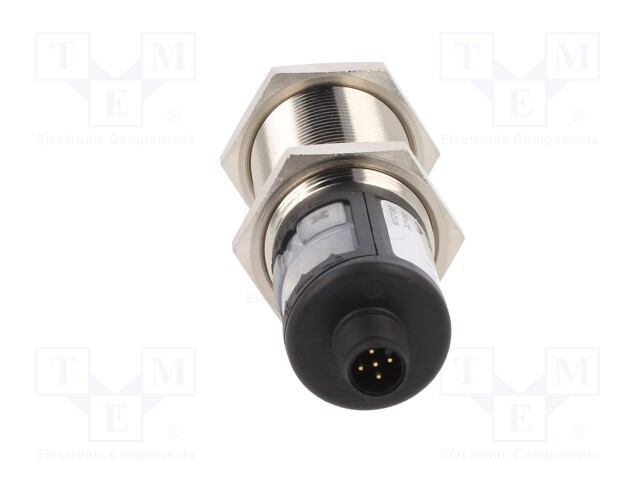

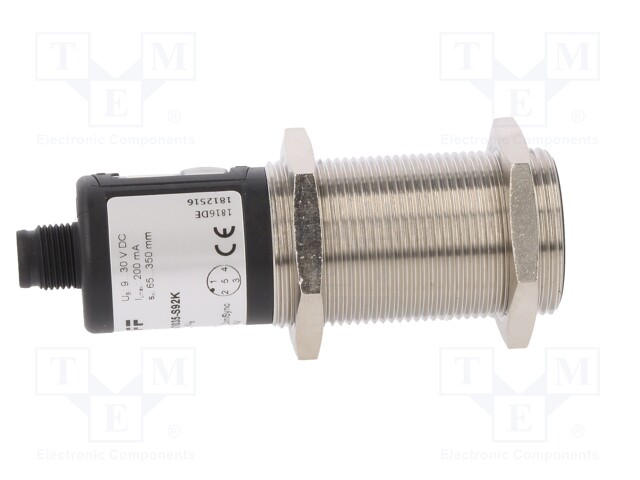

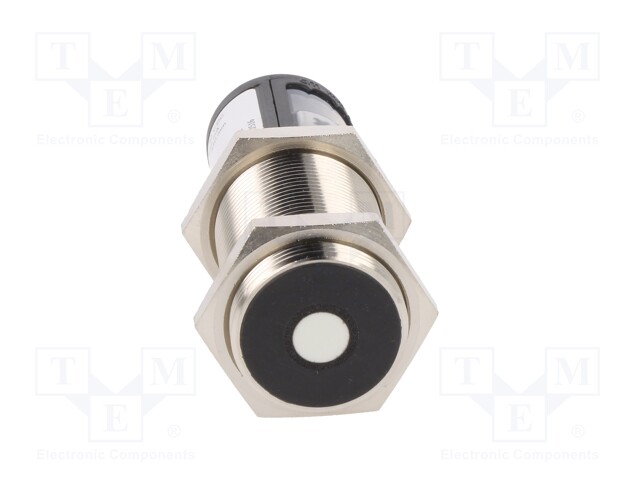

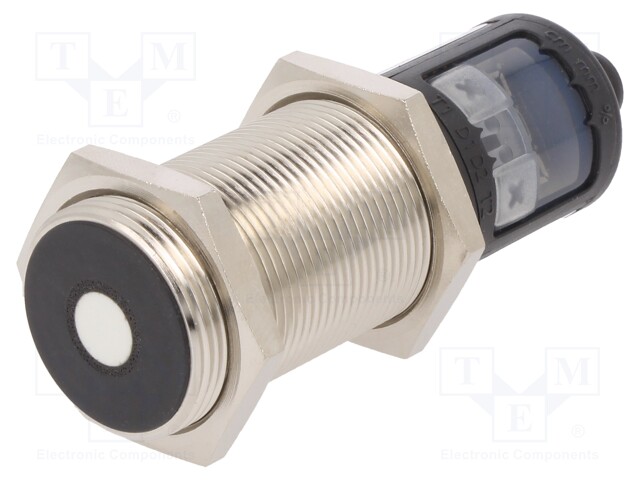

Sensor: ultrasonic; straight; Range: 65÷350mm; PNP / NO / NC

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: BUS M30M1-PPX-07/035-S92K
    Manufacturer: BALLUFF
    Manufacturer code: BUS M30M1-PPX-07/035-S92K
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Range
    • Output configuration
    • Kind of sensor
    • Body plating
    • Type of sensor
    • Connection
    • Switch housing

    272.65 € 272.65 € (wo VAT) 272.65 EUR

    272.65 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Sensor: ultrasonic; straight; Range: 65÷350mm; PNP / NO / NC

    Supply voltage 9...30V DC
    Max. operating current 200mA
    Operating temperature -25...70°C
    IP rating IP67
    Number of pins 5
    Body material brass
    Range 65...350mm
    Output configuration PNP / NO / NC
    Kind of sensor straight
    Body plating nickel
    Type of sensor ultrasonic
    Connection connector M12
    Switch housing M30
