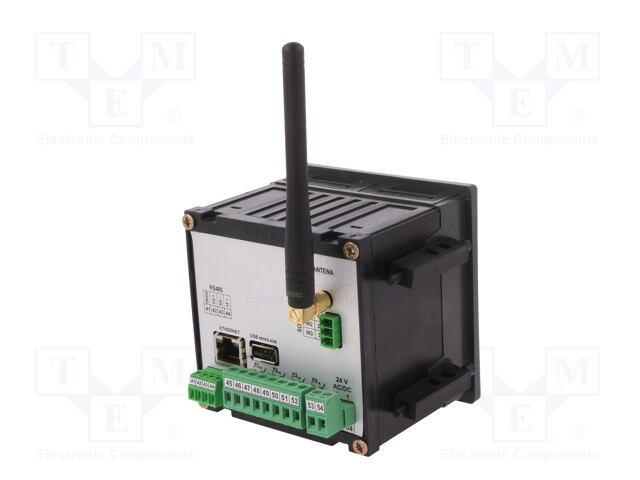

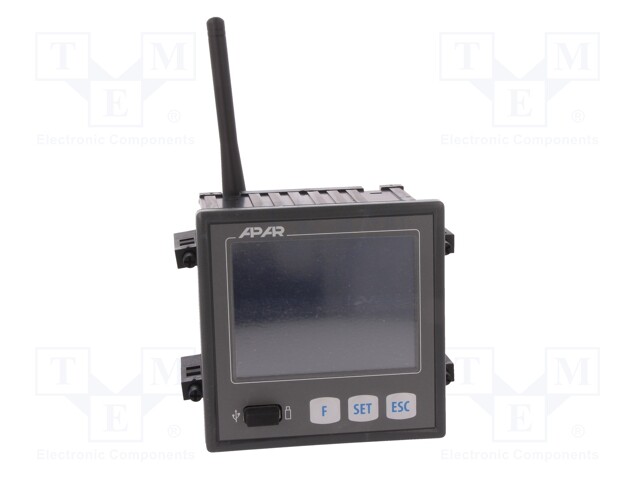

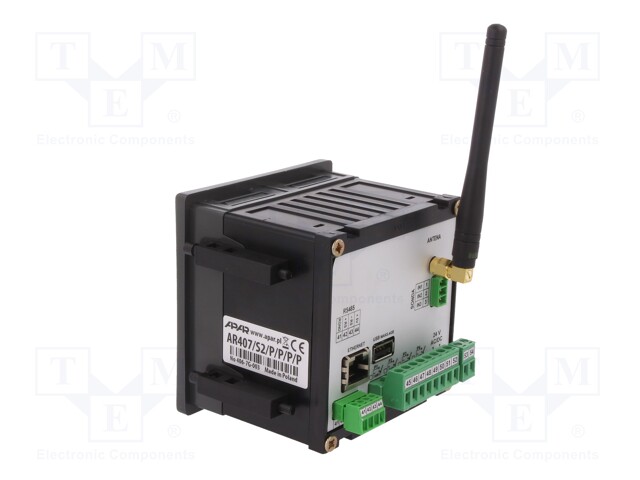

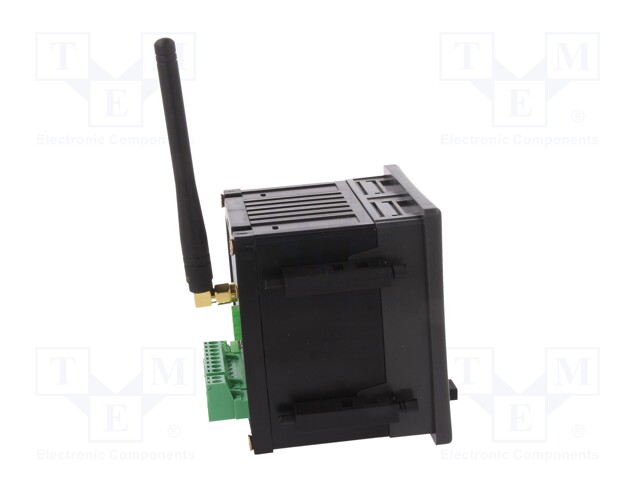

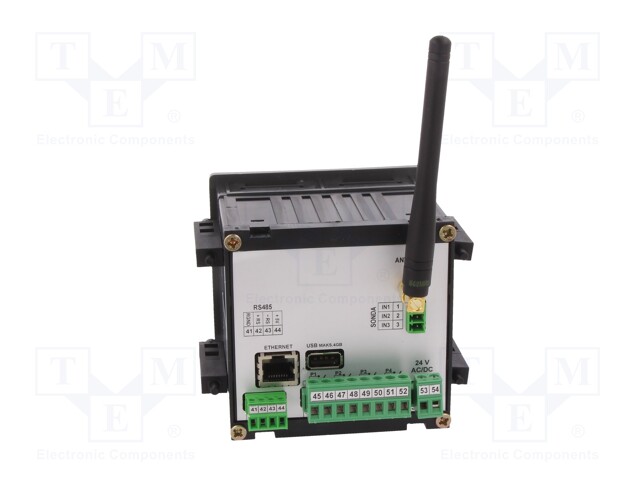

Logger; 230VAC; IN: 16; Mounting: on panel; IP30 (from the front)

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: AR407/S1/P/P/P/P
    Manufacturer: APAR
    Manufacturer code: AR407/S1/P/P/P/P
    • Mounting
    • Supply voltage
    • Operating temperature
    • IP rating
    • Type of module
    • Mounting hole diameter
    • Body dimensions
    • Kind of display used
    • Kind of display used
    • Additional functions
    • Additional functions
    • Communication with PC
    • Communication with PC
    • Display resolution
    • Kind of input 1
    • Number of inputs
    • Driver features
    • Kind of output 1
    • The programming method
    • The programming method
    • Kind of output 2
    • Kind of output 3
    • Kind of output 4

    586.00 € 586.00 € (wo VAT) 586.0 EUR

    586.00 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Logger; 230VAC; IN: 16; Mounting: on panel; IP30 (from the front)

    Mounting on panel
    Supply voltage 230V AC
    Operating temperature 0...50°C
    IP rating IP30 (from the front)
    Type of module logger
    Mounting hole diameter 92x89mm
    Body dimensions 96x96x79mm
    Kind of display used color, LCD TFT 3,5"
    Additional functions 4GB of data memory, MODBUS RTU
    Communication with PC RJ45 Ethernet, USB
    Display resolution 320x240
    Kind of input 1 universal
    Number of inputs 16
    Driver features front and rear panel USB
    Kind of output 1 SPST-NO
    The programming method keypad, PC
    Kind of output 2 SPST-NO
    Kind of output 3 SPST-NO
    Kind of output 4 SPST-NO
