Fan: AC; axial; 230VAC; 171x151x51mm; 344(±10%)m3/h; 51dBA; 2800rpm

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: A2175HBT.TC.GN
    Manufacturer: SUNON
    Manufacturer code: A2175HBT.TC.GN
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Leads
    • Flammability rating
    • Current rating
    • Frequency
    • Power consumption
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Type of fan
    • Static pressure
    • Noise level

    31.92 € 31.92 € (wo VAT) 31.92 EUR

    31.92 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Fan: AC; axial; 230VAC; 171x151x51mm; 344(±10%)m3/h; 51dBA; 2800rpm

    Supply voltage 230V AC
    Operating temperature -10...70°C
    Enclosure material aluminium
    Leads 2,8x0,3mm connectors
    Flammability rating UL94V-0
    Current rating 110mA
    Frequency 50Hz
    Power consumption 25W
    Rotational rate/speed 2800rpm
    Fan motor Alveolate type motor with running capacitor

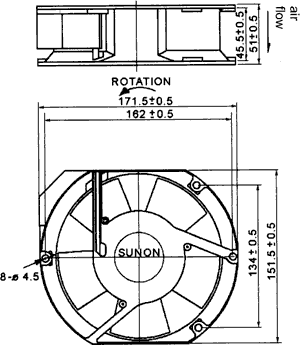

    Fan dimensions 171x151x51mm
    Kind of Bearing ball bearing
    Min. insulation resistance 500MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Type of fan AC
    Static pressure 15.74mm H<sub>2</sub>O
    Noise level 51dBA
