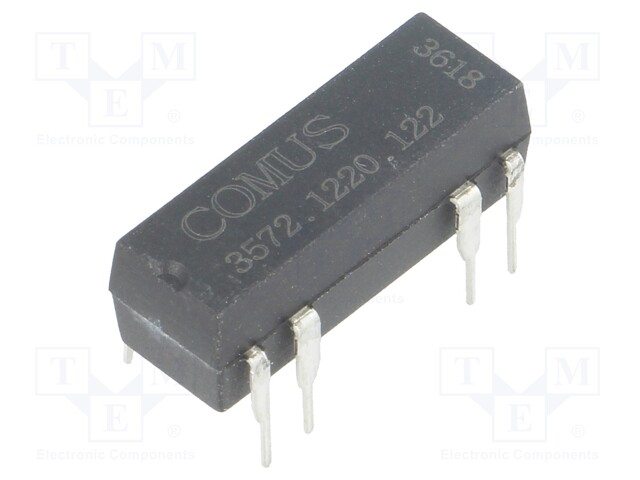

Relay: reed; DPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W; THT

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3572.1220.122
    Manufacturer: COMUS
    Manufacturer code: 3572.1220.122
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Switching capacity
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Relay series
    • Optional equipment

    4.37 € 4.37 € (wo VAT) 4.37 EUR

    4.37 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Relay: reed; DPST-NO; Ucoil: 12VDC; 500mA; max.150VDC; 10W; THT

    Mounting THT
    Case DIP14
    Operating temperature -20...85°C
    Terminal pitch 2.54mm
    Body dimensions 19.5x6.9x6.9mm
    Switched voltage max. 150V DC
    Switching capacity 10W
    Coil resistance 500Ω
    Rated coil voltage 12V DC
    Contacts configuration DPST-NO
    Contact resistance 150mΩ
    Contact current max. 500mA
    Coil voltage max. 32V DC
    Type of relay reed
    Coil voltage min. 18V DC
    Relay series 3572
    Optional equipment electrostatic shield
