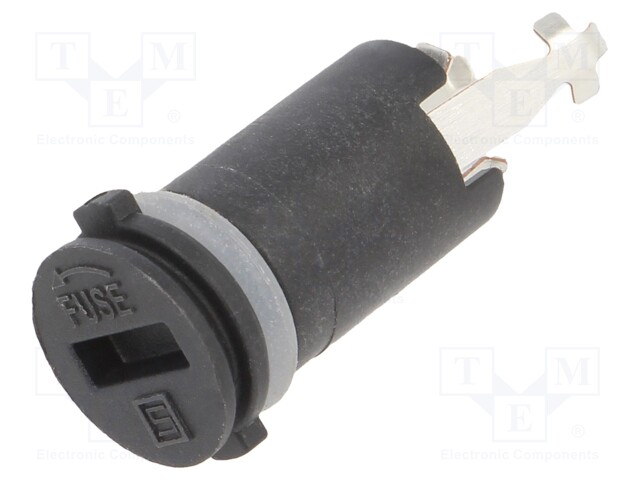

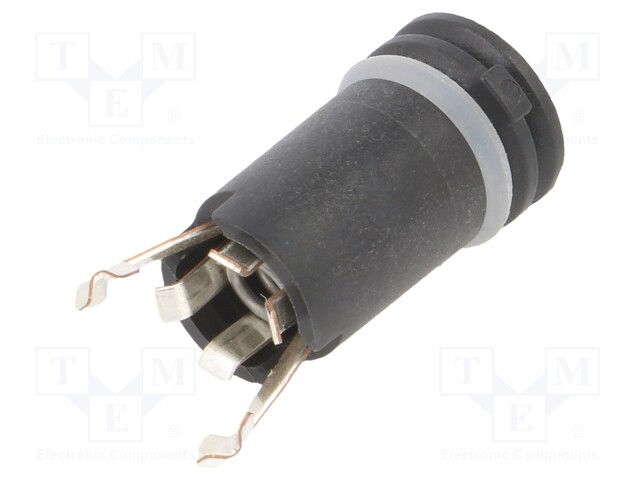

Fuse holder; cylindrical fuses; 10A; on panel; -40÷85°C; UL94V-0

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 3101.0320
    Manufacturer: SCHURTER
    Manufacturer code: 3101.0320
    • Mounting
    • Operating temperature
    • IP rating
    • Colour
    • Contact plating
    • Leads
    • Contact material
    • Body material
    • Flammability rating
    • Maximum current
    • Mounting hole diameter
    • Rated voltage
    • Panel thickness
    • Type of fuse accessories
    • Contact resistance
    • Cap type

    3.26 € 3.26 € (wo VAT) 3.2600000000000002 EUR

    3.26 €

    This combination does not exist.

    Add to Cart

    Specification for Fuse holder; cylindrical fuses; 10A; on panel; -40÷85°C; UL94V-0

    Mounting on panel
    Operating temperature -40...85°C
    IP rating IP67
    Colour black
    Contact plating tinned
    Leads 4,8x0,5mm connectors
    Contact material copper alloy
    Body material thermoplastic
    Flammability rating UL94V-0
    Maximum current 10A
    Mounting hole diameter Ø13mm
    Rated voltage 250V AC
    Panel thickness max. 8mm
    Type of fuse accessories fuse holder
    Contact resistance 10mΩ
    Cap type screw in
