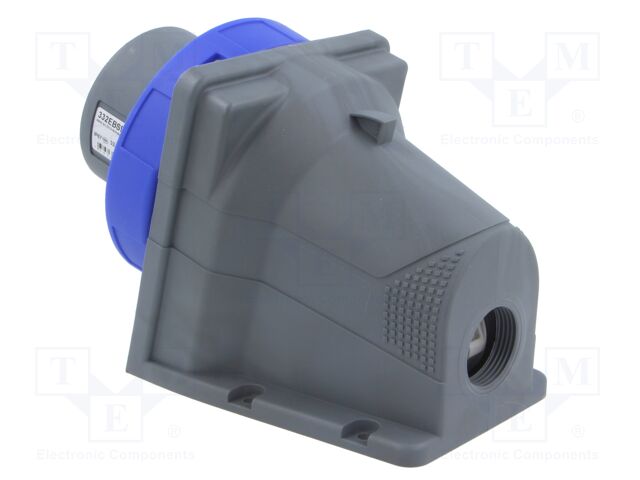

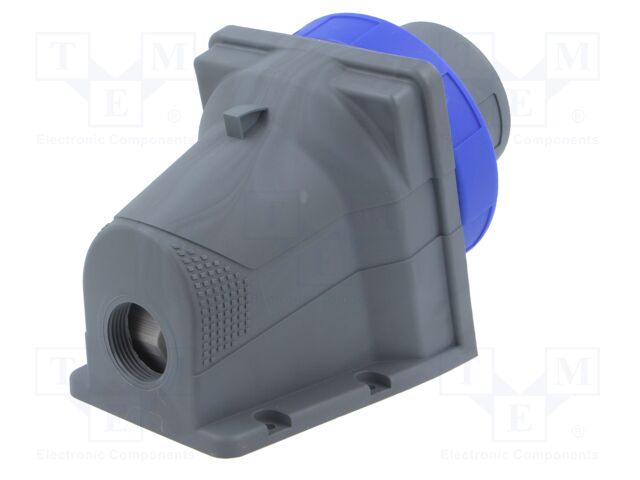

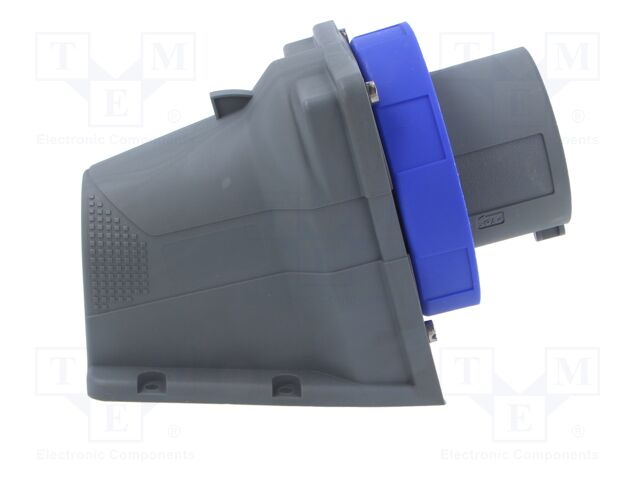

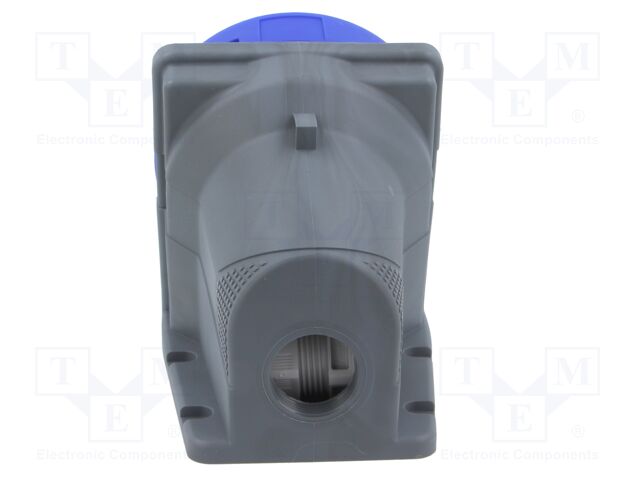

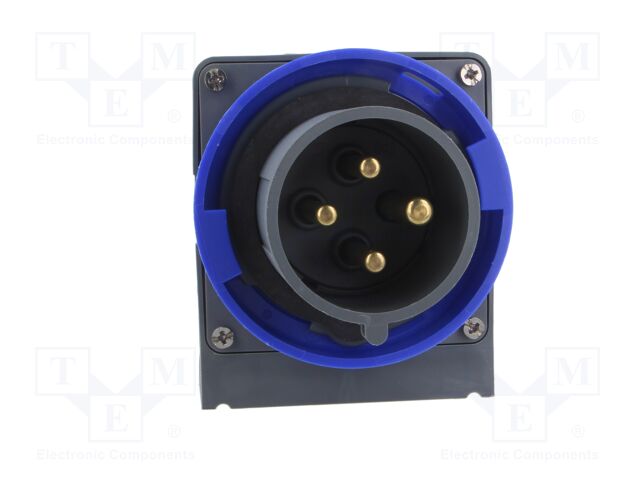

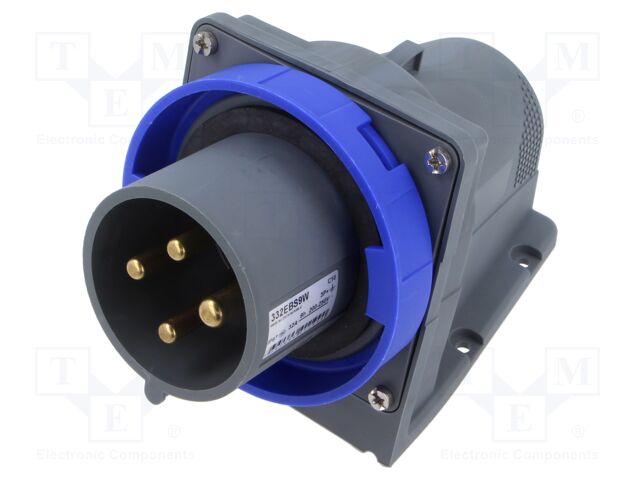

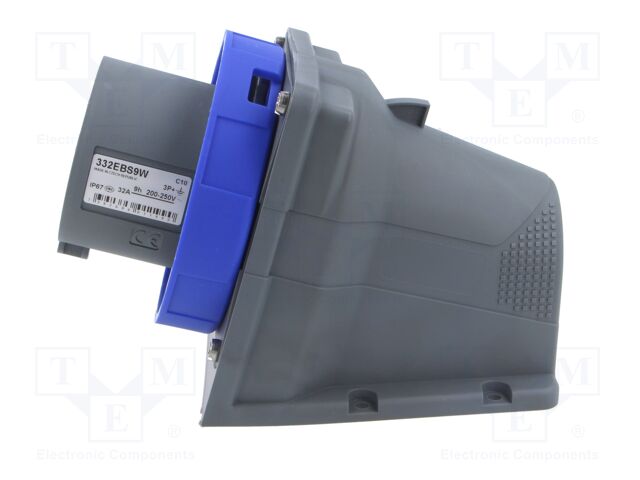

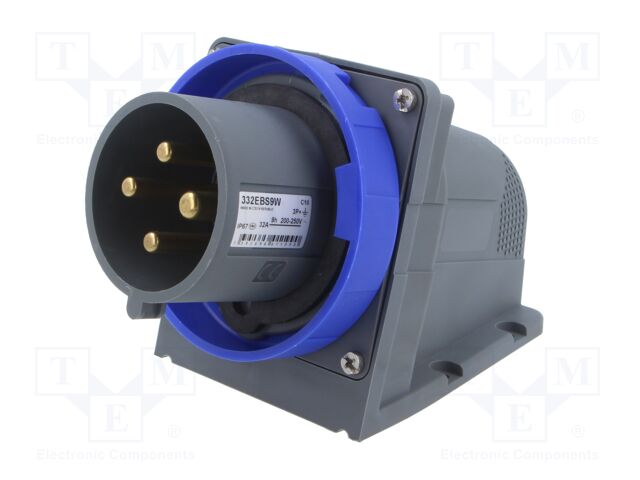

Connector: AC supply 3-phase; socket; male; angled; -25÷40°C; IP67
Multiples:
1.0
Minimum quantity:
1.0
Product code:
2CMA101199R1000
Manufacturer: AMPHENOL
Manufacturer code: 2CMA101199R1000
Product downloads
Specification for Connector: AC supply 3-phase; socket; male; angled; -25÷40°C; IP67
| Operating temperature | -25...40°C |
| IP rating | IP67 |
| Electrical mounting | screw terminal |
| Connector | socket |
| Kind of connector | male |
| Mechanical mounting | flange (4 holes), for panel mounting |
| Type of connector | AC supply 3-phase |
| Number of pins | 4 |
| Contact material | brass |
| Current rating | 32A |
| Type of pin configuration | 3P+PE |
| Standard | IEC 60309 |
| Rated voltage | 250V AC, 250V |
| Spatial orientation | angled |
