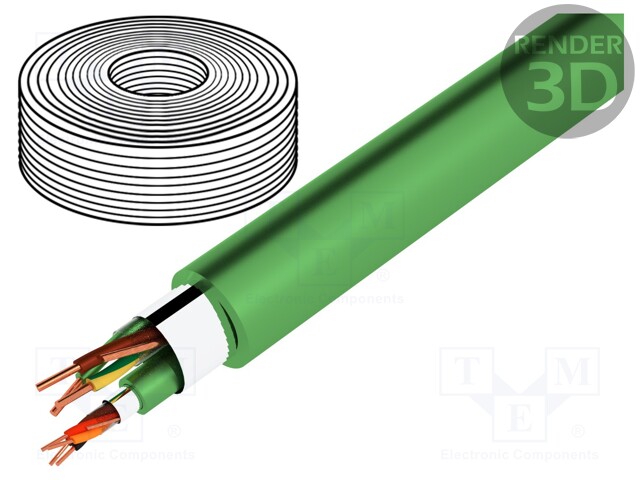

Wire; EiB/KNX,PROFIBUS,air-conditioning technology; solid; Cu

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 2170242
    Manufacturer: LAPP
    Manufacturer code: 2170242
    • Operating temperature
    • Core structure
    • Kind of core
    • Cable features
    • Number of cores
    • Wire insulation material
    • Kind of wire
    • Cable external diameter
    • Insulation colour
    • Cable application
    • Cable application
    • Cable application
    • Type of wire
    • No. of pairs
    • Shield structure
    • CPR standard

    11.46 € 11.46 € (wo VAT) 11.46 EUR

    11.46 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Wire; EiB/KNX,PROFIBUS,air-conditioning technology; solid; Cu

    Operating temperature -30...70°C
    Core structure solid
    Kind of core Cu
    Cable features twisted four conductors
    Number of cores 7
    Wire insulation material PVC
    Kind of wire UNITRONIC® BUS EIB COMBI
    Cable external diameter 12.7mm
    Insulation colour green
    Cable application air-conditioning technology, EiB/KNX, PROFIBUS
    Type of wire data transmission
    No. of pairs 1
    Shield structure Al-PET foil
    CPR standard E<sub>ca</sub>
