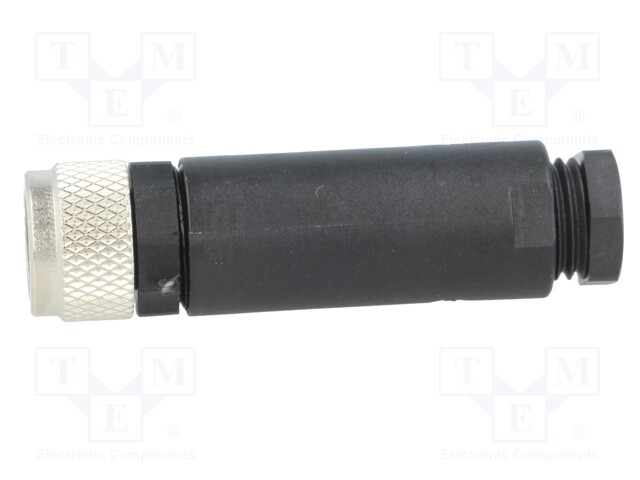

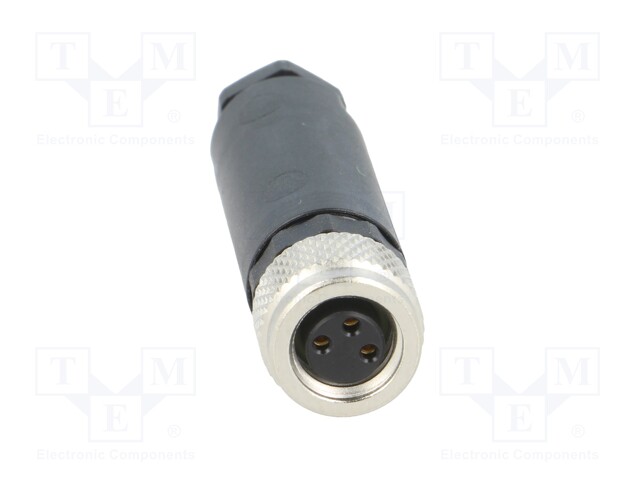

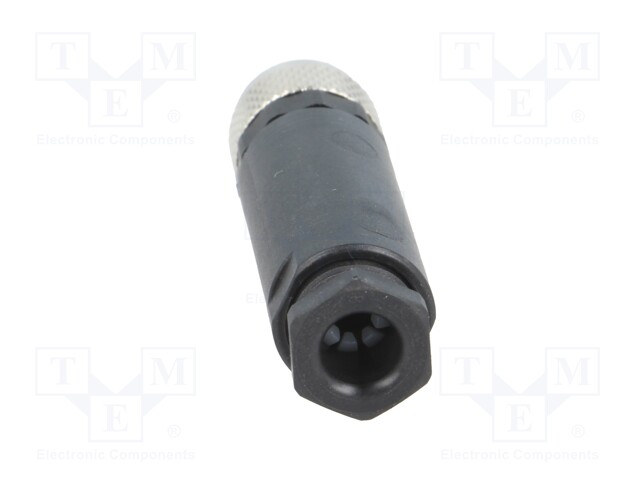

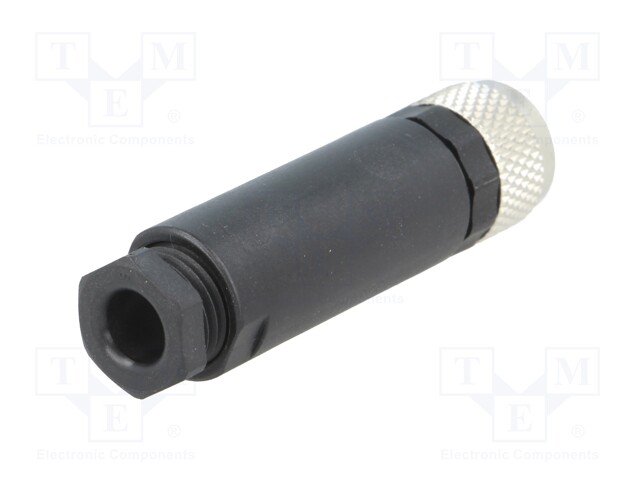

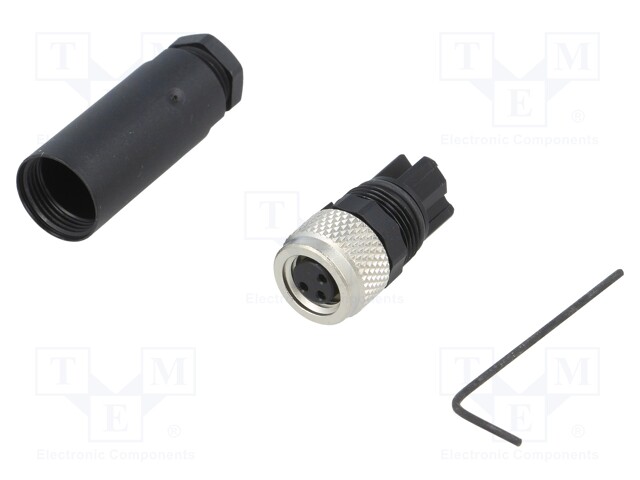

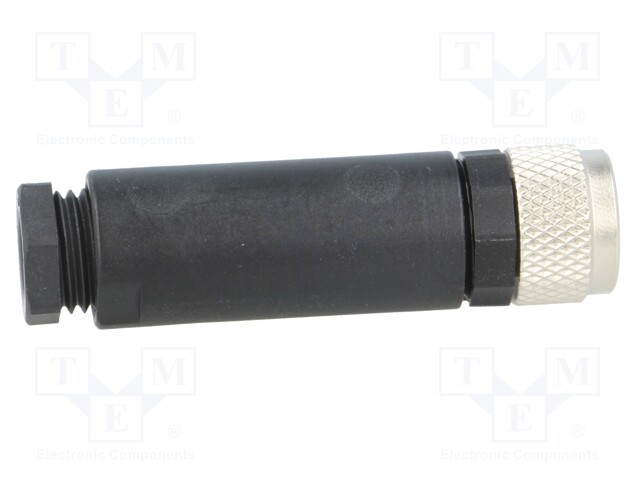

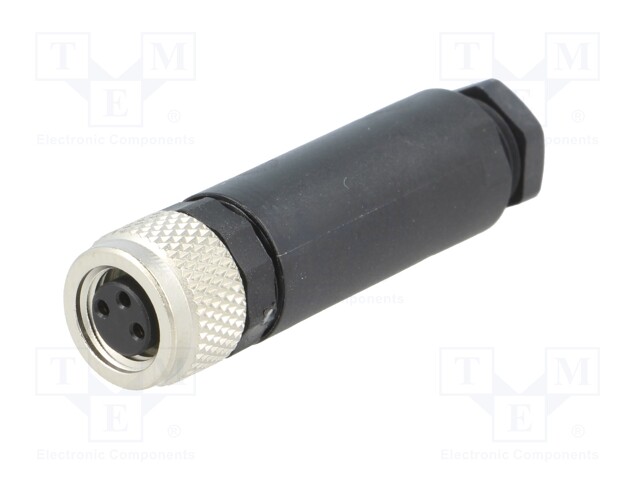

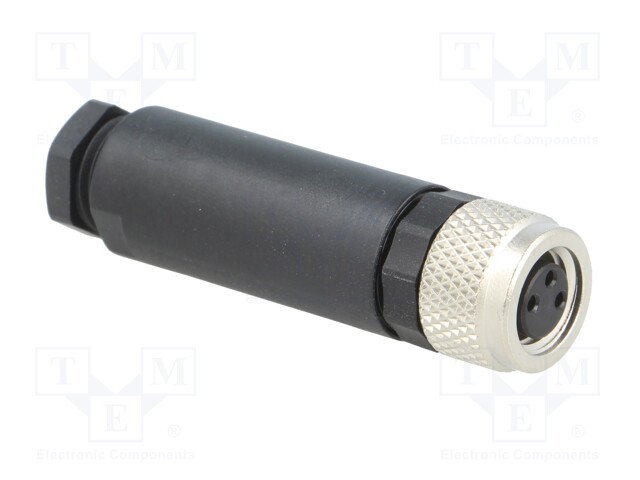

Connector: M8; female; PIN: 3; straight; for cable; plug; 4A; 60V

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 1803870000 SAIB-M8-3P
    Manufacturer: WEIDMÜLLER
    Manufacturer code: 1803870000 SAIB-M8-3P
    • IP rating
    • Electrical mounting
    • Connector
    • Kind of connector
    • Mechanical mounting
    • Type of connector
    • Number of pins
    • Maximum current
    • Rated voltage
    • Cable external diameter
    • Locking system
    • Locking system
    • Spatial orientation

    15.22 € 15.22 € (wo VAT) 15.22 EUR

    15.22 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Connector: M8; female; PIN: 3; straight; for cable; plug; 4A; 60V

    IP rating IP67
    Electrical mounting screw terminal
    Connector plug
    Kind of connector female
    Mechanical mounting for cable
    Type of connector M8
    Number of pins 3
    Maximum current 4A
    Rated voltage 60V
    Cable external diameter 3.5...5mm
    Locking system internal thread, threaded joint
    Spatial orientation straight
