Transformer: encapsulated; 2.8VA; 400VAC; 12V; 235mA; PCB; IP00

    Multiples: 1.0
    Minimum quantity: 1.0
    Product code: 16012-9890
    Manufacturer: BREVE TUFVASSONS
    Manufacturer code: 16012-9890
    • Mounting
    • IP rating
    • B dimension
    • A dimension
    • Conform to the norm
    • Conform to the norm
    • Conform to the norm
    • C dimension
    • Type of transformer
    • A1 dimension
    • Primary voltage
    • Secondary voltage 1
    • Thermal class
    • Primary winding terminals
    • Secondary winding terminals
    • A2 dimension
    • Power VA

    7.10 € 7.10 € (wo VAT) 7.1000000000000005 EUR

    7.10 €

    This combination does not exist.

    Add to Cart

    Product downloads

    Specification for Transformer: encapsulated; 2.8VA; 400VAC; 12V; 235mA; PCB; IP00

    Mounting PCB
    IP rating IP00

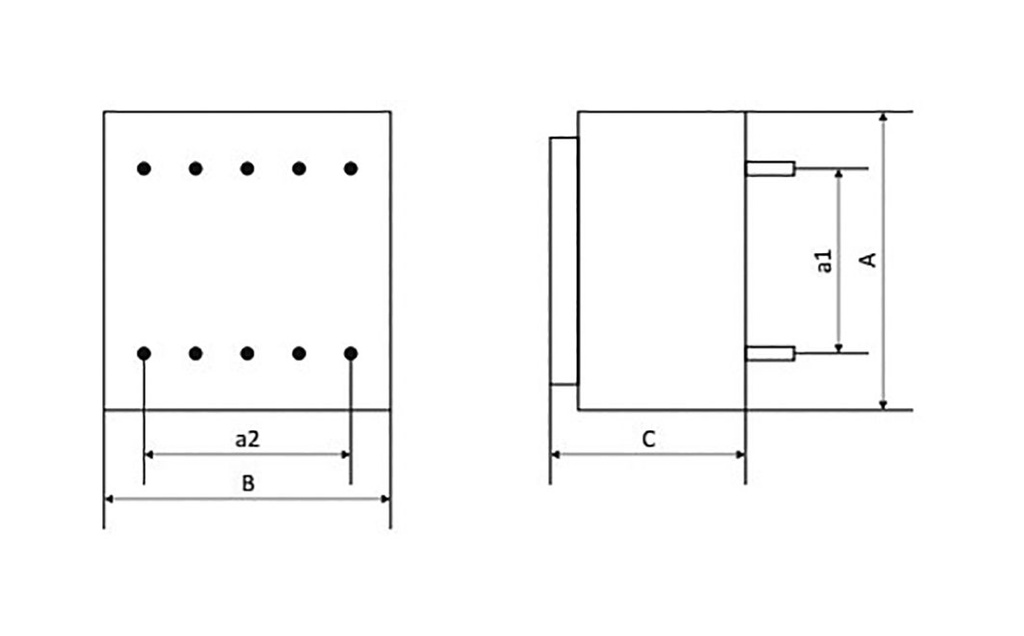

    B dimension 33mm
    A dimension 28mm
    Conform to the norm PN-EN 61558-1:2000, PN-EN 61558-2-1:2000, PN-EN 61558-2-6:2000
    C dimension 35mm
    Type of transformer encapsulated
    A1 dimension 20mm
    Primary voltage 400V AC
    Secondary voltage 1 12V
    Thermal class Ta40B

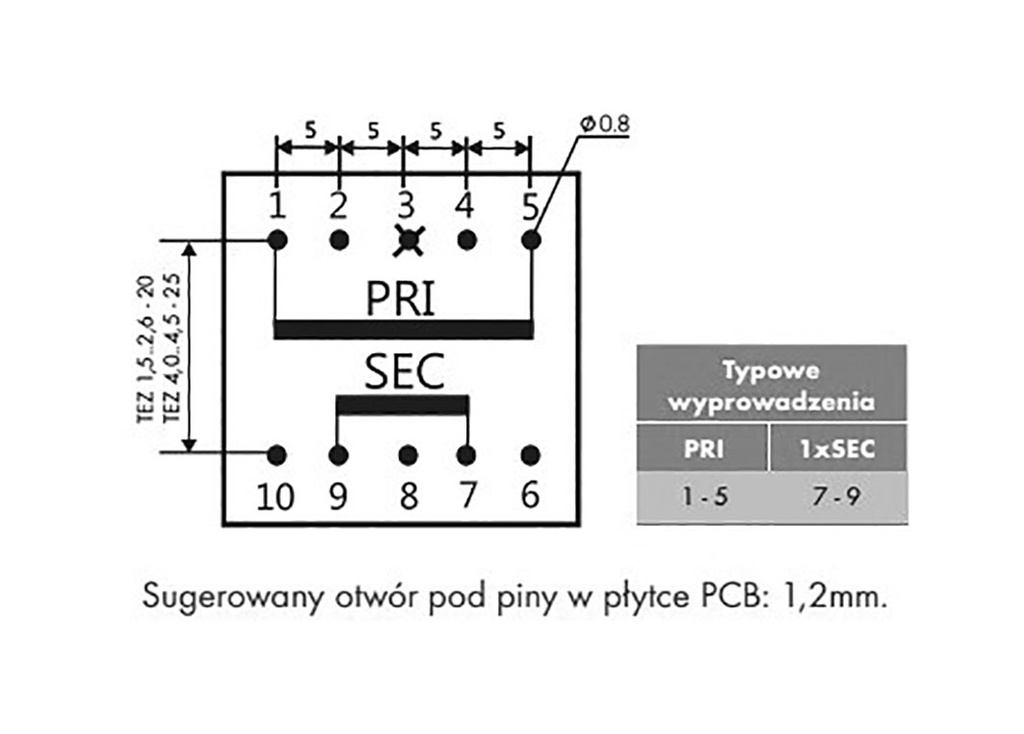

    Primary winding terminals 1-5
    Secondary winding terminals 7-9
    A2 dimension 20mm
    Power VA 2.8VA
