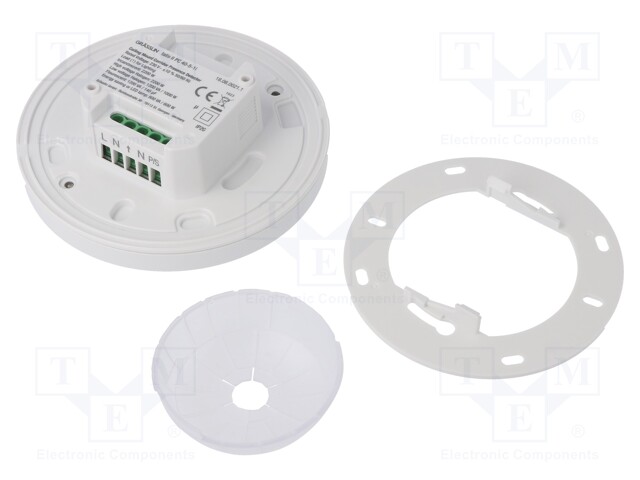

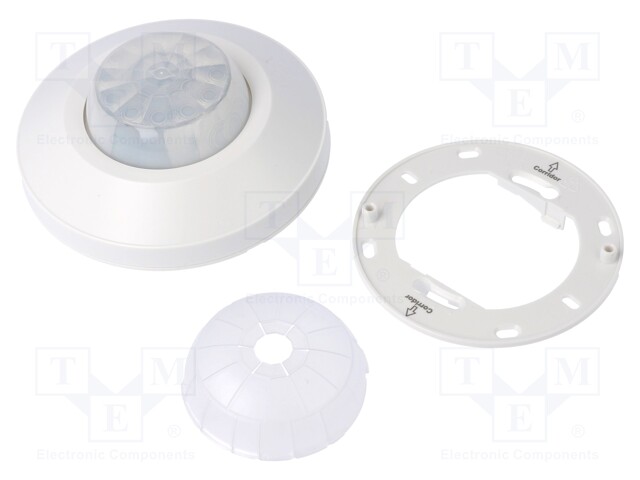

Sensor: human presence; IP20,IP54; 230VAC; Body dim: Ø105x60mm
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
TALIS II PC 40-5-1I
Tootja: GRASSLIN
Tootja tootekood: TALIS II PC 40-5-1I
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAC8FCE6D528C40C7&compId=18.06.0021.1-EN.pdf?ci_sign=7354438f34978cce280b8115ede8f9d780de43b6
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAC8FF3F0D0F900C7&compId=18.06.0021.1-INS-EN.pdf?ci_sign=a9554a0b3206d01a64865c6f5ea4c4a2a97b19b0
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAC900164F0C940C7&compId=Talis-II-brochure-EN.pdf?ci_sign=2641c7f23e86c39c9b4b2152cf34328d6958d672
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAC90051658C860C7&compId=Talis-II-flyer-EN.pdf?ci_sign=318fc956fd492a9bc8121b83392cf8e60e601f9f
Spetsifikatsioon tootele Sensor: human presence; IP20,IP54; 230VAC; Body dim: Ø105x60mm
| Mounting | ceiling |
| Supply voltage | 230V AC |
| Operating temperature | -20...45°C |
| IP rating | IP20, IP54 |
| Body dimensions | Ø105x60mm |
| Viewing angle | 360° |
| Number of outputs | 1 |
| Kind of sensor | PIR |
| Type of sensor | human presence |
| Switching capacity | 2.2kW |
| Counting range | 30s...30min |
| Field of observation | 5x40m |
