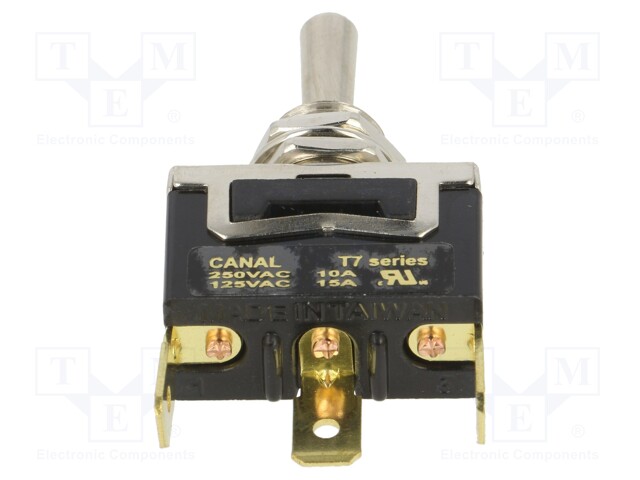

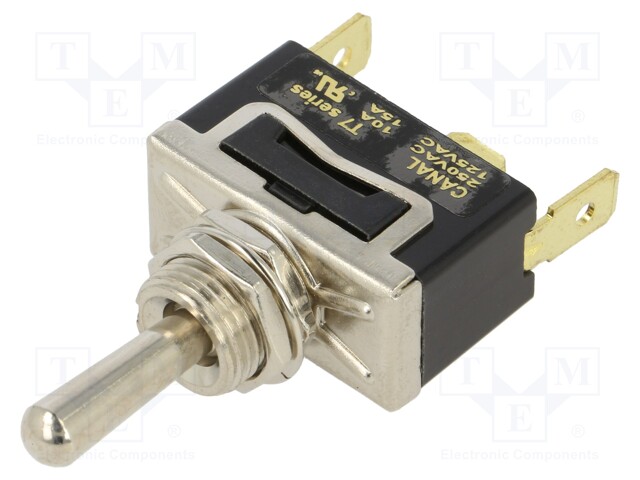

Switch: toggle; Pos: 3; SP3T; (ON)-OFF-(ON); 10A/250VAC; 1.5kV; T7

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: T7A17A3B2H5R
    Tootja: CANAL ELECTRONIC
    Tootja tootekood: T7A17A3B2H5R
    • Type of switch
    • Number of positions
    • Leads
    • Contact material
    • Max. contact resistance
    • Panel cutout diameter
    • Illumination
    • Min. insulation resistance
    • Test voltage
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator material
    • Knob height
    • Kind of toggle

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: toggle; Pos: 3; SP3T; (ON)-OFF-(ON); 10A/250VAC; 1.5kV; T7

    Type of switch toggle
    Number of positions 3
    Leads 6,3x0,8mm connectors
    Contact material silver alloy
    Max. contact resistance 20mΩ
    Panel cutout diameter 12mm
    Illumination none
    Min. insulation resistance 200MΩ
    Test voltage 1.5kV
    Contacts configuration SP3T
    AC contacts rating @R 10A / 250V AC
    Switching method (ON)-OFF-(ON)
    Stable positions number 1
    Actuator material brass
    Knob height 17mm
    Kind of toggle round
