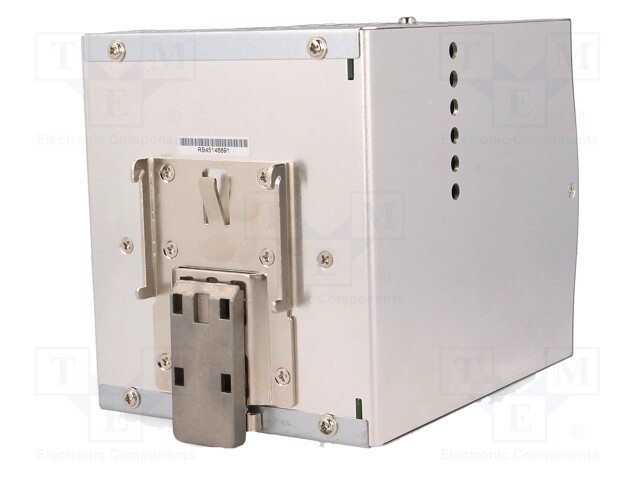

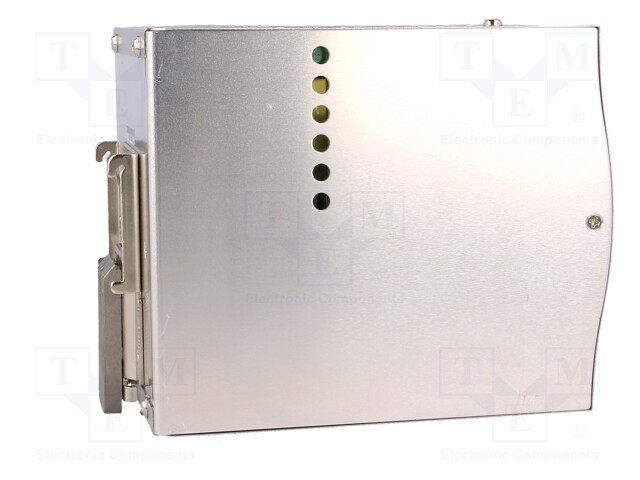

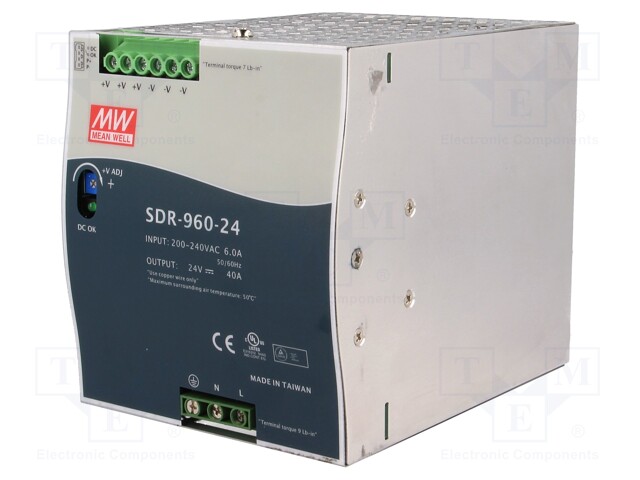

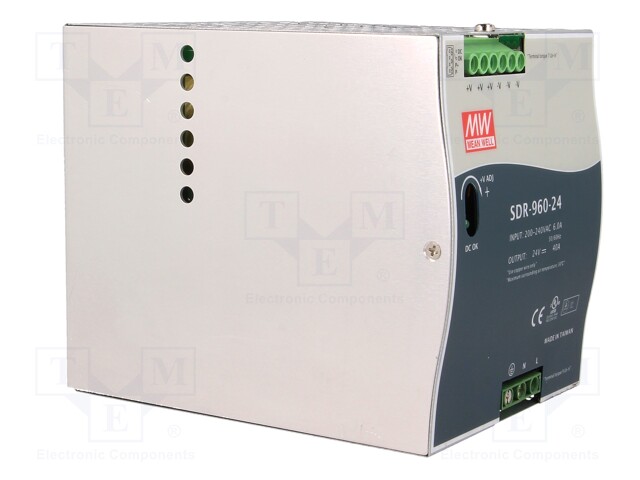

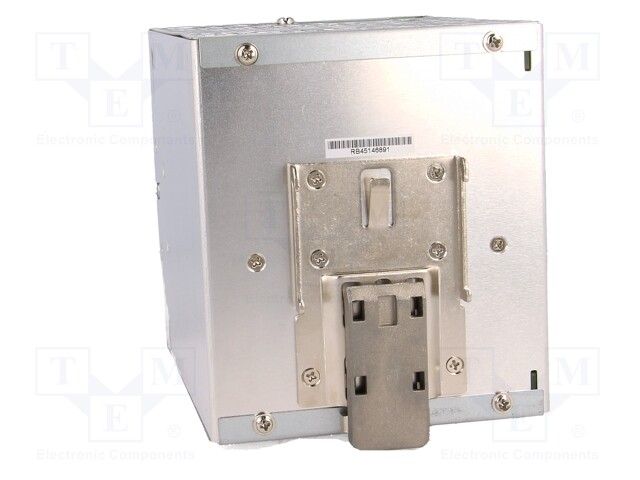

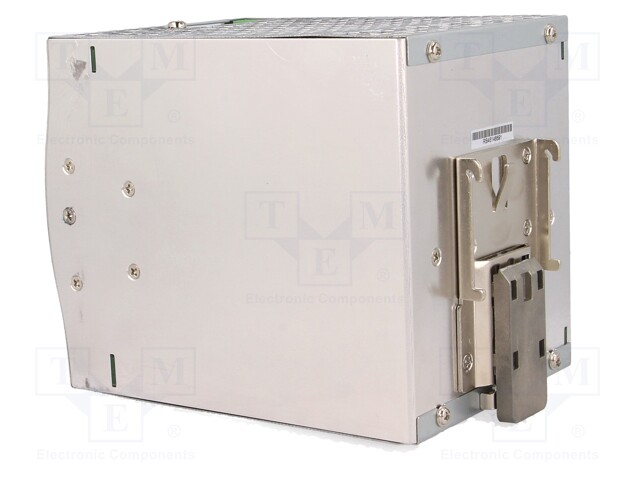

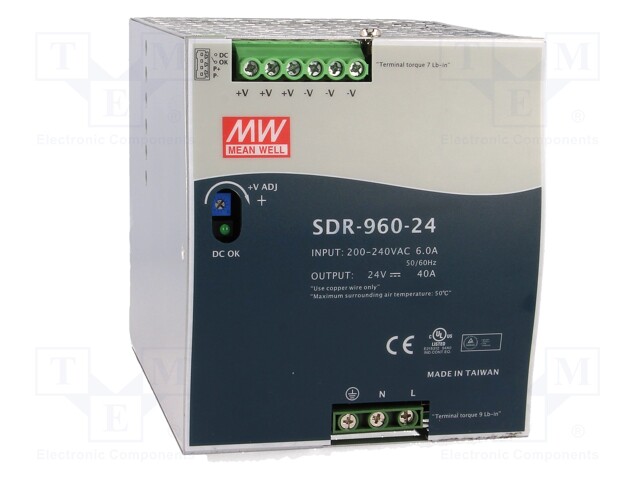

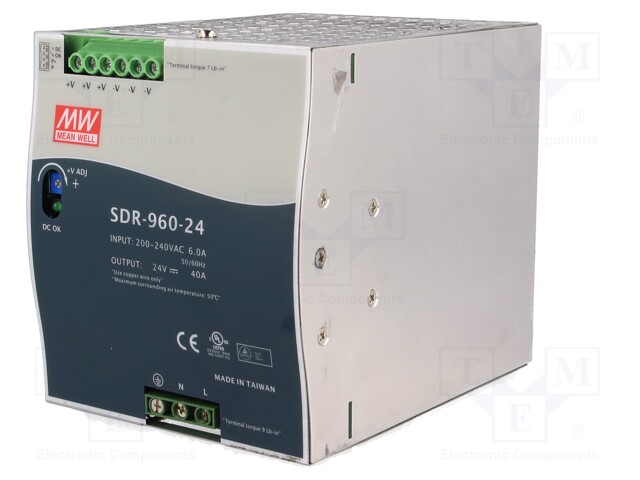

Power supply: switched-mode; 960W; 24VDC; 24÷28VDC; 40A; 2.47kg
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
SDR-960-24
Tootja: MEAN WELL
Tootja tootekood: SDR-960-24
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED3ADB227B8F3C021EC&compId=SDR-960-EN.PDF?ci_sign=c87df1d80d817dd16bc382649156aae67ae4d288
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69E990BD1387EAFA8&compId=Short_Form_din.pdf?ci_sign=4a2af7d7cff1d8d967fcaabc249b97f9dbe19d22
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c
Spetsifikatsioon tootele Power supply: switched-mode; 960W; 24VDC; 24÷28VDC; 40A; 2.47kg
| Output current | 40A |
| Mounting | for DIN rail mounting |
| Supply voltage | 180...264V AC, 254...370V DC |
| Power | 960W |
| Operating temperature | -30...70°C |
| Protection | overheating, anti-overload, anti-overvoltage, short circuit protection |
| Type of power supply | switched-mode |
| Series | SDR-960 |
| Body dimensions | 110x125.2x150mm |
| Output voltage | 24V DC |
| Additional functions | active PFC, output voltage correctness indication (NO contact) |
| Efficiency | 94% |
| Number of outputs | 1 |
| Electrical connection | terminal block |
| Kind of power supply | for DIN rail |
| Kind of case | 214A |
