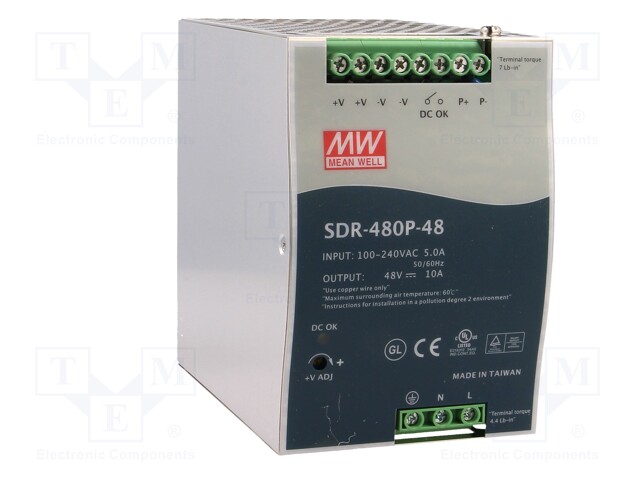

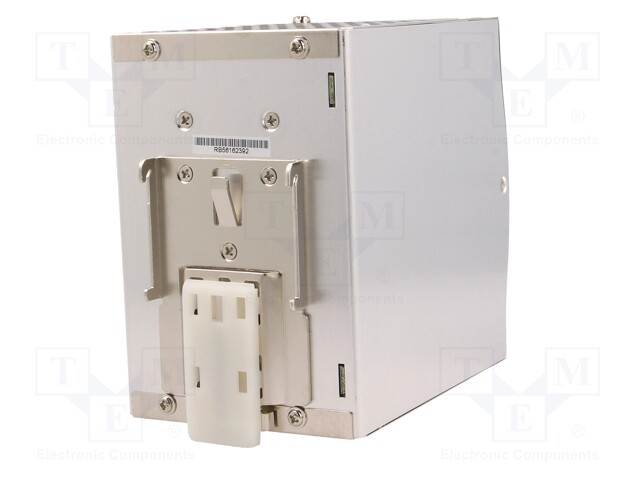

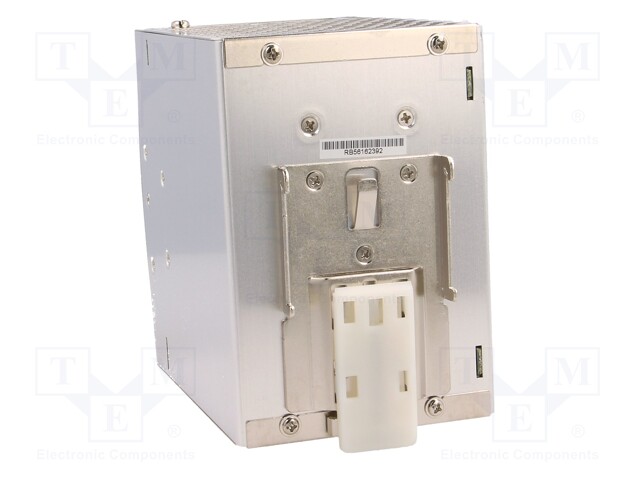

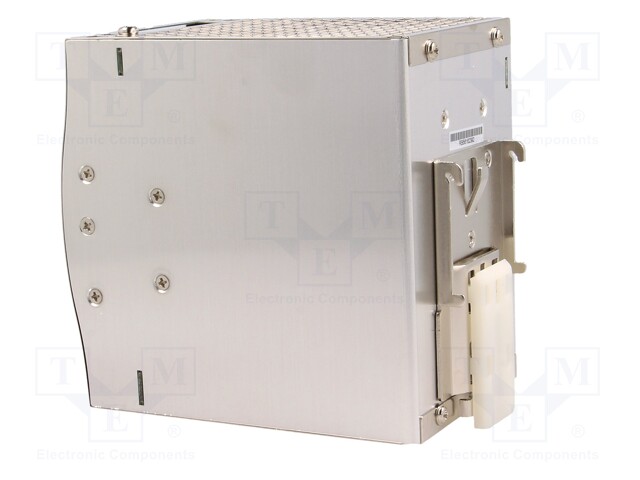

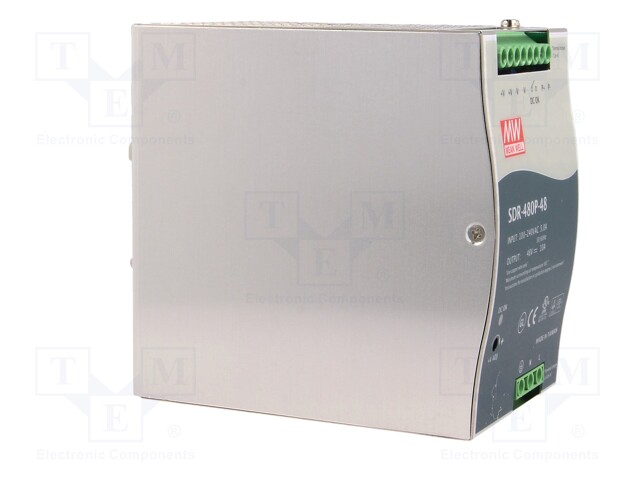

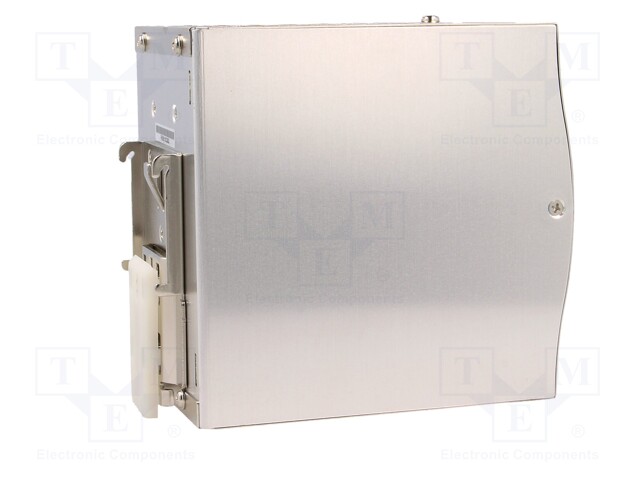

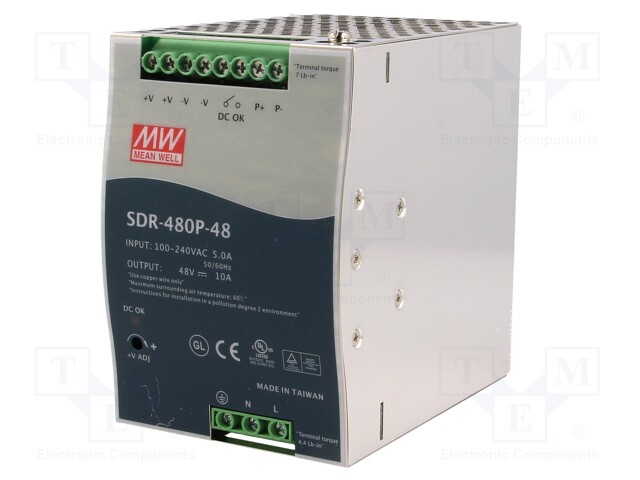

Power supply: switched-mode; 480W; 48VDC; 48÷55VDC; 10A; 90÷264VAC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
SDR-480P-48
Tootja: MEAN WELL
Tootja tootekood: SDR-480P-48
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB71502DFCC1DC&compId=INB-ZAS-DIN-EN.pdf?ci_sign=4f05ad7e6bee992fce562e9c2b0560fdc0cebdad
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69E990BD1387EAFA8&compId=Short_Form_din.pdf?ci_sign=4a2af7d7cff1d8d967fcaabc249b97f9dbe19d22
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c
- pVersion=0046&contRep=ZT&docId=E2A80DAEC038C4F19A99005056AB752F&compId=SDR-480P-spec.pdf?ci_sign=ca9ff9c98e5bf1c0e13143952a59a4ce8c7d843b
Spetsifikatsioon tootele Power supply: switched-mode; 480W; 48VDC; 48÷55VDC; 10A; 90÷264VAC
| Output current | 10A |
| Mounting | for DIN rail mounting |
| Supply voltage | 90...264V AC, 127...370V DC |
| Power | 480W |
| Operating temperature | -25...70°C |
| Protection | overheating, anti-overload, anti-overvoltage, short circuit protection |
| Type of power supply | switched-mode |
| Series | SDR-480P |

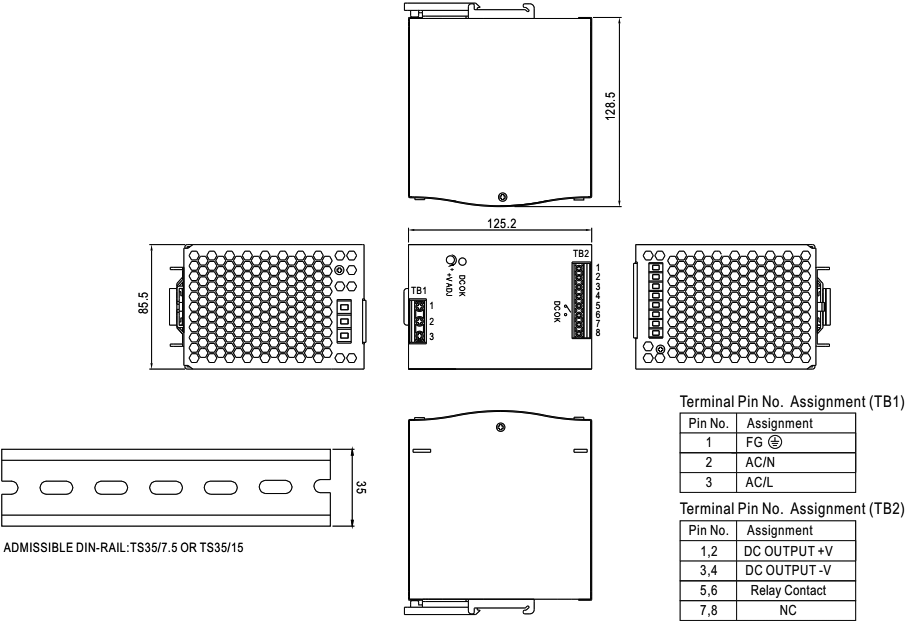

| Body dimensions | 85.5x125.2x128.5mm |
| Output voltage | 48V DC |
| Additional functions | active PFC, output voltage correctness indication (NO contact), parallel function |
| Efficiency | 94% |
| Number of outputs | 1 |
| Electrical connection | terminal block |
| Kind of power supply | for DIN rail |
| Kind of case | 984A |
