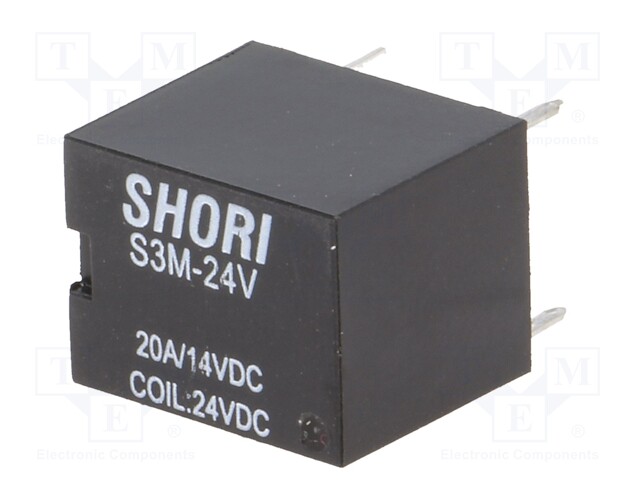

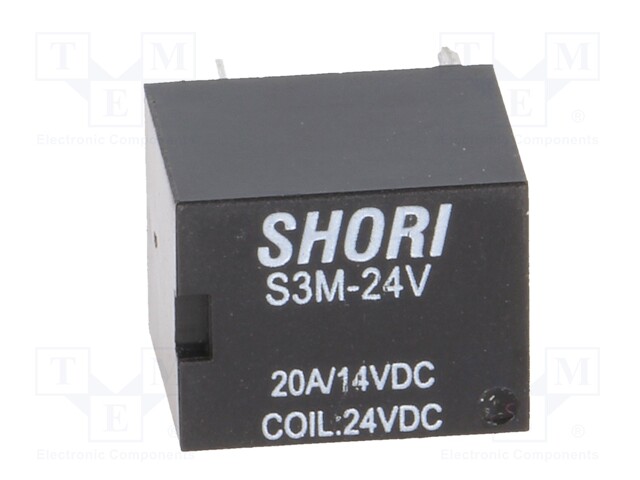

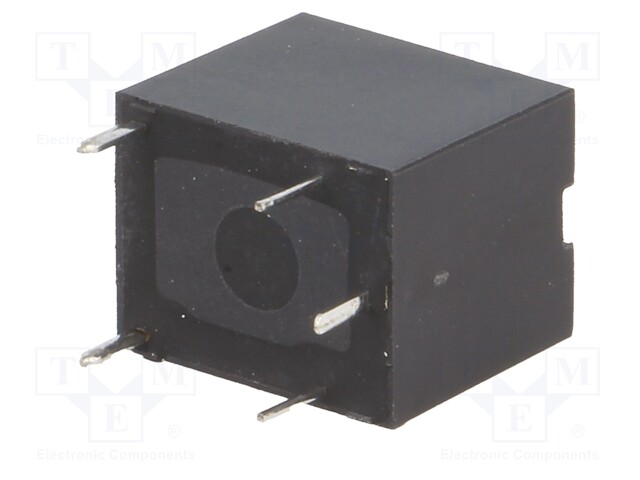

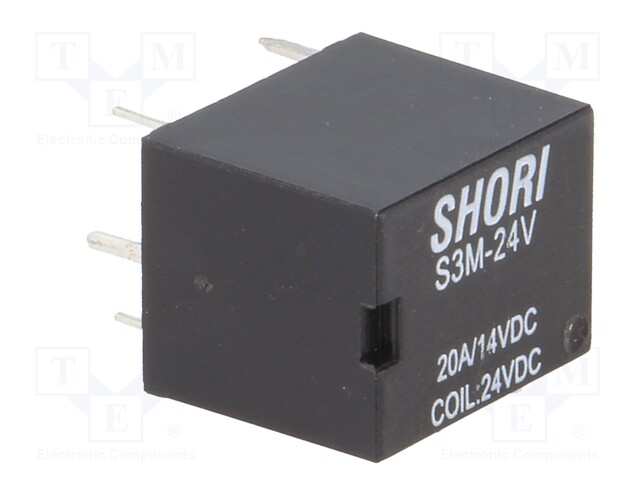

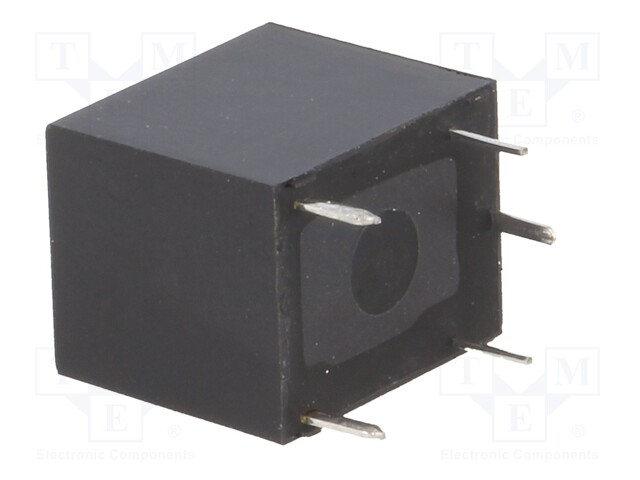

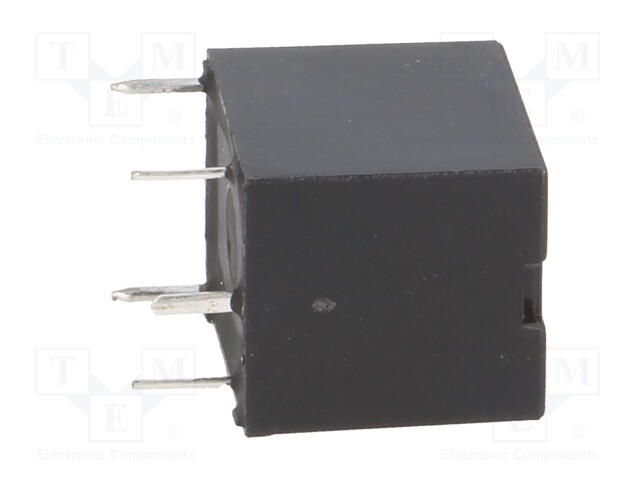

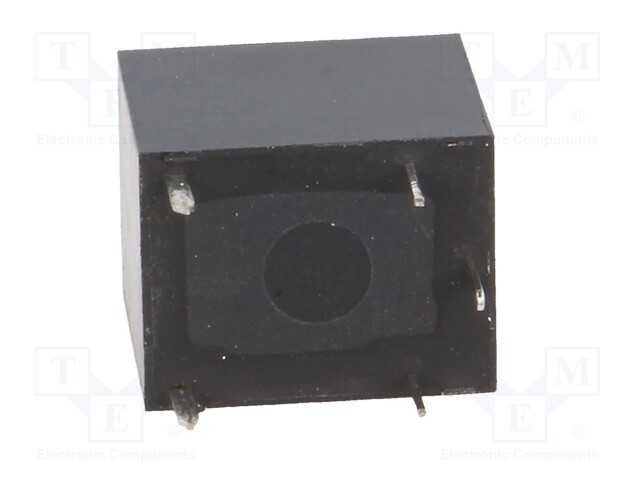

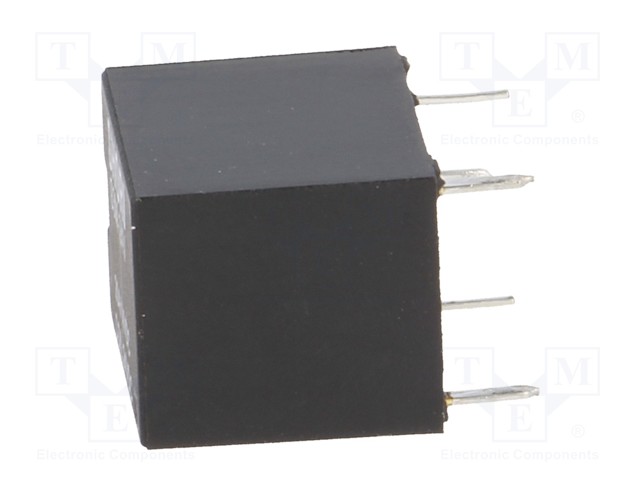

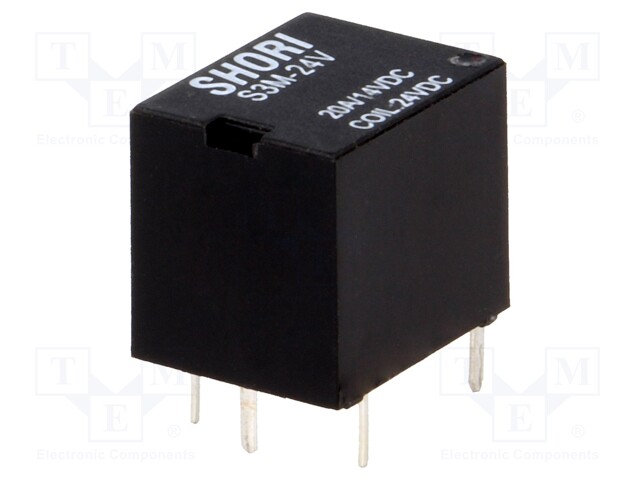

Relay: electromagnetic; SPDT; Ucoil: 24VDC; 20A/14VDC; max.14VDC

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: S3M-24-1C
    Tootja: SHORI ELECTRIC
    Tootja tootekood: S3M-24-1C
    • Mounting
    • Operating temperature
    • Terminal pitch
    • Body dimensions
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • Contact current max.
    • Relay variant
    • Type of relay
    • Coil power consumption
    • Operate time
    • Release time
    • Coil current

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Relay: electromagnetic; SPDT; Ucoil: 24VDC; 20A/14VDC; max.14VDC

    Mounting PCB
    Operating temperature -30...55°C
    Terminal pitch 2.5mm
    Body dimensions 15.6x12x13.5mm
    Switched voltage ≤ 14V DC
    Coil resistance 960Ω
    Rated coil voltage 24V DC
    Contacts configuration SPDT
    DC contacts rating @R 20A / 14V DC
    Contact resistance 100MΩ
    Contact current max. 20A
    Relay variant miniature
    Type of relay electromagnetic
    Coil power consumption 0.6W
    Operate time 10ms
    Release time 5ms
    Coil current 25mA
