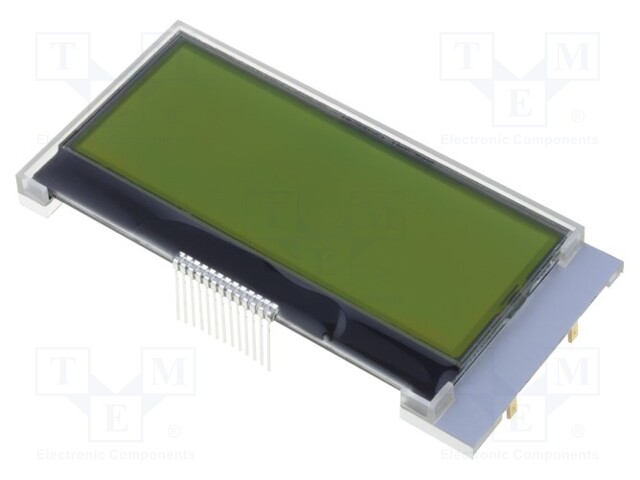

Display: LCD; alphanumeric; COG,STN Positive; 20x4; yellow-green
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
RX2004A-YHW
Tootja: RAYSTAR OPTRONICS
Tootja tootekood: RX2004A-YHW
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE80A1B5BCC66760D5&compId=displays.txt?ci_sign=eaf78fd912bebb1d94d1d350f52cc04fb0aa44fb
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED48CB77DBACB3221EC&compId=Raystar_backlight%26color%20matching.JPG?ci_sign=e80807c6986c04b0fcce7e0d8f5e39f58a3db2ed
- pVersion=0046&contRep=ZT&docId=005056AB90B41ED9B3C43FC4626B60C4&compId=RX2004A-YHW.pdf?ci_sign=00530b7587f65b3ebf5726f6b1d959fc34b8f714
Spetsifikatsioon tootele Display: LCD; alphanumeric; COG,STN Positive; 20x4; yellow-green
| Contacts pitch | 1.27mm |
| Number of pins | 13 |
| Dimensions | 74.3x36.4x6mm |
| Type of pin configuration | 1x13 |
| Number of characters (columns x lines) | 20x4 |
| Kind of display | alphanumeric |
| Display technology | COG, STN Positive |
| Backgr. colour | yellow-green |
| Backlight colour | white |
| Illumination | LED |
| Window dimensions (H x W) | 60.5x22.2mm |
| Kind of controller | SSD1803AM1Z |
| Type of display | LCD |
| Digit height | 4.67mm |
| Character width | 2.45mm |
