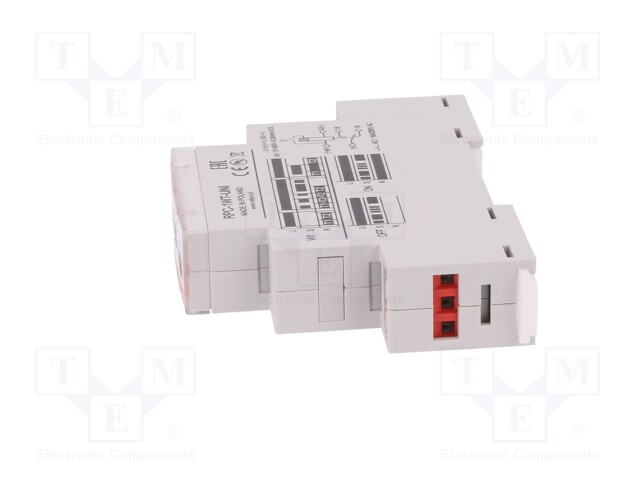

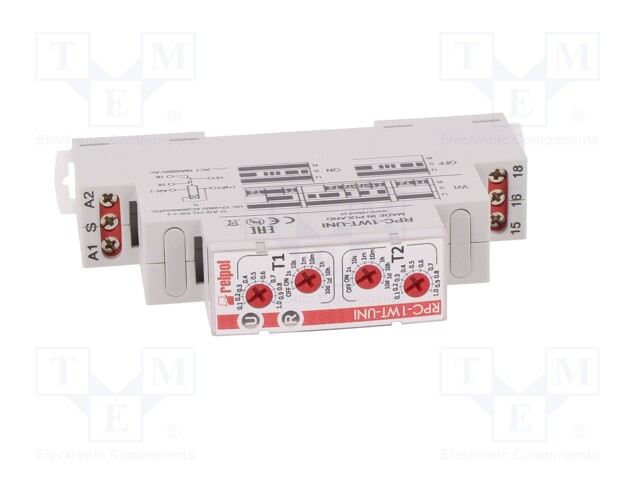

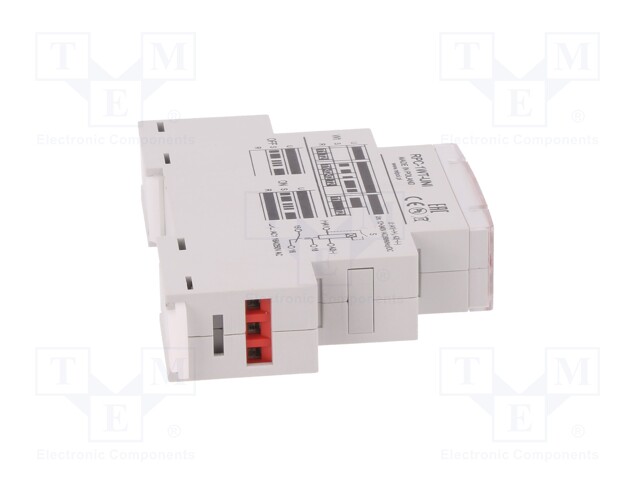

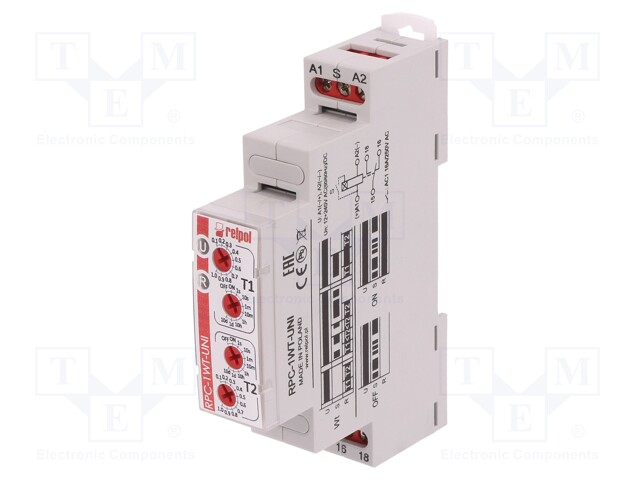

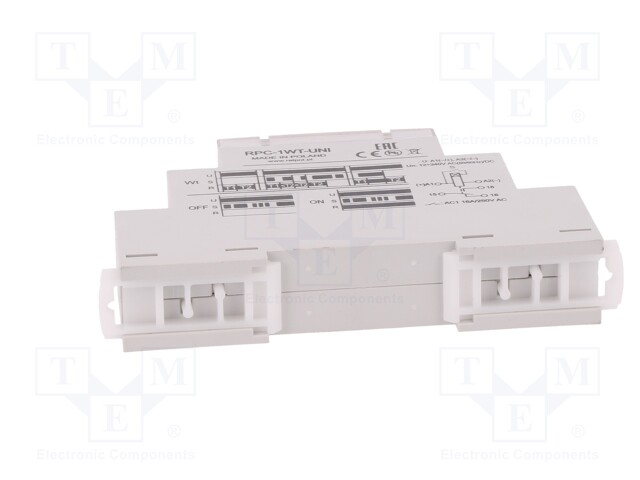

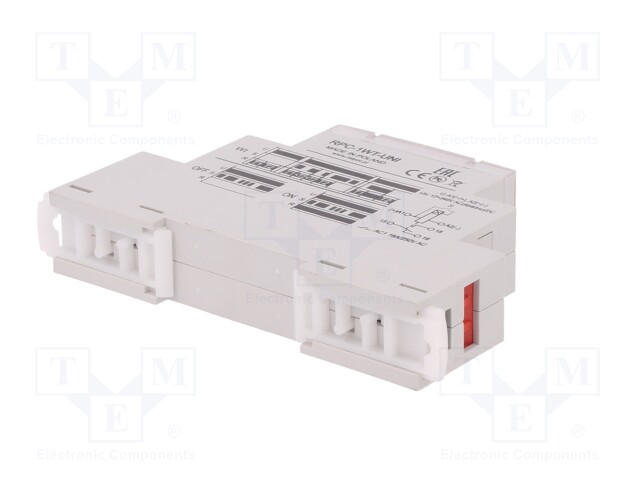

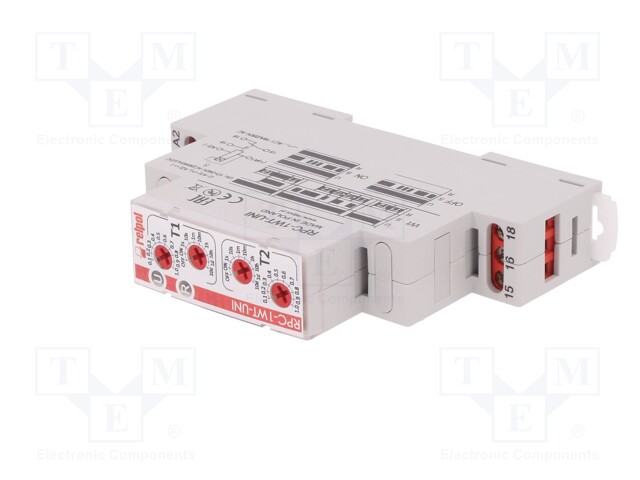

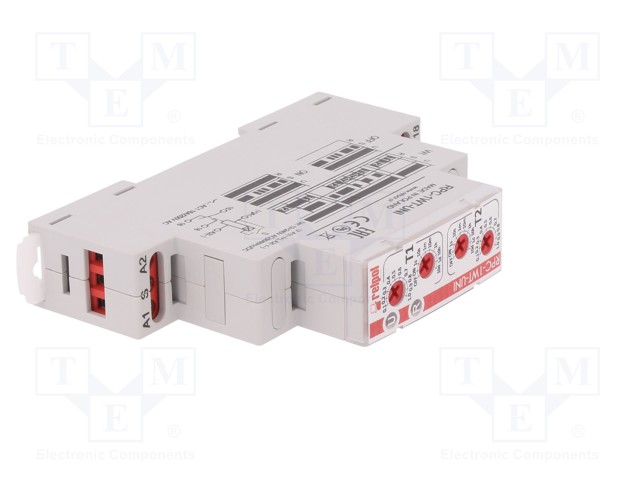

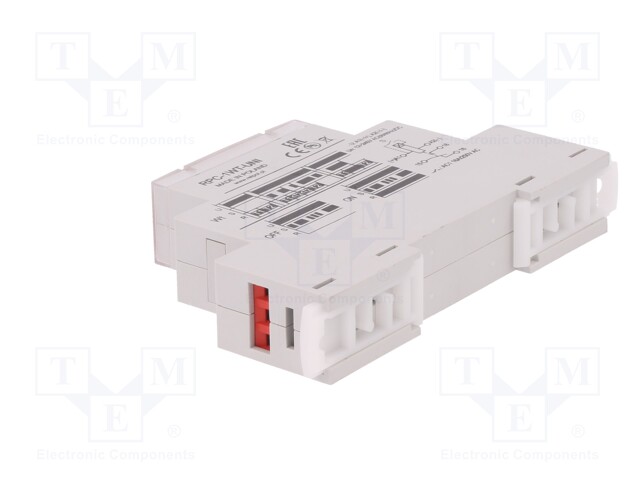

Timer; 1s÷10days; SPDT; 24VDC/16A,250VAC/16A; 12÷240VAC; DIN; IP20

Kordarv: 1.0
Minimum quantity: 1.0
Tootekood: RPC-1WT-UNI
Tootja: RELPOL
Tootja tootekood: RPC-1WT-UNI
  • Mounting
  • Supply voltage
  • Supply voltage
  • Operating temperature
  • IP rating
  • Number of pins
  • Type of module
  • Body dimensions
  • Kind of output
  • Indication
  • Electrical connection
  • Counting range
  • Counter operation modes
  • Counter operation modes
  • Relay series
  • number of operation modes
  • OEM number
  • The additional control inputs

0,00 € 0,00 € (KM-TA) 0.0 EUR

0,00 €

Seda kombinatsiooni ei eksisteeri.

Lisa ostukorvi

Product downloads

Spetsifikatsioon tootele Timer; 1s÷10days; SPDT; 24VDC/16A,250VAC/16A; 12÷240VAC; DIN; IP20

Mounting for DIN rail mounting
Supply voltage 12...240V AC, 12...240V DC
Operating temperature -20...50°C
IP rating IP20
Number of pins 6
Type of module timer
Body dimensions 90x17.5x64.6mm
Kind of output SPDT
Indication LED
Electrical connection screw terminals
Counting range 1s...10days
Counter operation modes independent settings of T1 and T2 times, switching on the set time after pulse of contact S
Relay series RPC
number of operation modes 1
OEM number 863191
The additional control inputs STOP
