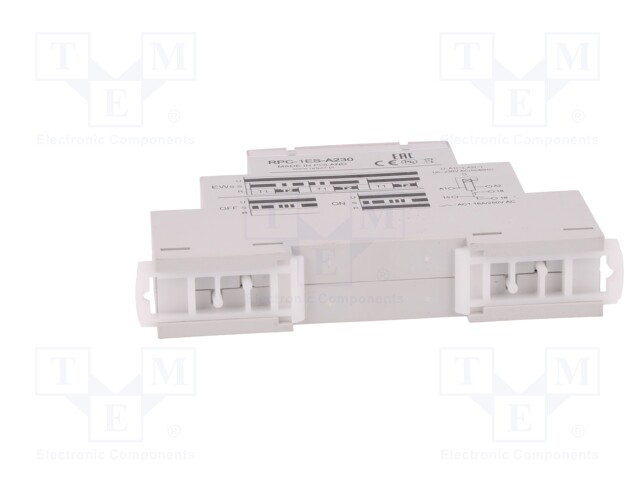

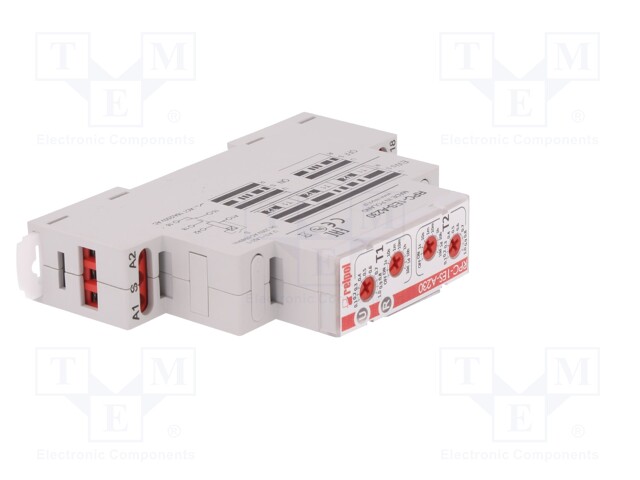

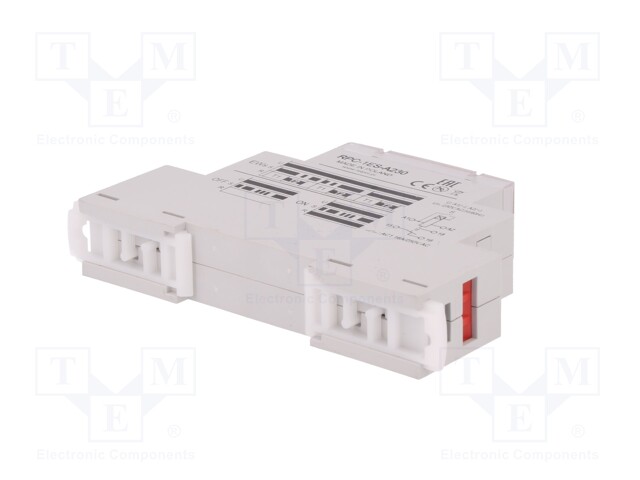

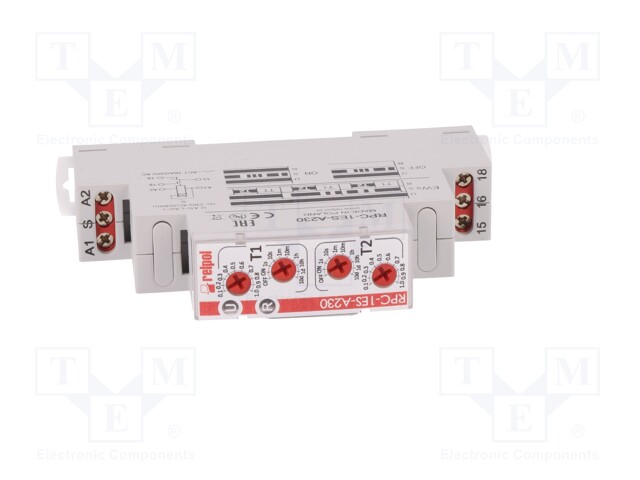

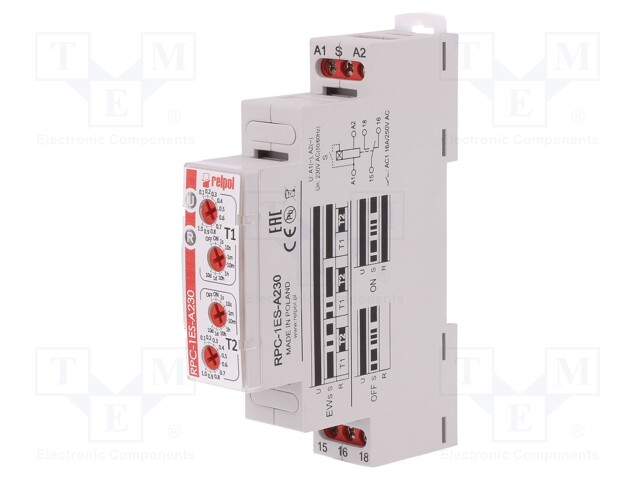

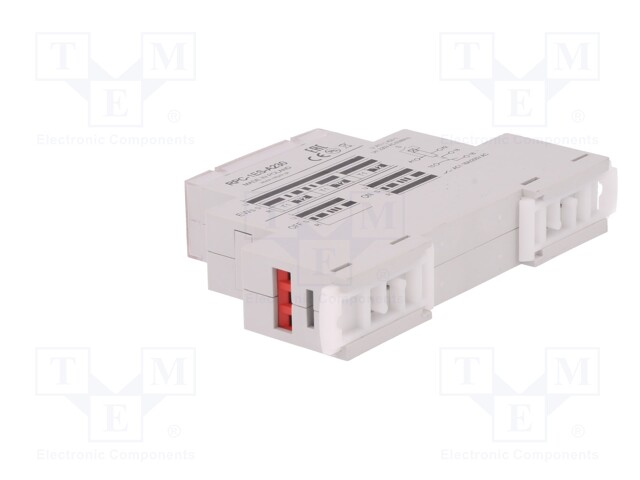

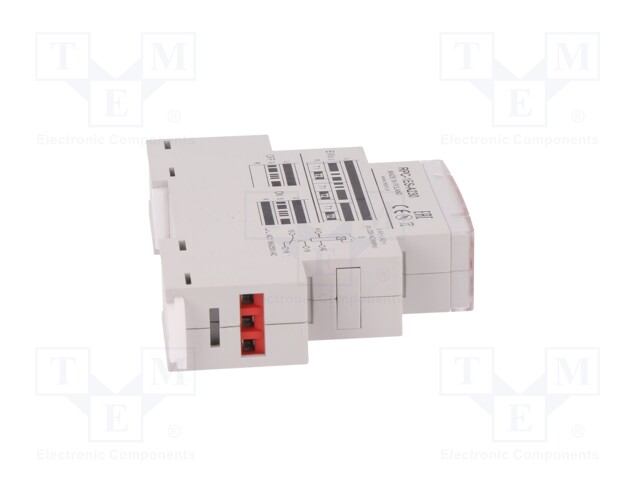

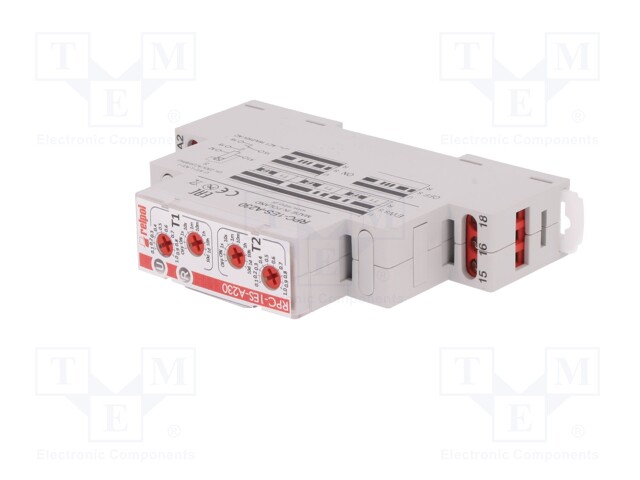

Timer; 1s÷10days; SPDT; 24VDC/16A,250VAC/16A; 230VAC; DIN; PIN: 6
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
RPC-1ES-A230
Tootja: RELPOL
Tootja tootekood: RPC-1ES-A230
Product downloads
Spetsifikatsioon tootele Timer; 1s÷10days; SPDT; 24VDC/16A,250VAC/16A; 230VAC; DIN; PIN: 6
| Mounting | for DIN rail mounting |
| Supply voltage | 230V AC |
| Operating temperature | -20...50°C |
| IP rating | IP20 |
| Number of pins | 6 |
| Type of module | timer |
| Body dimensions | 90x17.5x64.6mm |
| Kind of output | SPDT |
| Indication | LED |
| Electrical connection | screw terminals |
| Counting range | 1s...10days |
| Counter operation modes | activation for the set time triggered by the closing of the S contact, delayed switching on, independent settings of T1 and T2 times |
| number of operation modes | 1 |
| OEM number | 863205 |
| The additional control inputs | STOP |
