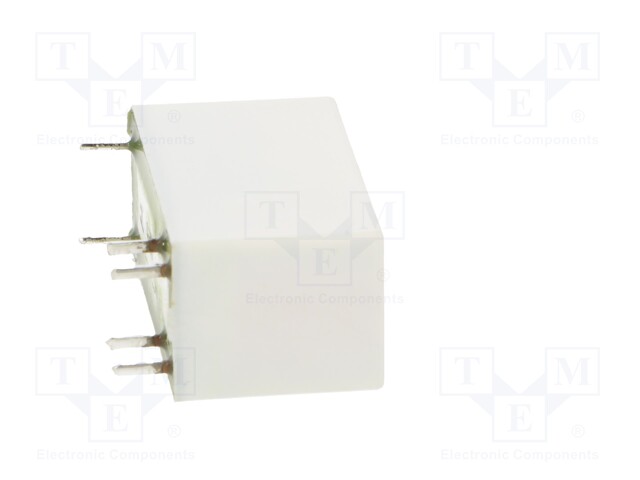

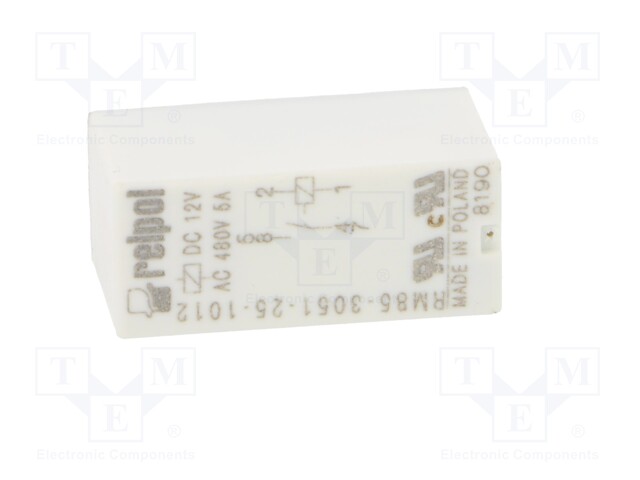

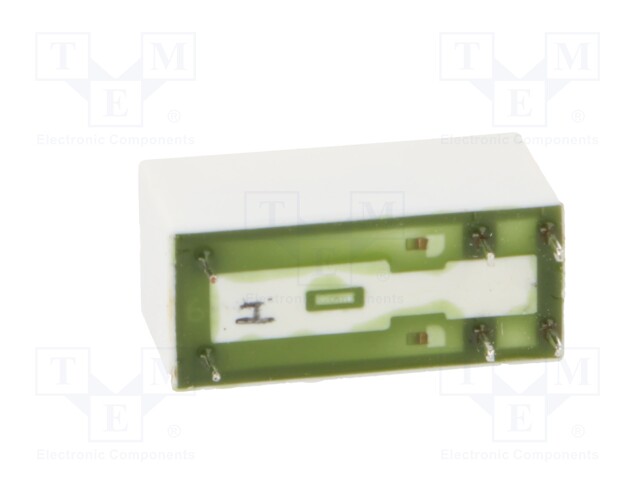

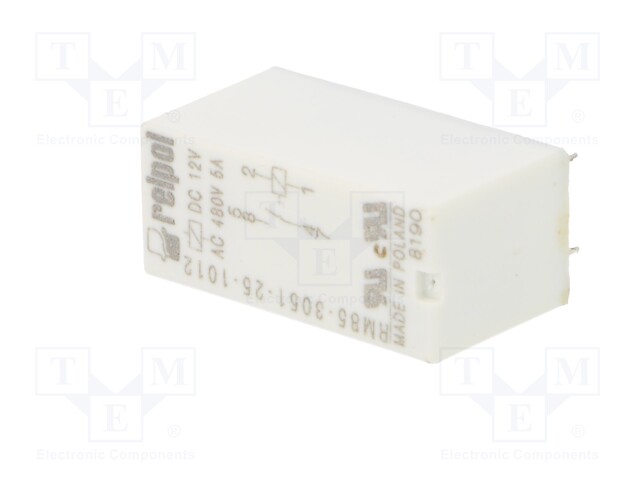

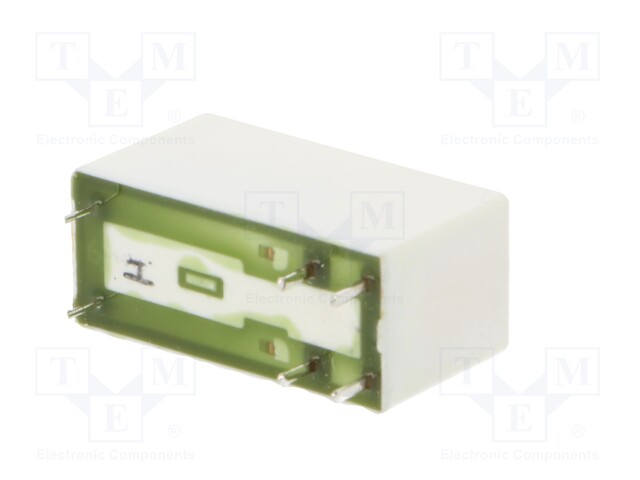

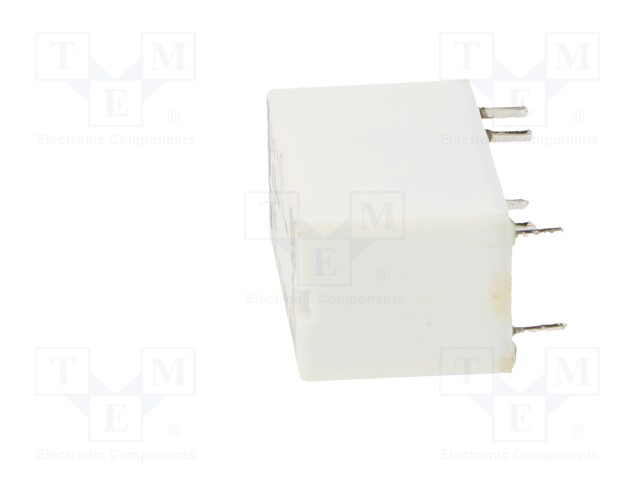

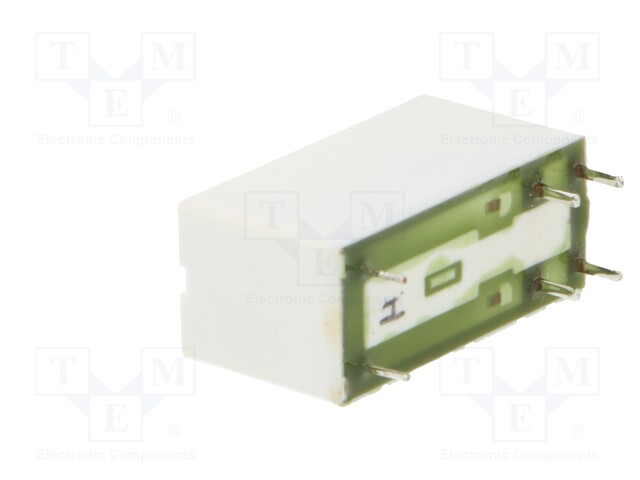

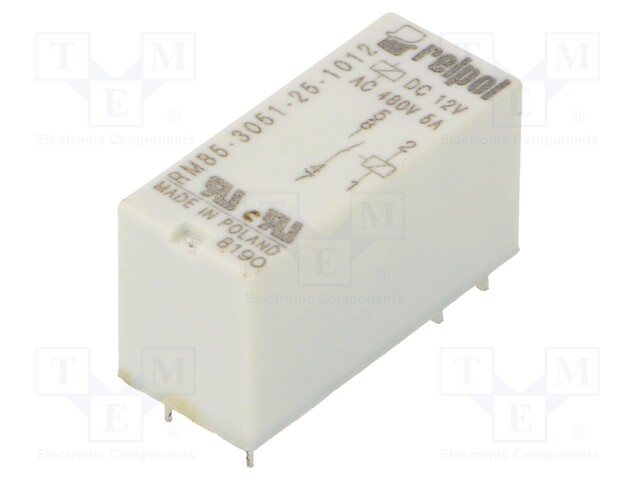

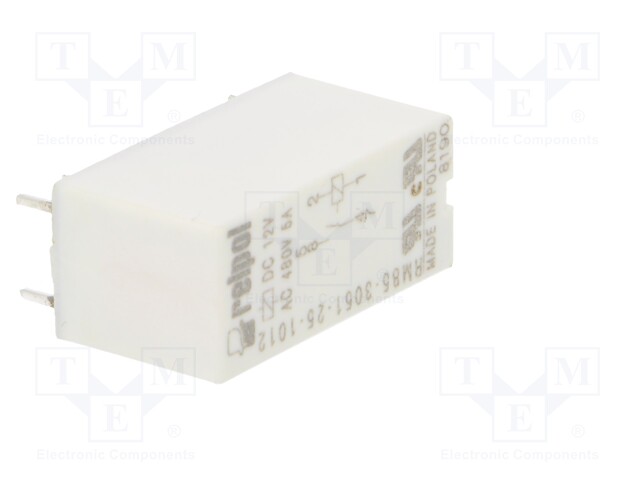

Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; IP40

    Kordarv: 1.0
    Minimum quantity: 1000.0
    Tootekood: RM85-3051-25-1012
    Tootja: RELPOL
    Tootja tootekood: RM85-3051-25-1012
    • Mounting
    • Operating temperature
    • IP rating
    • Contact material
    • Terminal pitch
    • Body dimensions
    • Current rating
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Contact current max.
    • Relay variant
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Operate time
    • Release time

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 12VDC; 16A/250VAC; IP40

    Mounting PCB
    Operating temperature -40...85°C
    IP rating IP40
    Contact material AgSnO<sub>2</sub>
    Terminal pitch 5mm
    Body dimensions 29x12.7x15.7mm
    Current rating 16A
    Switched voltage ≤ 250V DC, ≤ 440V AC
    Coil resistance 360Ω
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 16A / 24V DC
    Contact resistance 100MΩ
    AC contacts rating @R 16A / 250V AC
    Contact current max. 16A
    Relay variant miniature
    Coil voltage max. 30.6V DC
    Type of relay electromagnetic
    Coil voltage min. 8.4V DC
    Operate time 8ms
    Release time 3ms
