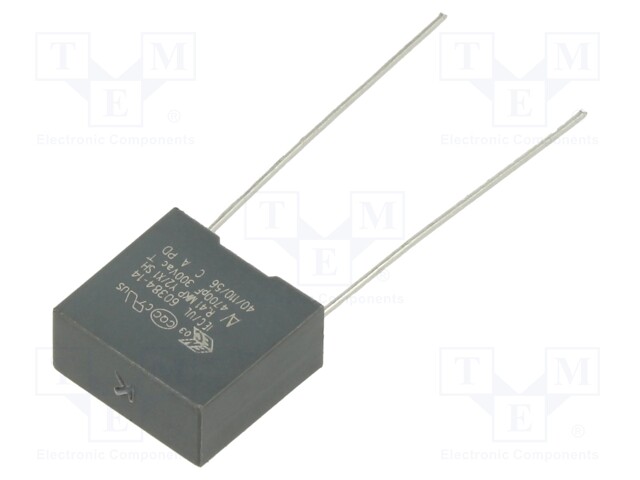

Capacitor: polypropylene; Y2; 4.7nF; 10mm; ±10%; 13x12x6mm; 300VAC
Kordarv:
1200.0
Minimum quantity:
1200.0
Tootekood:
R413F147050T0K
Tootja: KEMET
Tootja tootekood: R413F147050T0K
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCA4F5892ADC6700CE&compId=DISCHARGING_CAPACITORS.txt?ci_sign=9197ac52f93921ac5b72e37292c1cf1d55b23ec9
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDAADF10978C78040C7&compId=KEM_F3120_R41-T_Y2_300.pdf?ci_sign=14368b9ec99dcf7b9ef1ce41519ae249bb903178
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED93CB090B480C7&compId=R413F147050T0K.pdf?ci_sign=ef2621dee21e94c7eb89560cdf3db4c897d3a97f
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDAAED93CCDE1FE20C7&compId=KEM_F3120_R41-T_Y2_300.pdf?ci_sign=5cc61aed16cac646912604e7e049113c475cf82b
Spetsifikatsioon tootele Capacitor: polypropylene; Y2; 4.7nF; 10mm; ±10%; 13x12x6mm; 300VAC
| Mounting | THT |
| Operating temperature | -40...125°C |
| Tolerance | ±10% |
| Terminal pitch | 10mm |
| Body dimensions | 13x12x6mm |
| Max. operating voltage | 300V AC, 1.5kV DC |
| Capacitance | 4.7nF |
| Kind of capacitor | Y2 |
| Type of capacitor | polypropylene |
| Lead length | 25mm |
| Conform to the norm | AEC-Q200 |
| Pulse resistance | 800V/μs |
