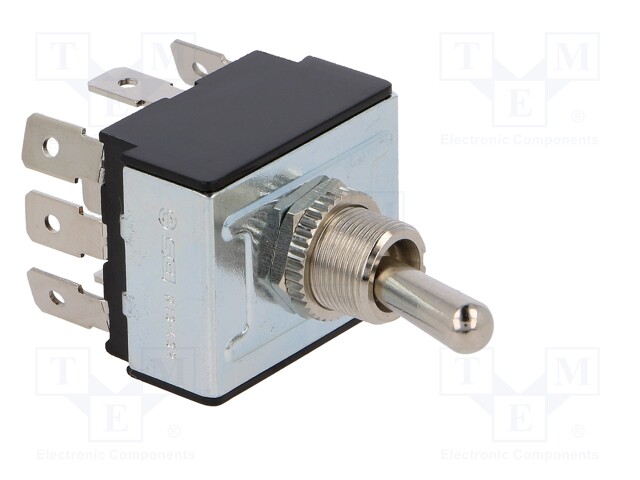

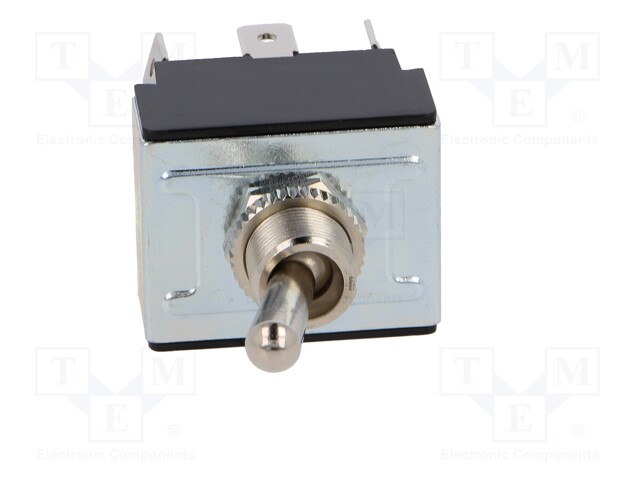

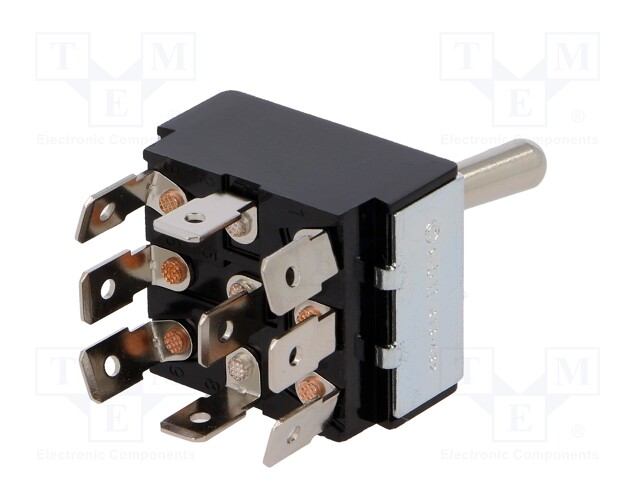

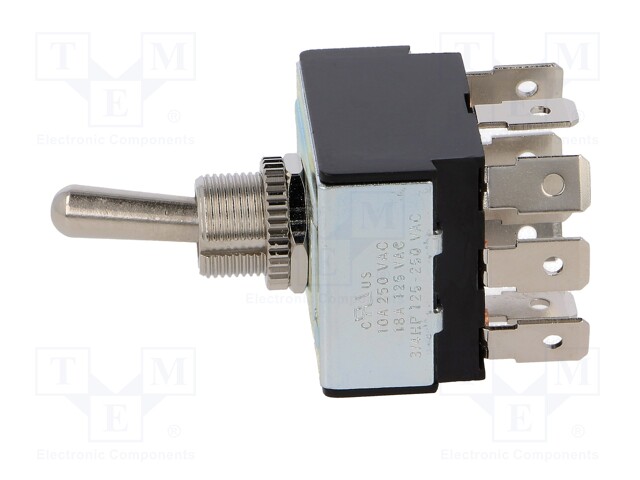

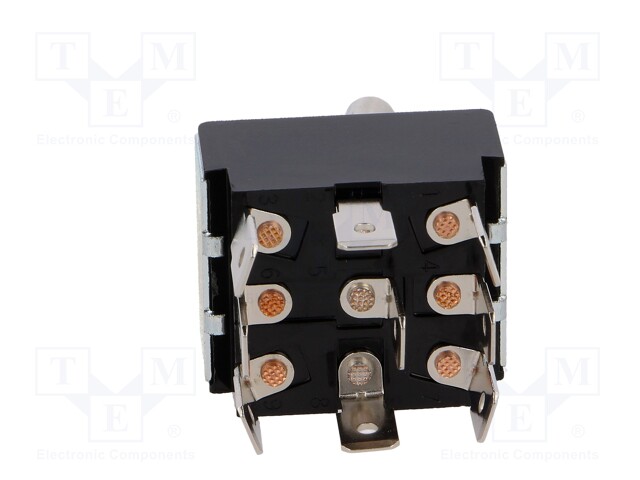

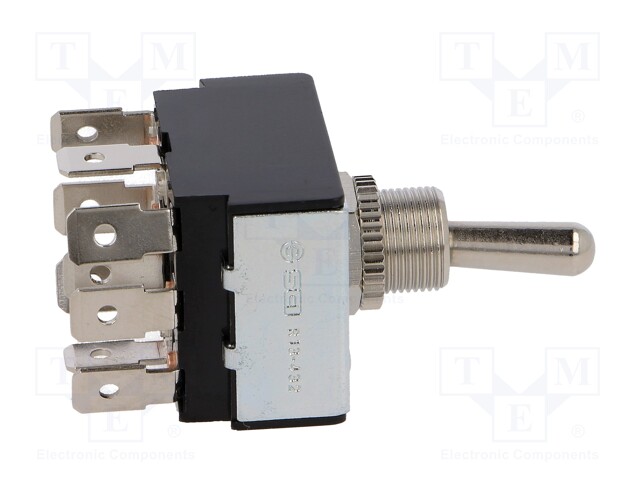

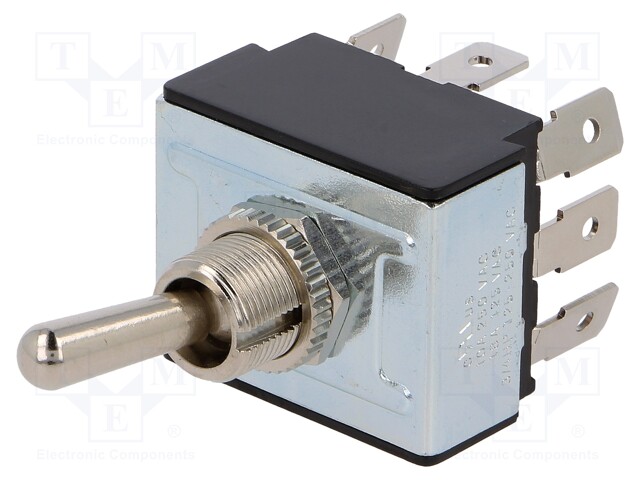

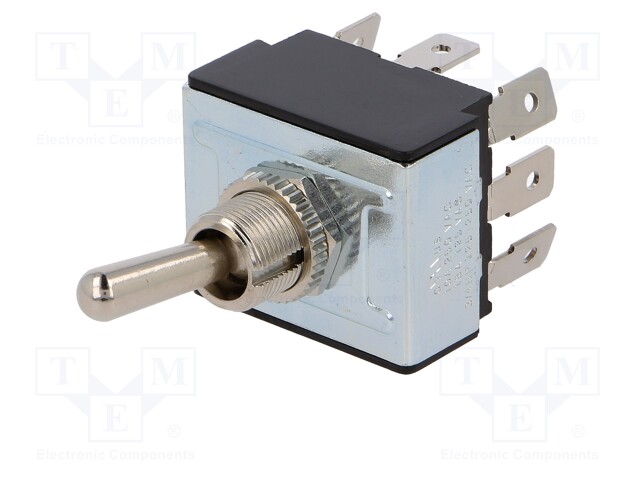

Switch: toggle; Pos: 3; 3P3T; ON-OFF-ON; 10A/250VAC; -25÷70°C; 50mΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R13-432D1-01-HR
    Tootja: SCI
    Tootja tootekood: R13-432D1-01-HR
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Max. contact resistance
    • Body material
    • Flammability rating
    • Mounting hole diameter
    • Body dimensions
    • Panel thickness
    • Terminals plating
    • Test voltage
    • Contacts configuration
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Actuator material
    • Knob height
    • Kind of toggle

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: toggle; Pos: 3; 3P3T; ON-OFF-ON; 10A/250VAC; -25÷70°C; 50mΩ

    Operating temperature -25...70°C
    Type of switch toggle
    Number of positions 3
    Leads 6,3x0,8mm connectors
    Max. contact resistance 50mΩ
    Body material bakelite
    Flammability rating UL94HB
    Mounting hole diameter Ø12mm

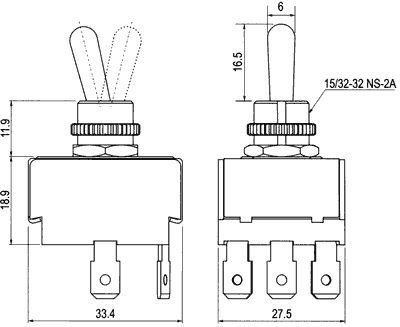

    Body dimensions 33.4x27.5x18.9mm
    Panel thickness ≤ 5mm
    Terminals plating nickel
    Test voltage 1.5kV
    Contacts configuration 3P3T
    AC contacts rating @R 10A / 250V AC
    Switching method ON-OFF-ON
    Stable positions number 3
    Actuator material metal
    Knob height 16.5mm
    Kind of toggle round
