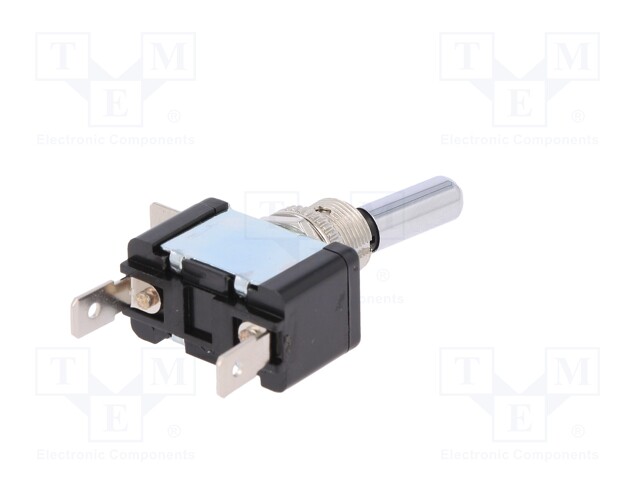

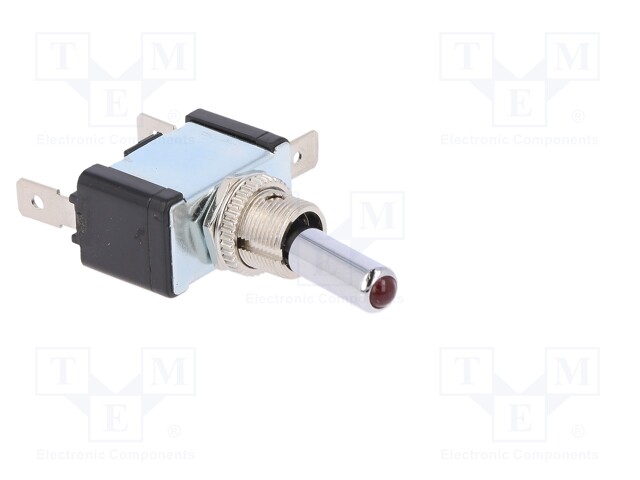

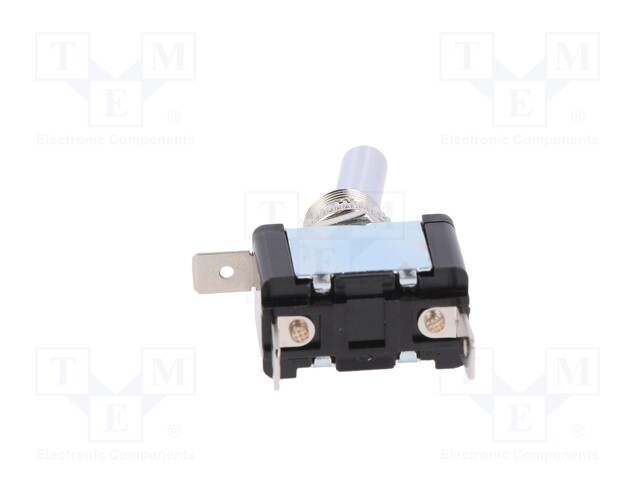

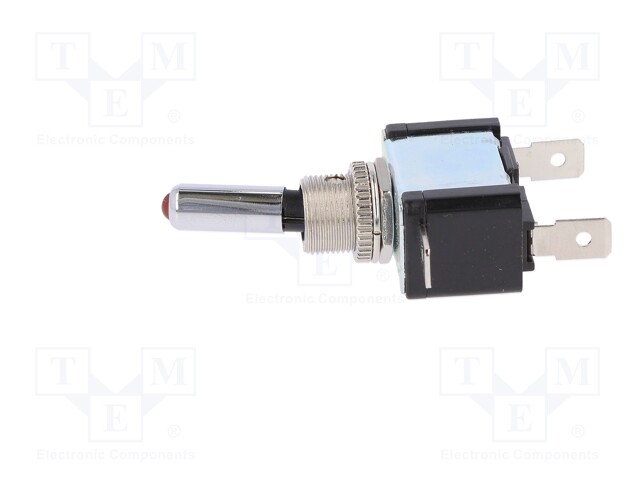

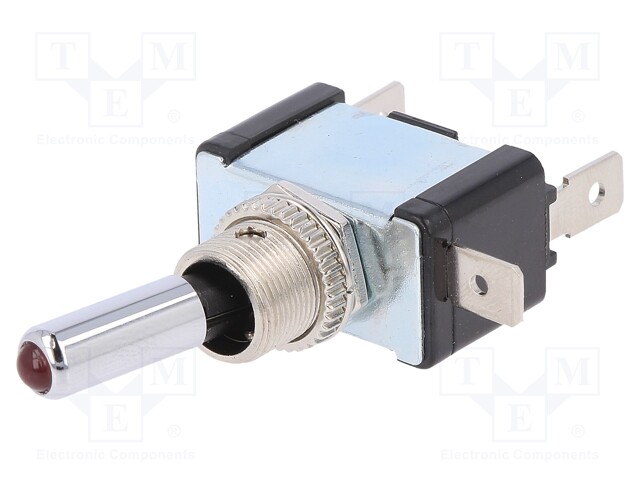

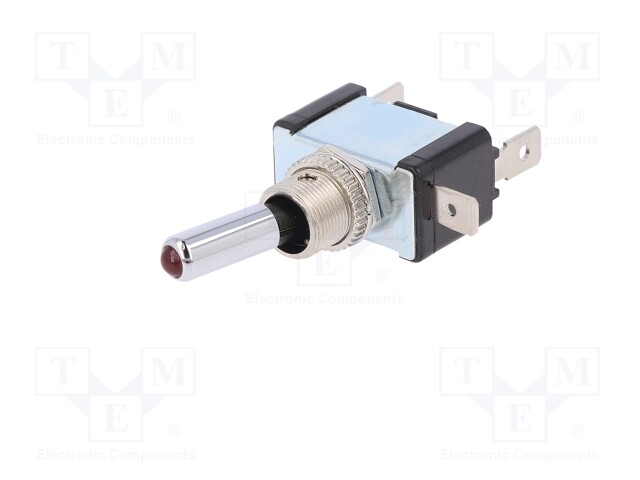

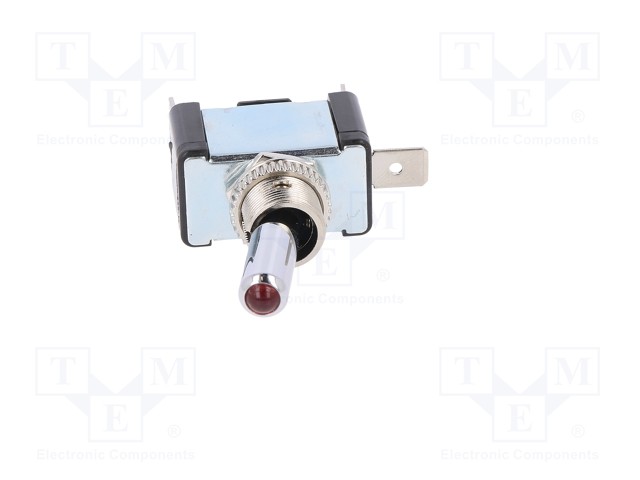

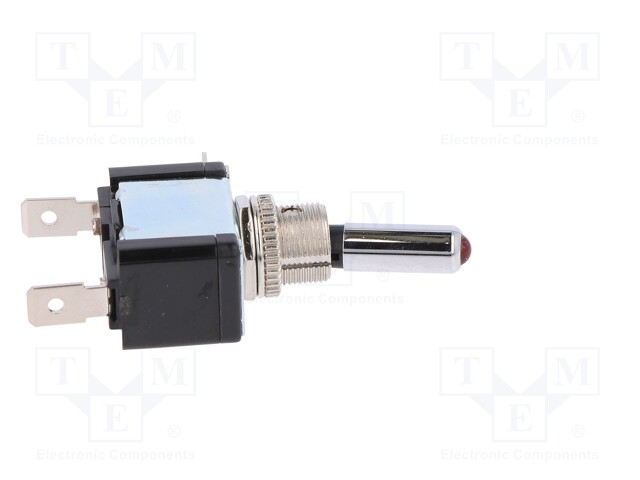

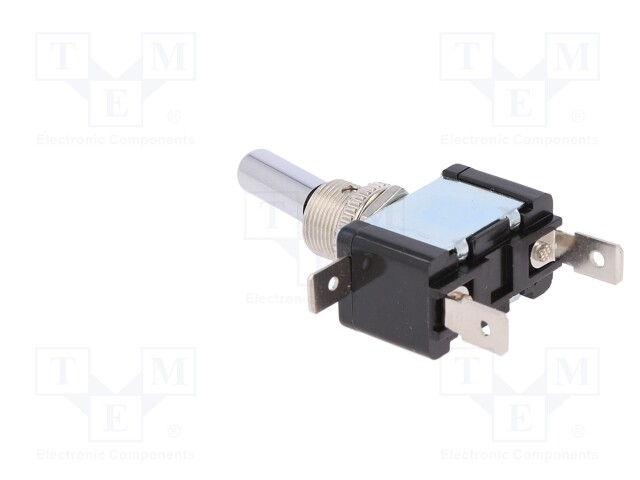

Switch: toggle; Pos: 2; SPST; OFF-ON; 20A/12VDC; -20÷85°C; 50mΩ

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: R13-404AL-01-HWR
    Tootja: SCI
    Tootja tootekood: R13-404AL-01-HWR
    • Operating temperature
    • Type of switch
    • Number of positions
    • Leads
    • Leads
    • Max. contact resistance
    • Mounting hole diameter
    • Body dimensions
    • Panel thickness
    • Backlight colour
    • Illumination
    • Terminals plating
    • Test voltage
    • Contacts configuration
    • DC contacts rating @R
    • Switching method
    • Stable positions number
    • Lever length
    • Actuator material
    • Knob height
    • Kind of toggle

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

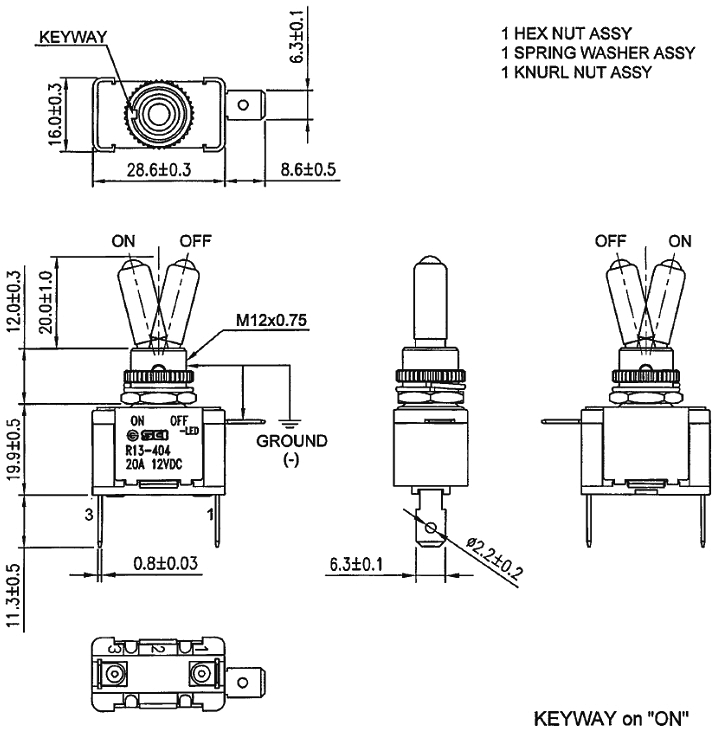

    Spetsifikatsioon tootele Switch: toggle; Pos: 2; SPST; OFF-ON; 20A/12VDC; -20÷85°C; 50mΩ

    Operating temperature -20...85°C
    Type of switch toggle
    Number of positions 2
    Leads 6,3x0,8mm connectors, 6,35x0,8mm connectors
    Max. contact resistance 50mΩ
    Mounting hole diameter Ø12mm
    Body dimensions 28.6x16x19.9mm
    Panel thickness ≤ 6mm
    Backlight colour red
    Illumination LED
    Terminals plating nickel
    Test voltage 1.5kV
    Contacts configuration SPST
    DC contacts rating @R 20A / 12V DC
    Switching method ON-OFF
    Stable positions number 2
    Lever length 20mm
    Actuator material metal
    Knob height 20mm
    Kind of toggle round
