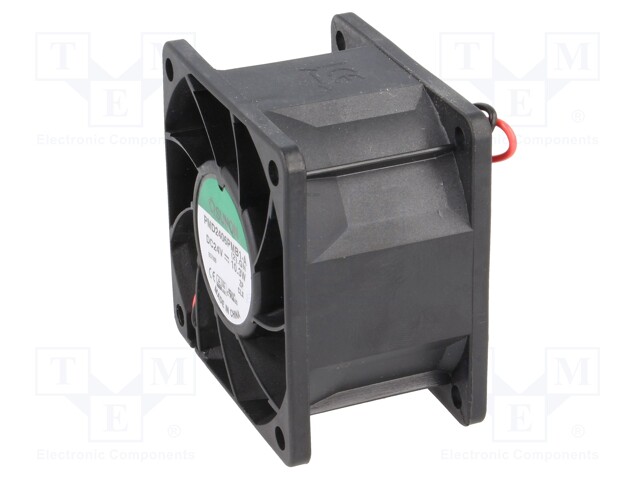

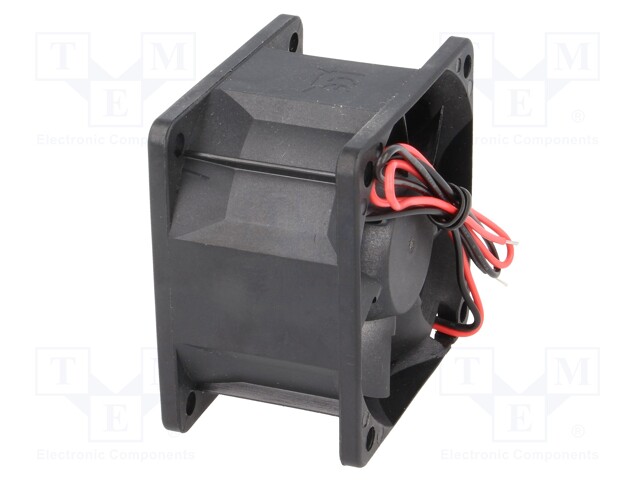

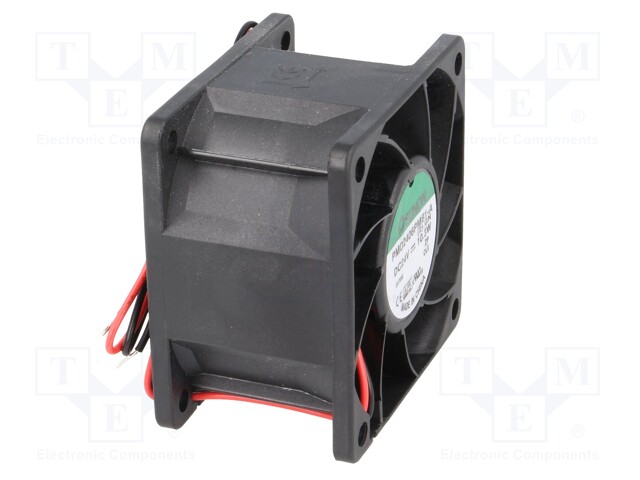

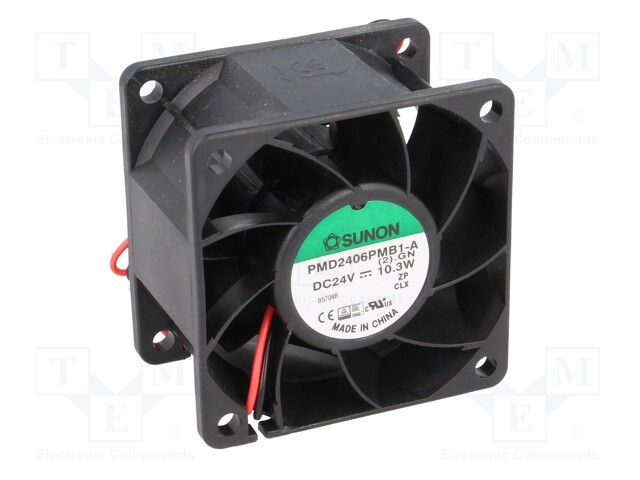

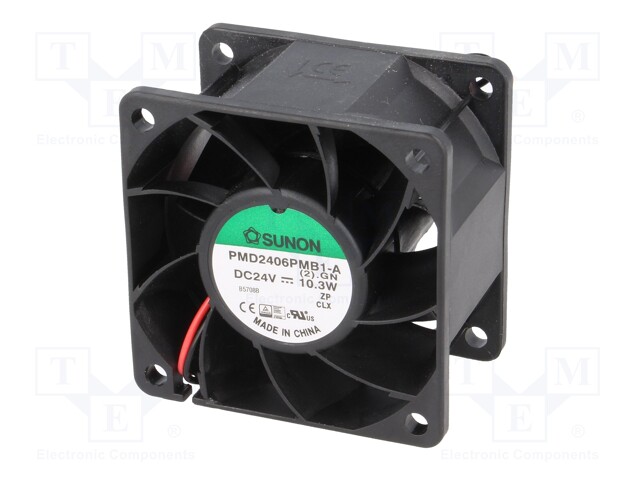

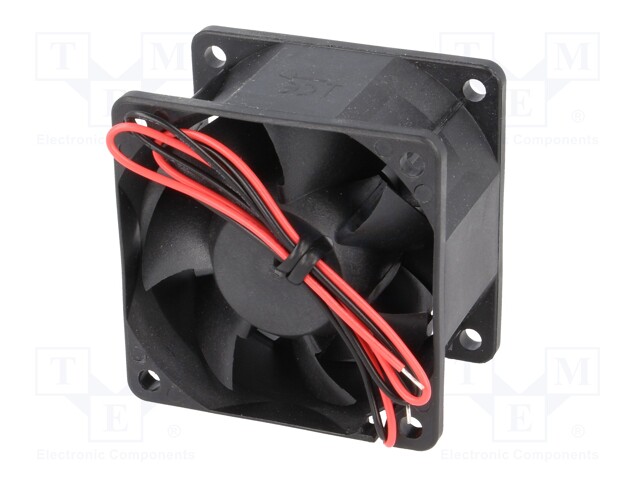

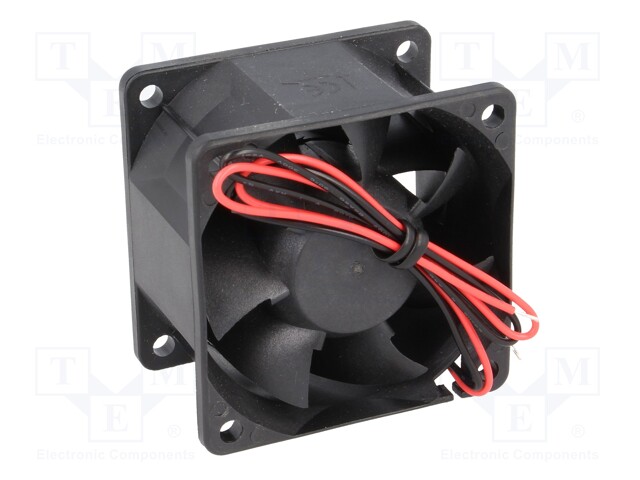

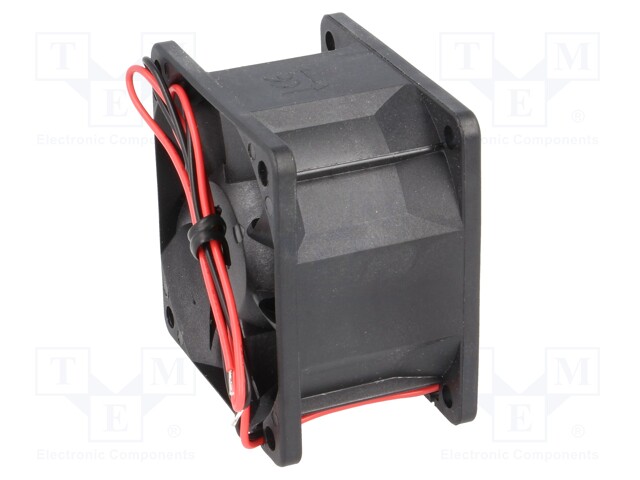

Fan: DC; axial; 24VDC; 60x60x38mm; 95.99m3/h; 56dBA; ball bearing

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PMD2406PMB1-A.(2).GN-1
    Tootja: SUNON
    Tootja tootekood: PMD2406PMB1-A.(2).GN
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Static pressure
    • Noise level

    23,80 € 23,80 € (KM-TA) 23.8 EUR

    23,80 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: DC; axial; 24VDC; 60x60x38mm; 95.99m3/h; 56dBA; ball bearing

    Supply voltage 24V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 0.43A
    Fan efficiency 95.99m<sup>3</sup>/h
    Power consumption 10.3W
    Additional functions Autorestart
    Rotational rate/speed 8000 (±10%)rpm
    Fan motor brushless DC motor
    Fan dimensions 60x60x38mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class E
    Type of fan DC
    Static pressure 23.36mm H<sub>2</sub>O
    Noise level 56dBA
