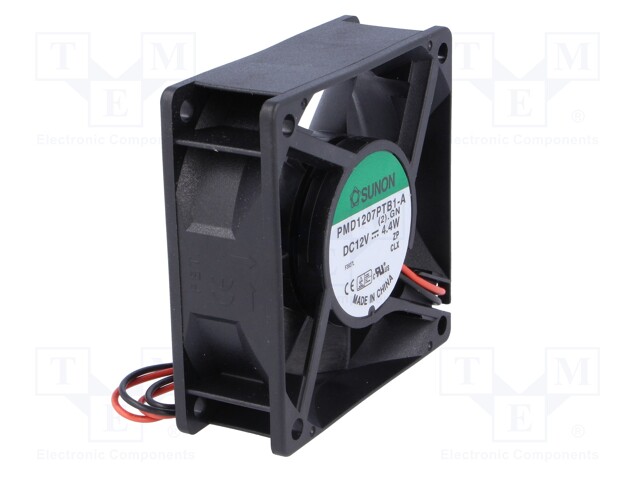

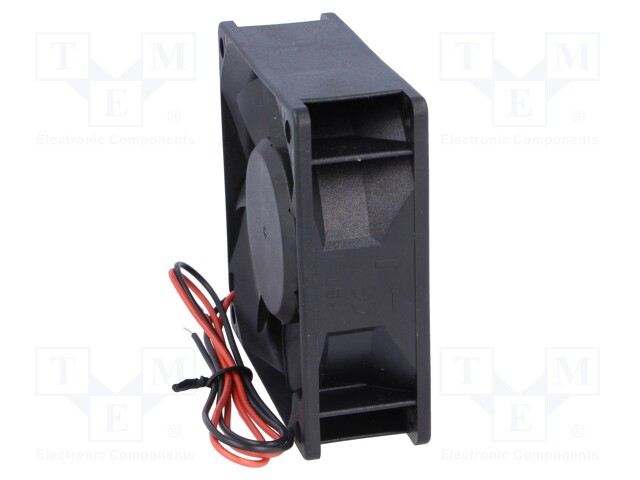

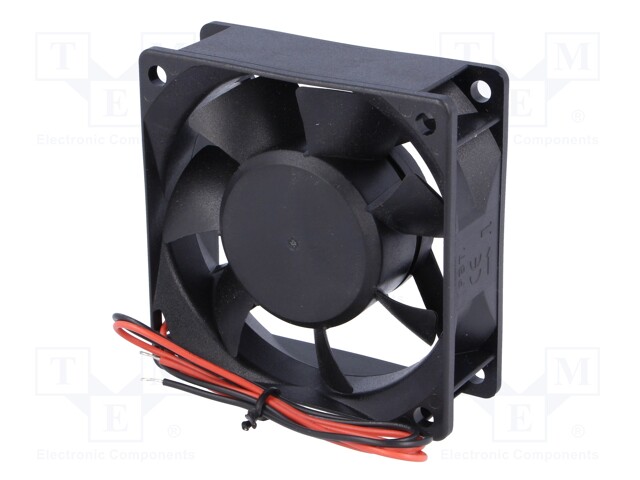

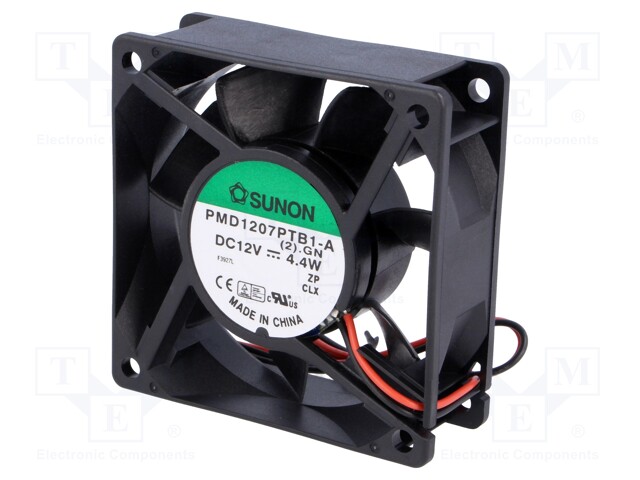

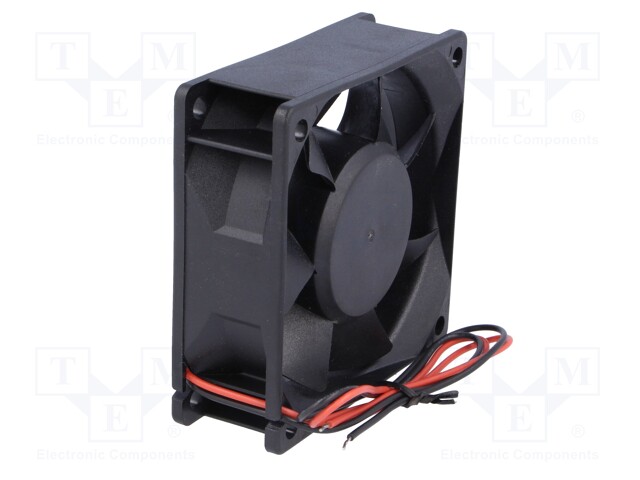

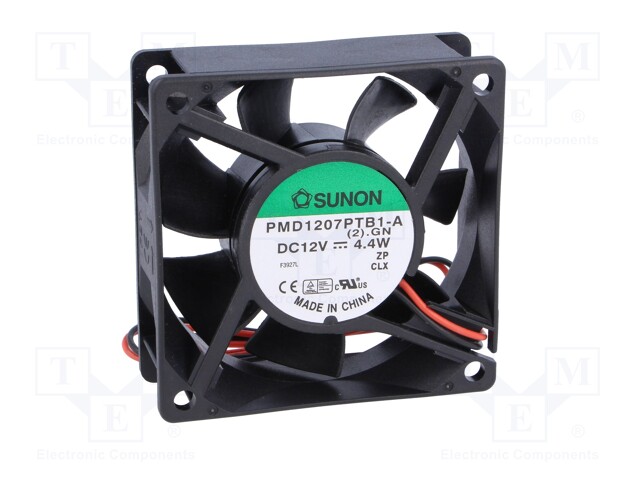

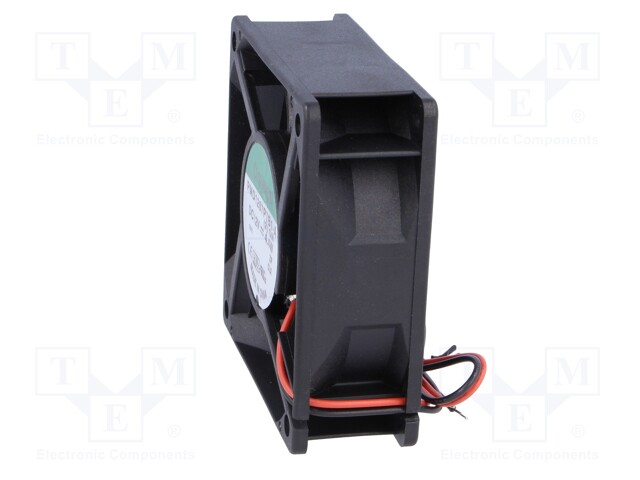

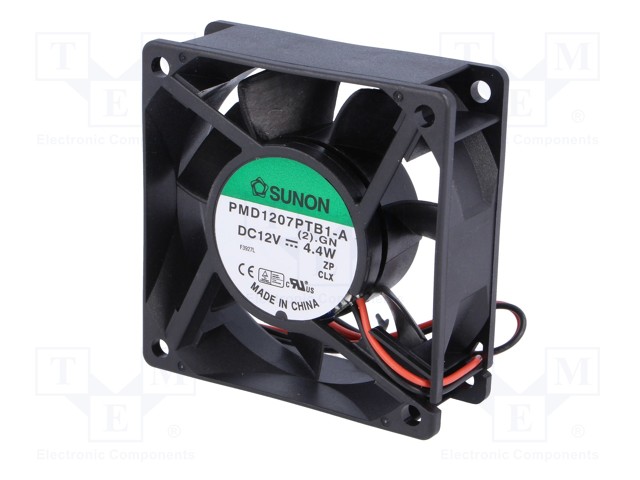

Fan: DC; axial; 12VDC; 70x70x25mm; 83.25m3/h; 45dBA; ball bearing

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: PMD1207PTB1-A.(2).GN
    Tootja: SUNON
    Tootja tootekood: PMD1207PTB1-A.(2).GN
    • Supply voltage
    • Operating temperature
    • Enclosure material
    • Flammability rating
    • Current rating
    • Fan efficiency
    • Power consumption
    • Additional functions
    • Rotational rate/speed
    • Fan motor
    • Fan dimensions
    • Kind of Bearing
    • Min. insulation resistance
    • Impeller material
    • Kind of fan
    • Insulation class
    • Type of fan
    • Static pressure
    • Noise level

    12,68 € 12,68 € (KM-TA) 12.68 EUR

    12,68 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Fan: DC; axial; 12VDC; 70x70x25mm; 83.25m3/h; 45dBA; ball bearing

    Supply voltage 12V DC
    Operating temperature -10...70°C
    Enclosure material thermoplastic
    Flammability rating UL94V-0
    Current rating 370mA
    Fan efficiency 83.25m<sup>3</sup>/h
    Power consumption 4.4W
    Additional functions Autorestart
    Rotational rate/speed 5100 (±10%)rpm
    Fan motor brushless DC motor
    Fan dimensions 70x70x25mm
    Kind of Bearing ball bearing
    Min. insulation resistance 10MΩ
    Impeller material thermoplastic
    Kind of fan axial
    Insulation class A
    Type of fan DC
    Static pressure 9.14mm H<sub>2</sub>O
    Noise level 45dBA
