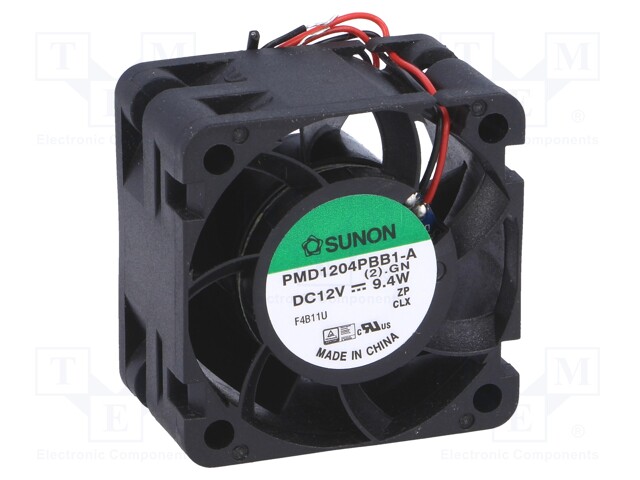

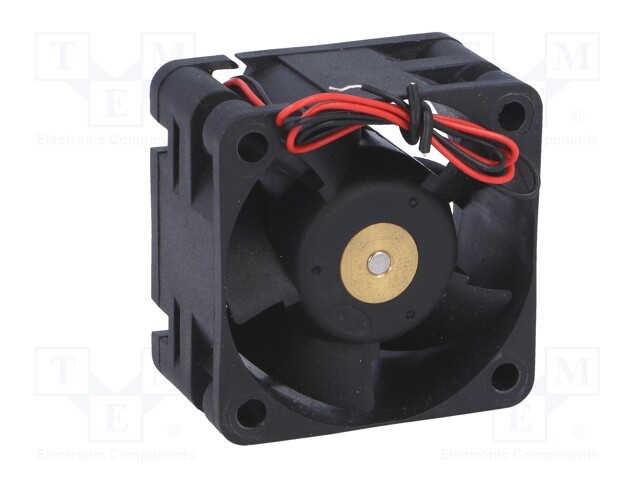

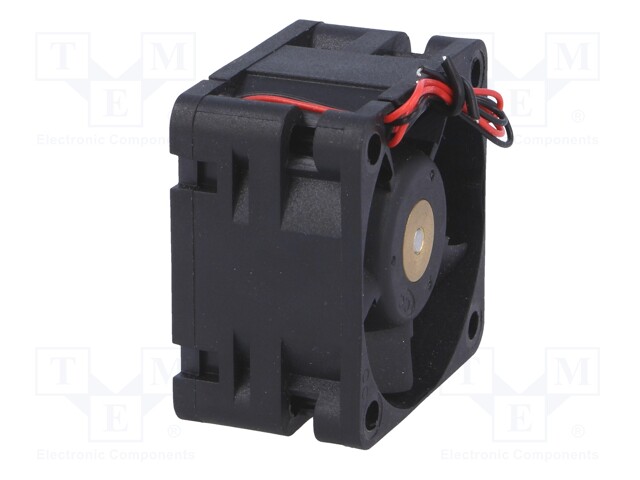

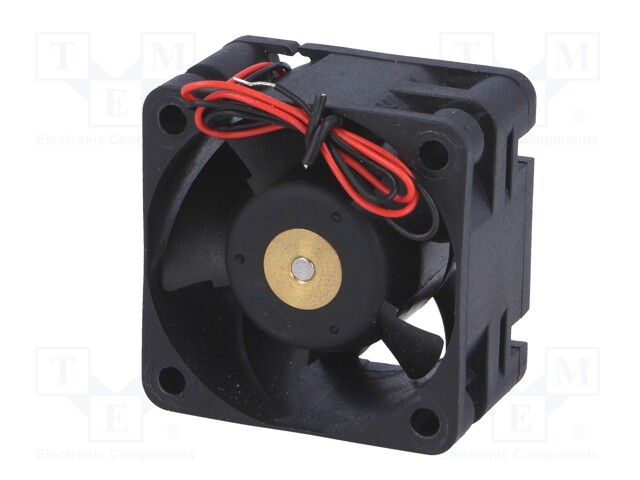

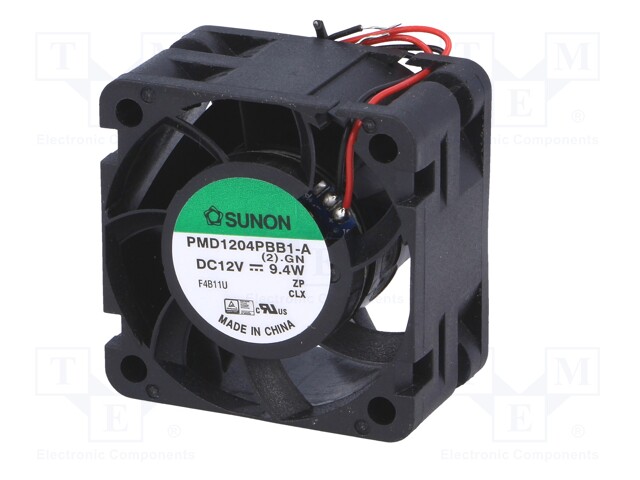

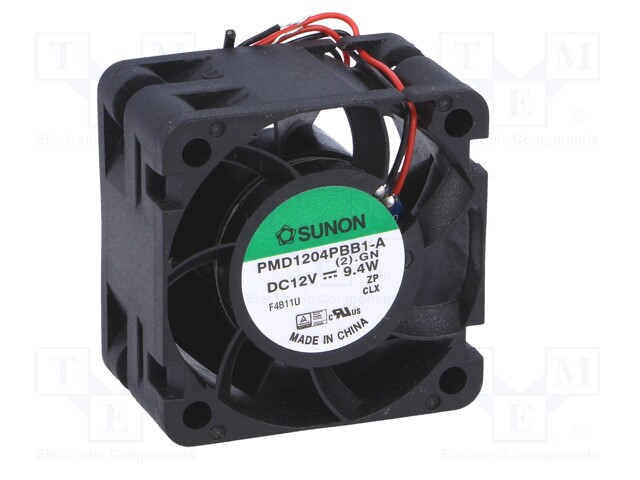

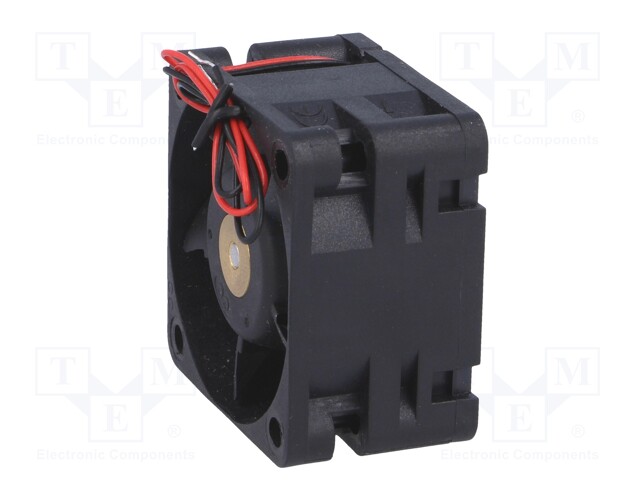

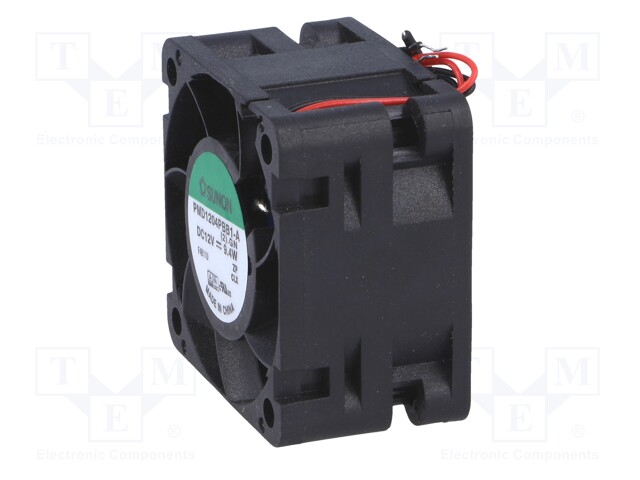

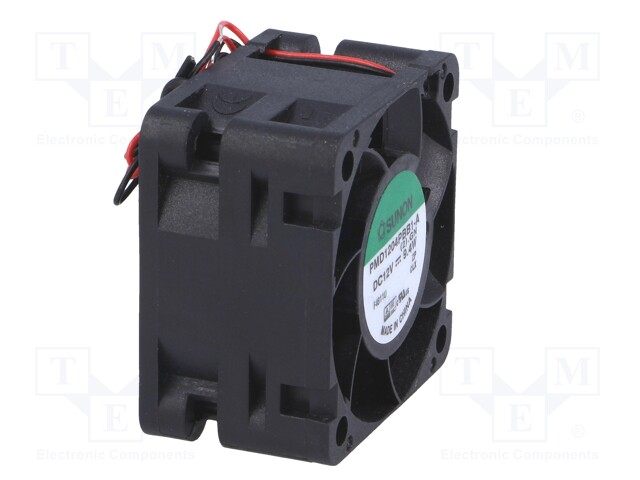

Fan: DC; axial; 12VDC; 40x40x24mm; 39.92m3/h; 55dBA; ball bearing
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
PMD1204PBB1A
Tootja: SUNON
Tootja tootekood: PMD1204PBB1A
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE95DC0DED87A0A0D5&compId=SUNON.txt?ci_sign=da327a67e06fb29004fb8dd6db0dbb28f9abd61f
- pVersion=0046&contRep=ZT&docId=E1DFAE3301C88AF1A704005056AB0C4F&compId=PMD1204PBB1A.pdf?ci_sign=921765aafc432bda95f54461211fa22ae6428280
- pVersion=0046&contRep=ZT&docId=E1E21779CBEC52F1A704005056AB0C4F&compId=High_Air_Flow_Series_e_2012.pdf?ci_sign=42627e61c537572c80923f5ffb948bd02fc75085
Spetsifikatsioon tootele Fan: DC; axial; 12VDC; 40x40x24mm; 39.92m3/h; 55dBA; ball bearing
| Supply voltage | 12V DC |
| Operating voltage | 6...13.8V DC |
| Operating temperature | -10...70°C |
| Enclosure material | thermoplastic |
| Flammability rating | UL94V-0 |
| Current rating | 0.78A |
| Fan efficiency | 39.92m<sup>3</sup>/h |
| Power consumption | 9.4W |
| Additional functions | Autorestart |
| Rotational rate/speed | 14500 (±10%)rpm |
| Fan motor | brushless DC motor |
| Fan dimensions | 40x40x24mm |
| Kind of Bearing | ball bearing |
| Min. insulation resistance | 10MΩ |
| Impeller material | thermoplastic |
| Kind of fan | axial |
| Insulation class | E |
| Type of fan | DC |
| Static pressure | 32mm H<sub>2</sub>O |
| Noise level | 55dBA |
