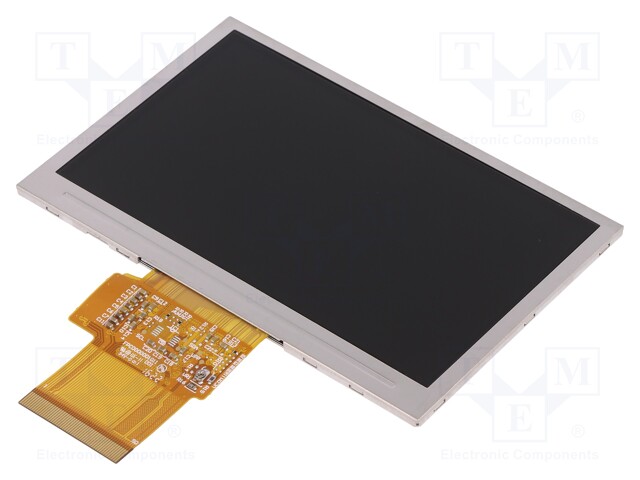

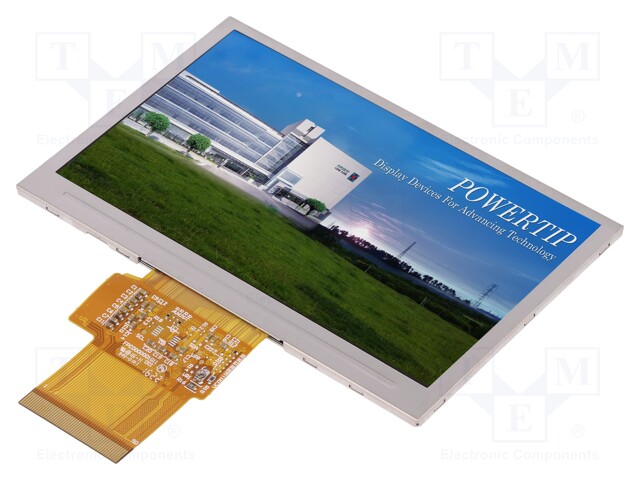

Display: TFT; 4.3"; 480x272; Illumin: LED; Dim: 105.5x67.2x2.6mm
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
PH480272T009-IHA01
Tootja: POWERTIP
Tootja tootekood: PH480272T009-IHA01
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE80A1B5BCC66760D5&compId=displays.txt?ci_sign=eaf78fd912bebb1d94d1d350f52cc04fb0aa44fb
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDFA48D1C148081C0D6&compId=ESD%20Customer%20Service.txt?ci_sign=3268072bd7a58e9047ff598dac2a1cb8c9585688
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE7AAB89E406CD5074A&compId=PH480272T009-IHA01_.pdf?ci_sign=19e51afb759dcd23bf291af3d9113c5d1ca7091f
Spetsifikatsioon tootele Display: TFT; 4.3"; 480x272; Illumin: LED; Dim: 105.5x67.2x2.6mm
| Supply voltage | 3...3.6V DC |
| Interface | 24bit RGB |
| Number of pins | 50 |
| Series | E series |
| Dimensions | 105.5x67.2x2.6mm |
| Type of pin configuration | 1x50 |
| Family | 4-in-1 |
| Display resolution | 480x272 |
| Screen size | 4.3" |
| Kind of display | graphical |
| Backlight colour | RGB |
| Illumination | LED |
| Contrast | 600:1 |
| Window dimensions (H x W) | 95.04x53.376mm |
| Kind of controller | ILI6480B |
| Type of display | TFT |
| Ribbon cable pitch | 500µm |
