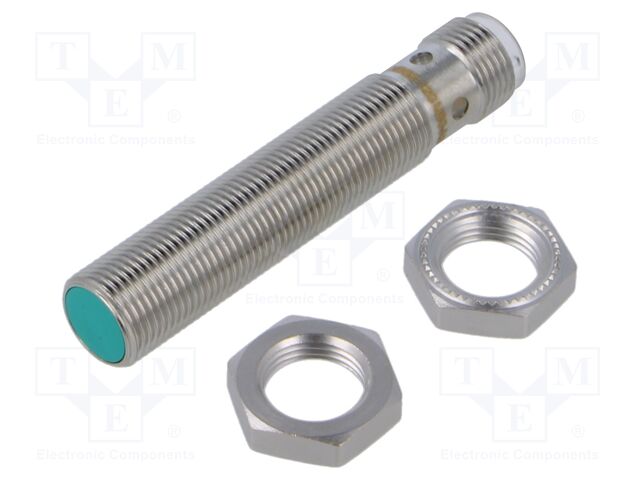

Sensor: inductive; OUT: PNP / NO + NC; 0÷2mm; 6÷36VDC; M12; IP68

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: NBB2-12GM50-A2-V1
    Tootja: PEPPERL+FUCHS
    Tootja tootekood: NBB2-12GM50-A2-V1
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Range
    • Output configuration
    • Overall length
    • Body plating
    • Type of sensor
    • Connection
    • Switch housing
    • Switching frequency max
    • Kind of forehead

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Sensor: inductive; OUT: PNP / NO + NC; 0÷2mm; 6÷36VDC; M12; IP68

    Supply voltage 6...36V DC
    Max. operating current 200mA
    Operating temperature -40...85°C
    IP rating IP68
    Number of pins 4
    Body material brass
    Range 0...2mm
    Output configuration PNP / NO + NC
    Overall length 64.5mm
    Body plating nickel
    Type of sensor inductive
    Connection connector M12
    Switch housing M12
    Switching frequency max 3.5kHz
    Kind of forehead embedded
