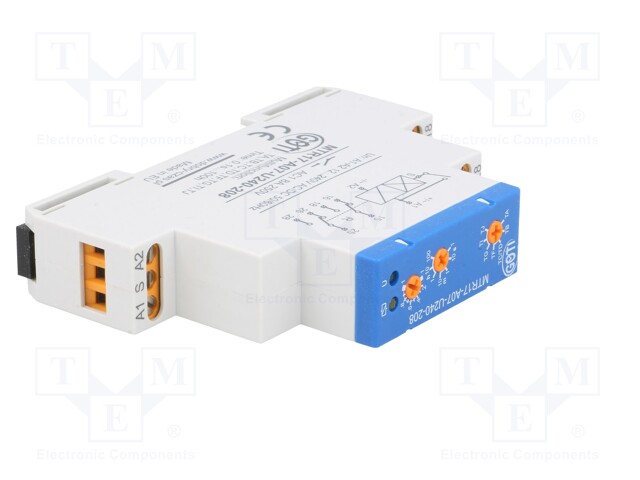

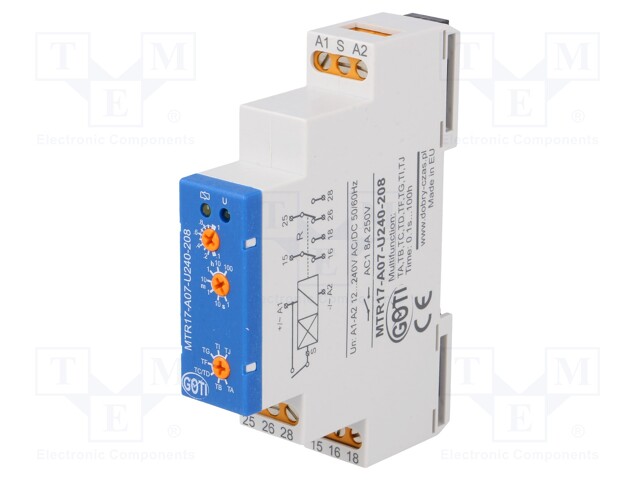

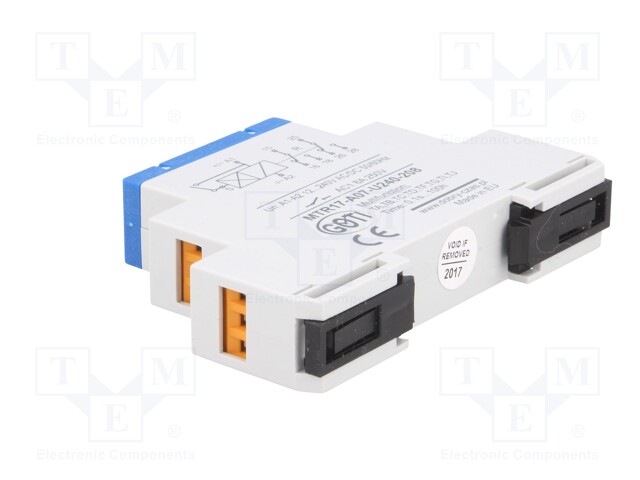

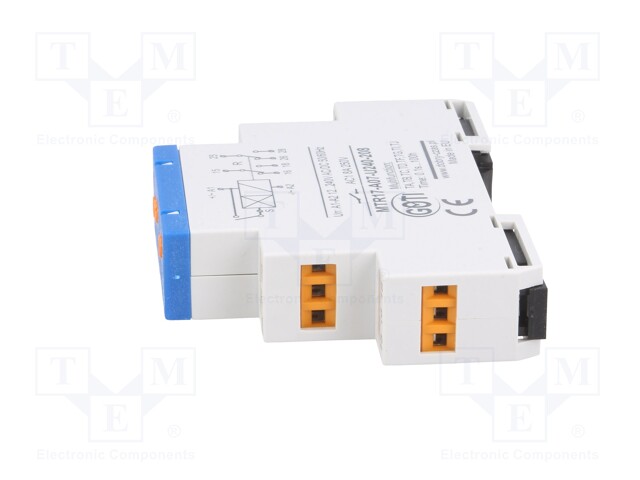

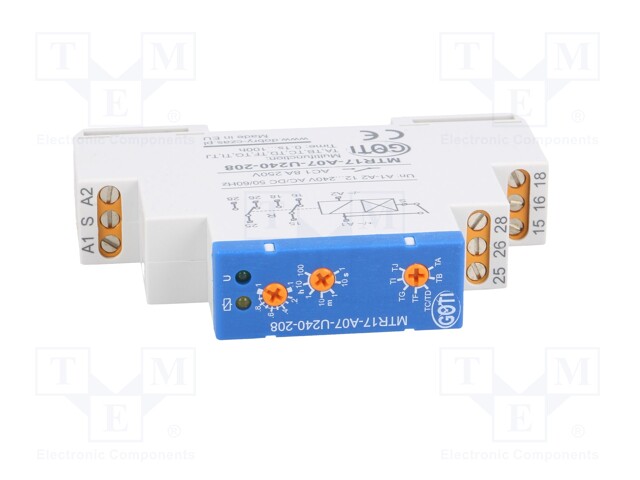

Timer; 1s÷100h; SPDT x2; 250VAC/8A; 12÷240VAC; 12÷240VDC; DIN; IP20

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: MTR17-A07-U240-208
    Tootja: DOBRY CZAS
    Tootja tootekood: MTR17-A07-U240-208
    • Mounting
    • Supply voltage
    • Supply voltage
    • Operating temperature
    • IP rating
    • Type of module
    • Kind of output
    • Indication
    • Electrical connection
    • Counting range
    • Counter operation modes
    • Counter operation modes
    • Counter operation modes
    • Counter operation modes
    • Counter operation modes
    • Counter operation modes
    • Counter operation modes
    • Counter operation modes
    • Timers features
    • number of operation modes

    32,33 € 32,33 € (KM-TA) 32.33 EUR

    32,33 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Timer; 1s÷100h; SPDT x2; 250VAC/8A; 12÷240VAC; 12÷240VDC; DIN; IP20

    Mounting for DIN rail mounting
    Supply voltage 12...240V AC, 12...240V DC
    Operating temperature -20...45°C
    IP rating IP20
    Type of module timer
    Kind of output SPDT x2
    Indication LED
    Electrical connection screw terminals
    Counting range 1s...100h
    Counter operation modes cyclical operation (starting off), cyclical operation (starting on), delayed switching off by falling edge, delayed switching on, ON and OFF delay, ON for the set interval, timed pulse triggered by rising edge, timed pulse triggered by the falling edge
    Timers features rotary potentiometer to set the time
    number of operation modes 7
