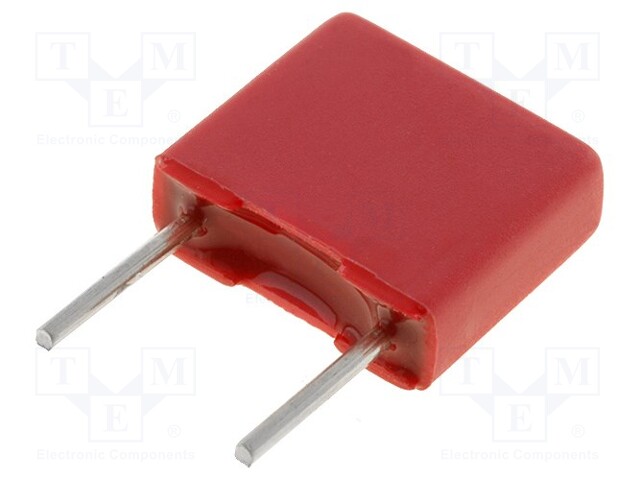

Capacitor: polyester; 47nF; 40VAC; 63VDC; Pitch: 5mm; ±10%

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: MKS2C024701A00KSSD
    Tootja: WIMA
    Tootja tootekood: MKS2C024701A00KSSD
    • Mounting
    • Operating temperature
    • Tolerance
    • Terminal pitch
    • Flammability rating
    • Body dimensions
    • Max. operating voltage
    • Max. operating voltage
    • Capacitance
    • Type of capacitor
    • Capacitor application
    • Capacitor application
    • Capacitor application
    • Capacitor application
    • Capacitor application
    • Climate class
    • Pulse resistance

    0,82 € 0,82 € (KM-TA) 0.8200000000000001 EUR

    0,82 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Capacitor: polyester; 47nF; 40VAC; 63VDC; Pitch: 5mm; ±10%

    Mounting THT
    Operating temperature -55...100°C
    Tolerance ±10%
    Terminal pitch 5mm
    Flammability rating UL94V-0
    Body dimensions 2.5x6.5x7.2mm
    Max. operating voltage 40V AC, 63V DC
    Capacitance 47nF
    Type of capacitor polyester
    Capacitor application blocking, DC applications, decoupling, filtering, timing circuits
    Climate class 55/100/21
    Pulse resistance 20V/μs
