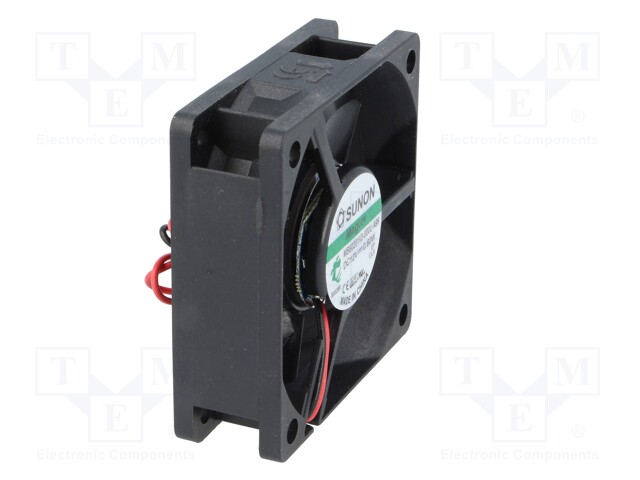

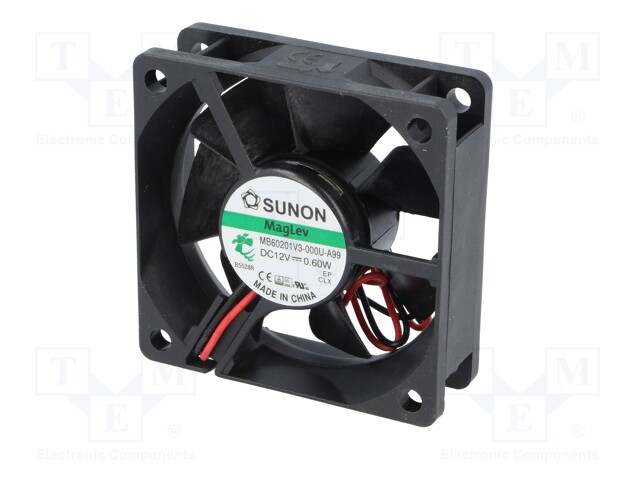

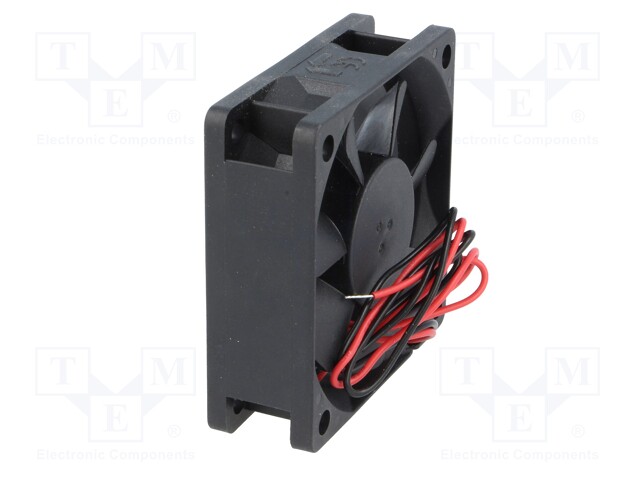

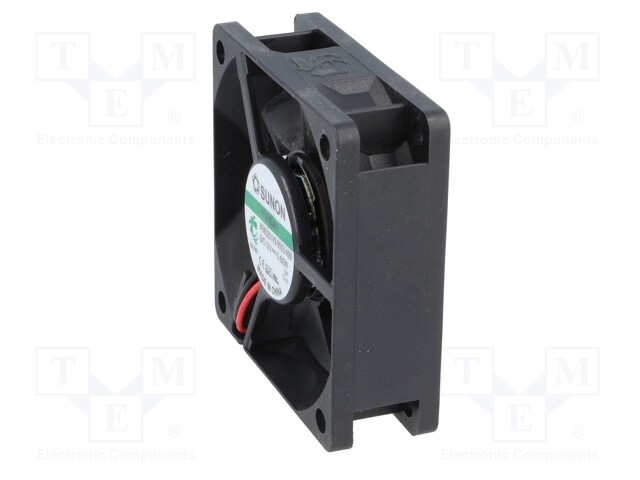

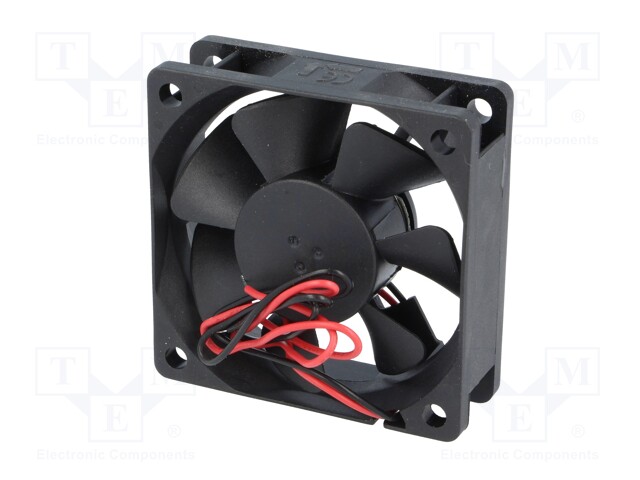

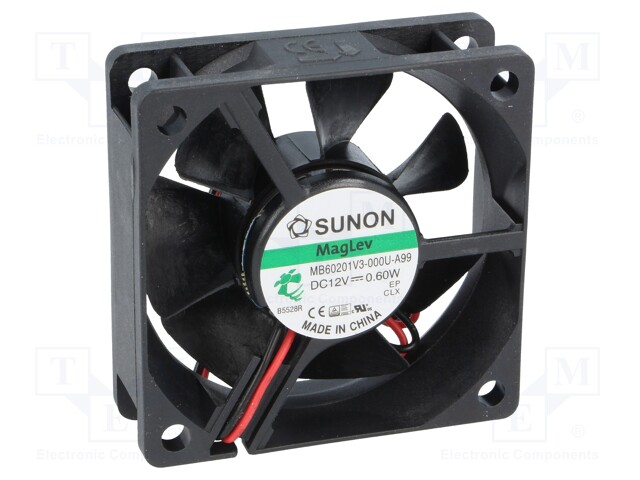

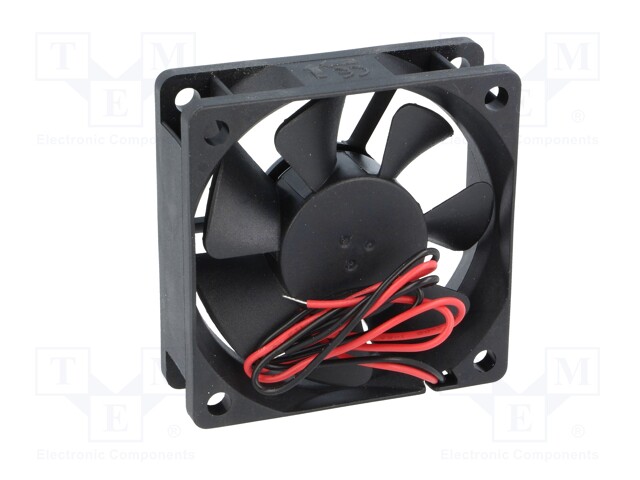

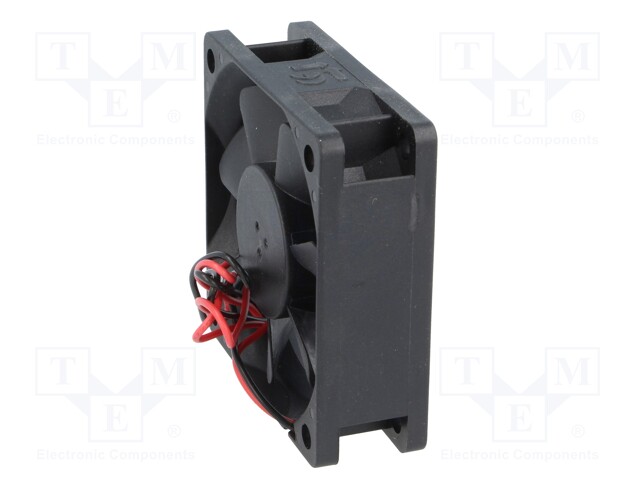

Fan: DC; axial; 12VDC; 60x60x20mm; 28.03m3/h; 23dBA; Vapo; Len: 0.3m
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
MB60201V3-000U-A99
Tootja: SUNON
Tootja tootekood: MB60201V3-000U-A99
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE95DC0DED87A0A0D5&compId=SUNON.txt?ci_sign=da327a67e06fb29004fb8dd6db0dbb28f9abd61f
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFD9F3F6A6CFA8&compId=Sunon%20DC%20Brushless%20Fan%20%26%20Blower.pdf?ci_sign=a0c7d956948f5b35d6b13385113d437006f0ea7b
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE789B42FA60908A745&compId=MAGLEV-YTB.txt?ci_sign=0749a376c682a5987c1ec7c8dc0aeacba34418f2
- pVersion=0046&contRep=ZT&docId=E1D7BC24C7A0A5F1A704005056AB0C4F&compId=MB60201V3-A99.pdf?ci_sign=28fe1c3a0e74e318acfb94c96c2b86a64bd6420f
Spetsifikatsioon tootele Fan: DC; axial; 12VDC; 60x60x20mm; 28.03m3/h; 23dBA; Vapo; Len: 0.3m
| Supply voltage | 12V DC |
| Operating voltage | 6...13.8V DC |
| Operating temperature | -10...70°C |
| Enclosure material | thermoplastic |
| Flammability rating | UL94V-0 |
| Cable length | 300mm |
| Current rating | 50mA |
| Fan efficiency | 28.03m<sup>3</sup>/h |
| Power consumption | 600mW |
| Additional functions | Autorestart |
| Rotational rate/speed | 3000 (±15%)rpm |
| Fan motor | brushless DC motor |
| Fan dimensions | 60x60x20mm |
| Kind of Bearing | Vapo |
| Min. insulation resistance | 500MΩ |
| Impeller material | thermoplastic |
| Kind of fan | axial |
| Insulation class | A |
| Type of fan | DC |
| Static pressure | 2.54mm H<sub>2</sub>O |
| Noise level | 23dBA |
