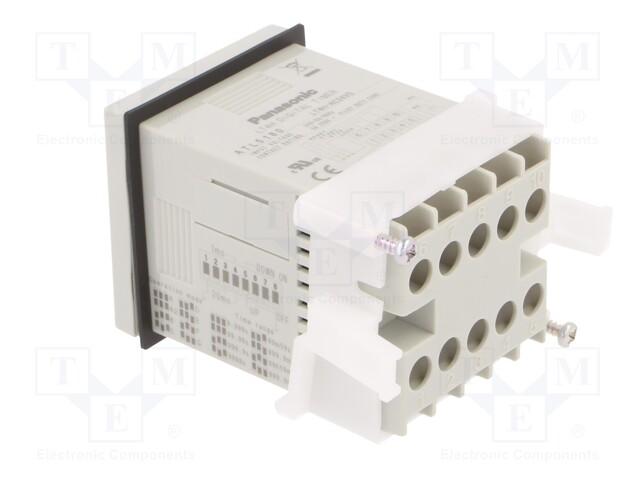

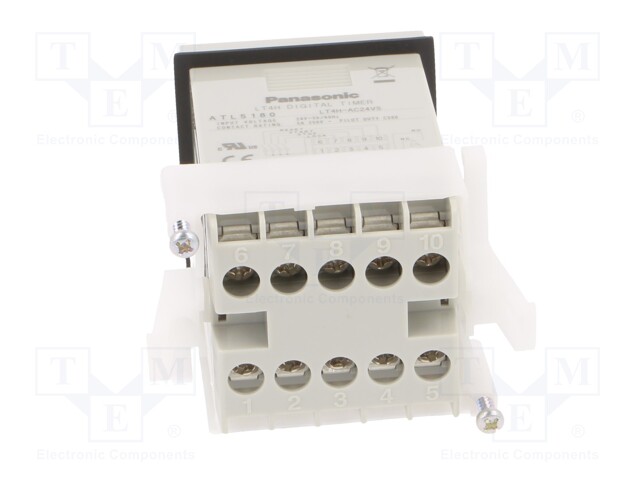

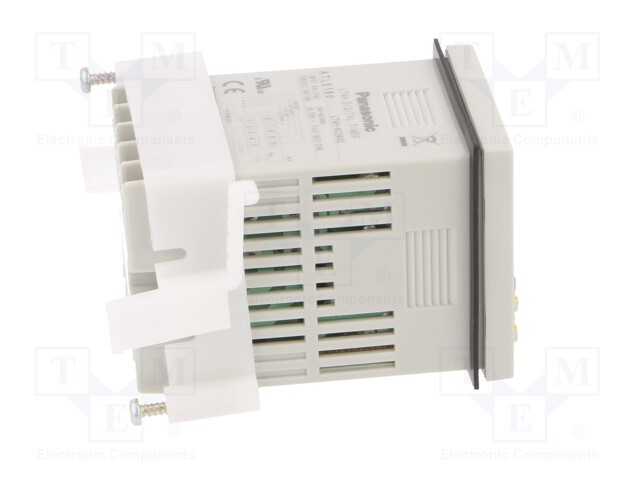

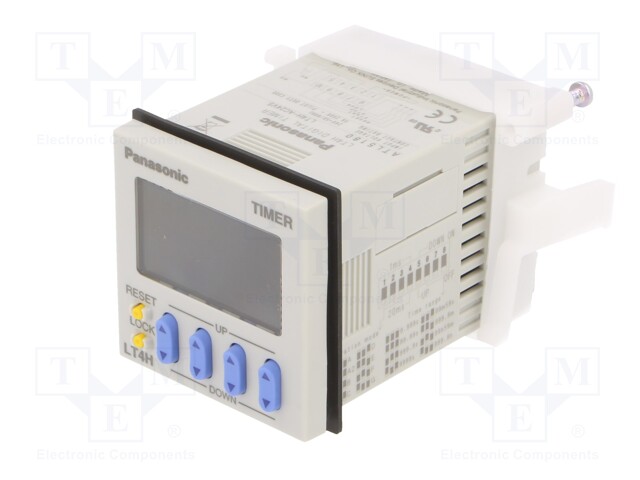

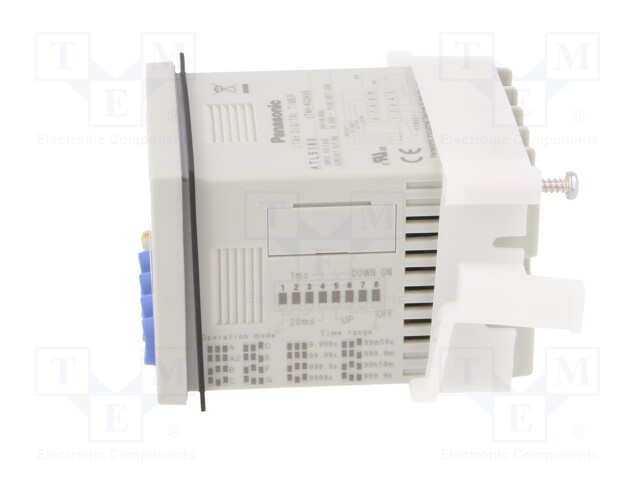

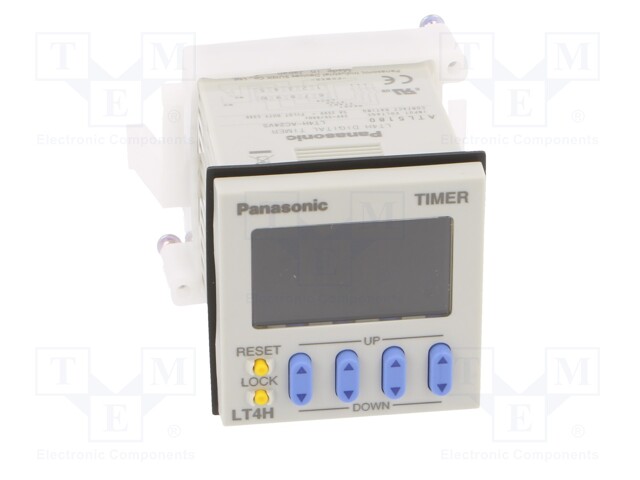

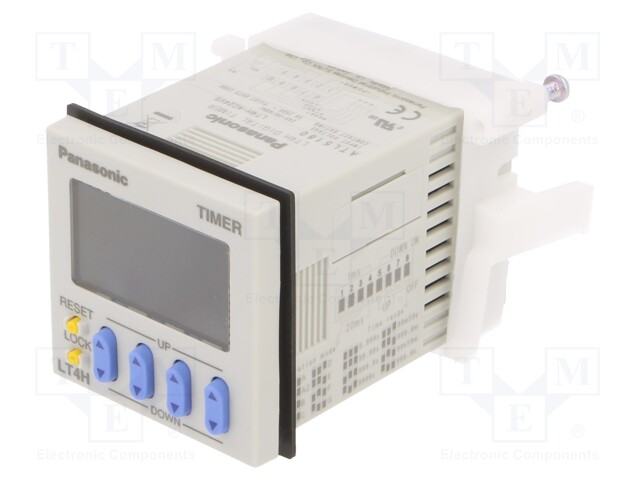

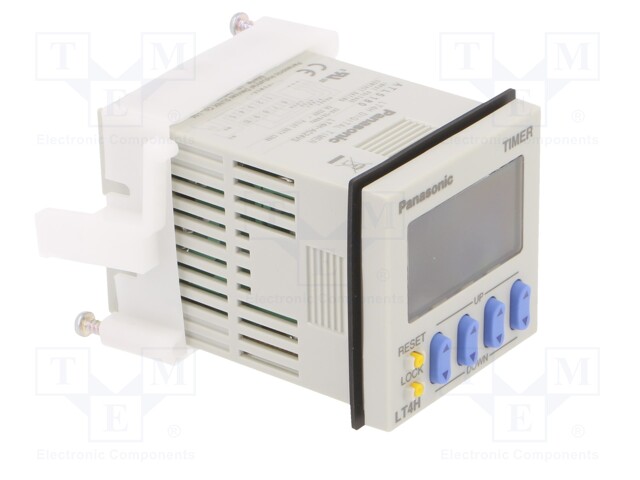

Timer; Range: 0,001s÷999,9h; SPDT; 24VAC; on panel; Display: 2x LCD

• Mounting on panel
• Supply voltage 24V AC
• Operating temperature -10...55°C
• IP rating IP66 (from the front)
• Type of module timer
• Mounting hole diameter 45x45mm
• Kind of display used LED
• Kind of output SPDT
• Indication LED
• Electrical connection screw terminals
• Counting range 0,001s...999,9h
• Counter operation modes cumulative
• Counter operation modes cyclical operation
• Counter operation modes delayed switching off
• Counter operation modes delayed switching on
• Counter operation modes pulse after a specified time
• Counter operation modes with the control contact S
• Timers features DIP-SWITCH for operation mode selection
• Timers features fitted with function for up and down time counting
• number of operation modes 8
• The additional control inputs LOCK
• The additional control inputs RESET
• The additional control inputs START
• The additional control inputs STOP
