Wire: ribbon; 1.27mm; stranded; Cu; 25x28AWG; unshielded; 30.5m
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
HF365/25SF (100FT)
Tootja: 3M
Tootja tootekood: HF365/25SF (100FT)
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE8AEFA6BEE8E100D5&compId=3M_Cable_SelectionGuide_Letter_HR.pdf?ci_sign=feeca919a34f12a32b0c1c73da2db29544817ea0
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBAFA6F8226270C0C7&compId=3M%20Cable%20and%20Accessories.pdf?ci_sign=8a255b5cdcc8d685161a6dc818725132c25b9b6d
- pVersion=0046&contRep=ZT&docId=E1C04D6C3CA685F1A6F5005056AB5A8F&compId=HF365_Series.pdf?ci_sign=d51b9a786f83bb9d336ec329ab4494a0bbe9a1d6
Spetsifikatsioon tootele Wire: ribbon; 1.27mm; stranded; Cu; 25x28AWG; unshielded; 30.5m
| Operating temperature | -40...105°C |
| Core structure | stranded |
| Kind of core | Cu, tinned |
| Cable features | low smoke density |
| Number of cores | 25 |
| Rated voltage | 50V |
| Ribbon cable pitch | 1.27mm |

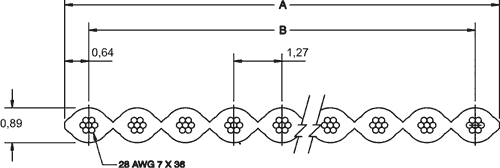

| B dimension | 30.48mm |
| A dimension | 31.75mm |
| Insulation colour | light grey |
| Type of wire | ribbon |
| Shield structure | unshielded |
