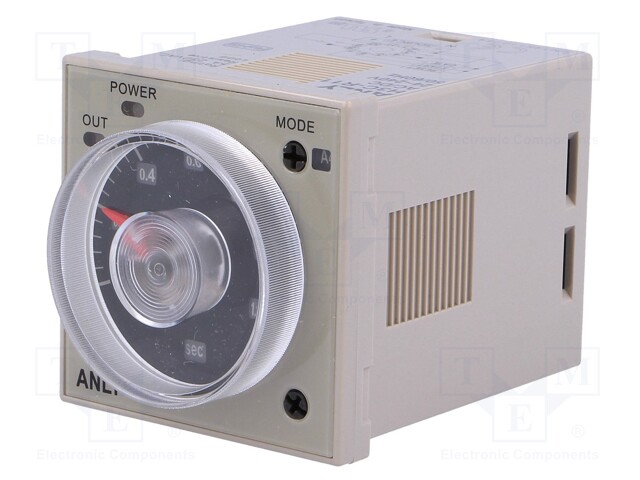

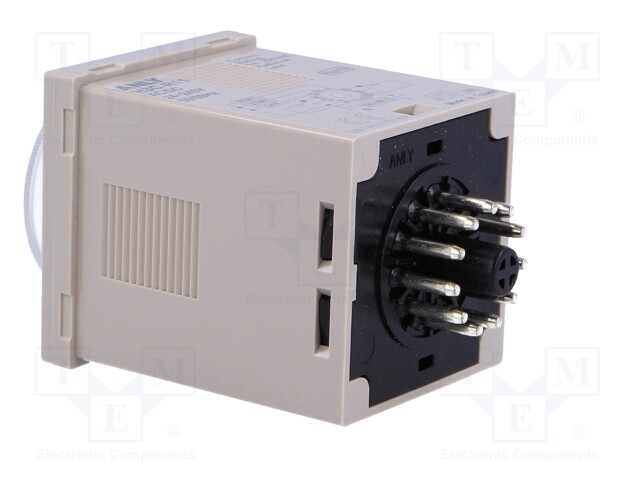

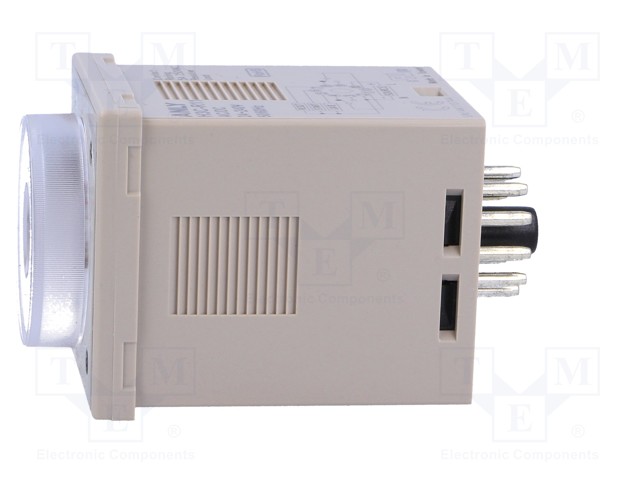

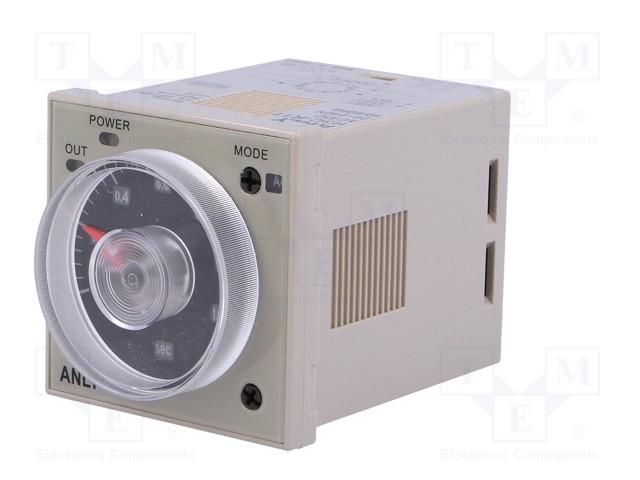

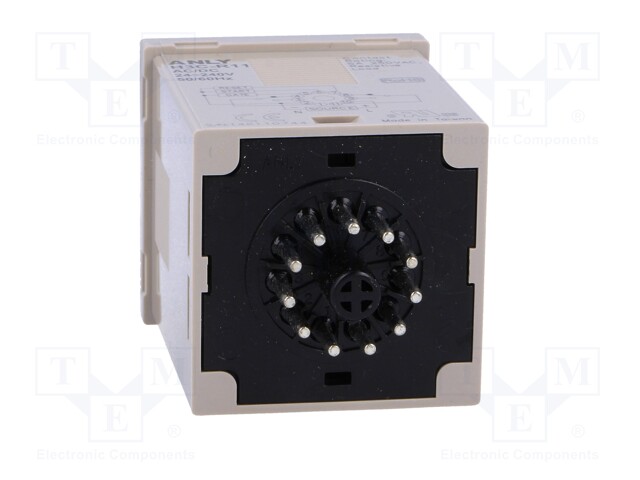

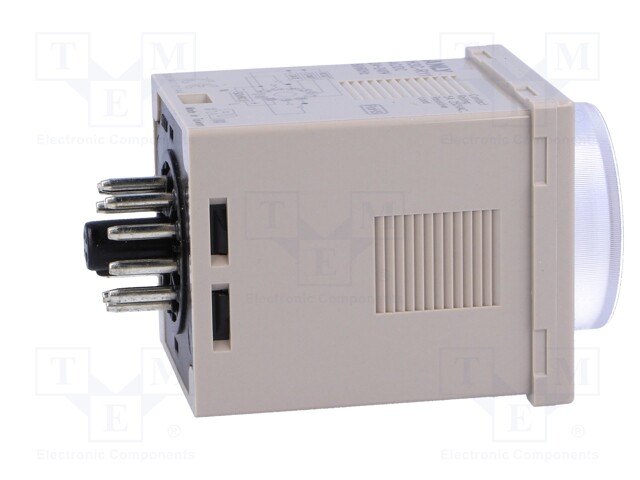

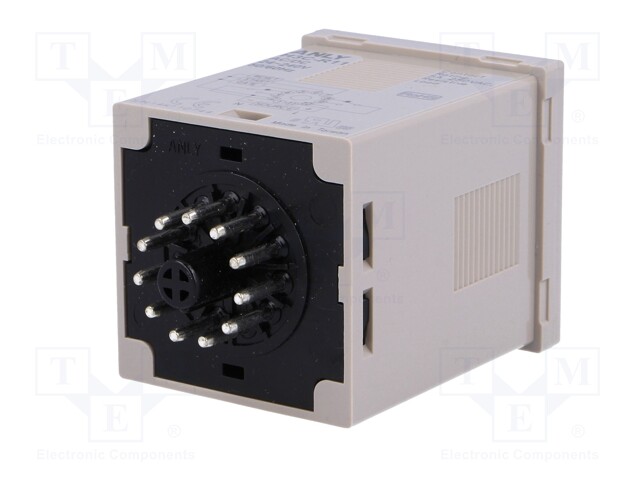

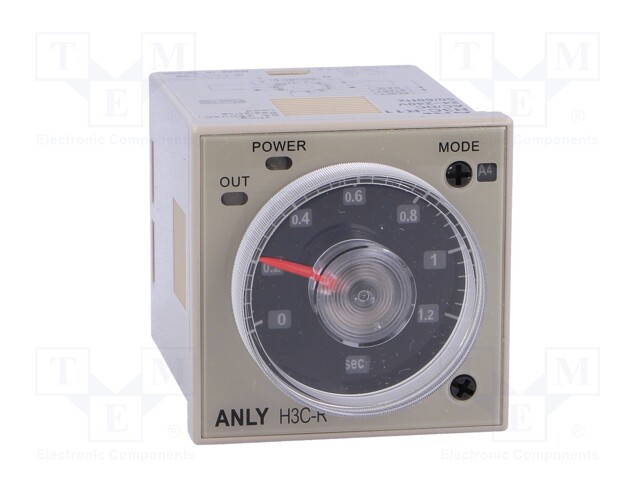

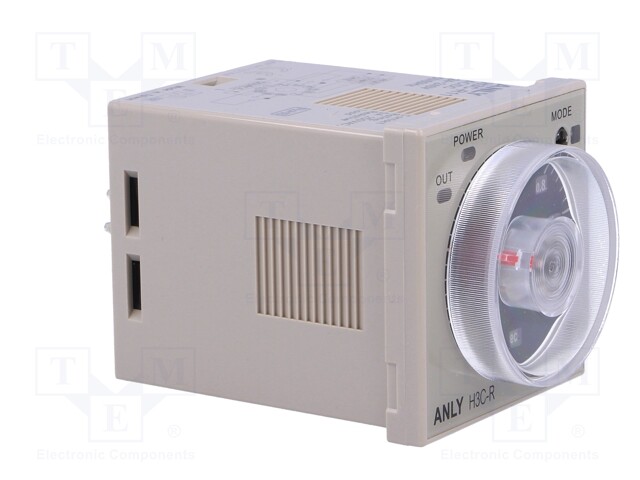

Timer; 0,2s÷300h; DPDT; 250VAC/5A; 24÷240VAC; 24÷240VDC; undecal
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
H3C-R11
Tootja: ANLY ELECTRONICS
Tootja tootekood: H3C-R11
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB6EE2712621DC&compId=INB-PRZEK-CZAS-EN.pdf?ci_sign=eac099eefad4e622c41d0c5e2b01403eca52005e
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED488F18C4B572A41EC&compId=H3CR-ins.pdf?ci_sign=64c66a877d2f85837f09aba0e65841fd09d2f922
- pVersion=0046&contRep=ZT&docId=E1C04D29926666F1A6F5005056AB5A8F&compId=h3c-r_h3cr-11_datasheet.pdf?ci_sign=a916e577056e4cc708fcd61dcdd643e90120fc86
Spetsifikatsioon tootele Timer; 0,2s÷300h; DPDT; 250VAC/5A; 24÷240VAC; 24÷240VDC; undecal
| Mounting | on panel, socket, for DIN rail mounting |
| Supply voltage | 24...240V AC, 24...240V DC |
| Operating temperature | -10...50°C |
| IP rating | IP40 |
| Kind of connector | undecal |
| Number of pins | 11 |
| Type of module | timer |
| Mounting hole diameter | 45x45mm |
| Kind of output | DPDT |
| Indication | LED |
| Electrical connection | round socket |
| Counting range | 0,2s...300h |
| Counter operation modes | cyclic impulse operation with delayed switching on, delayed switching on, ON and OFF delay, ON for the set interval, pulse after a specified time, symmetrical cyclical operation pause first, symmetrical cyclical operation pulse first, with the control contact S |
| number of operation modes | 9 |
| The additional control inputs | gate, RESET, START |
