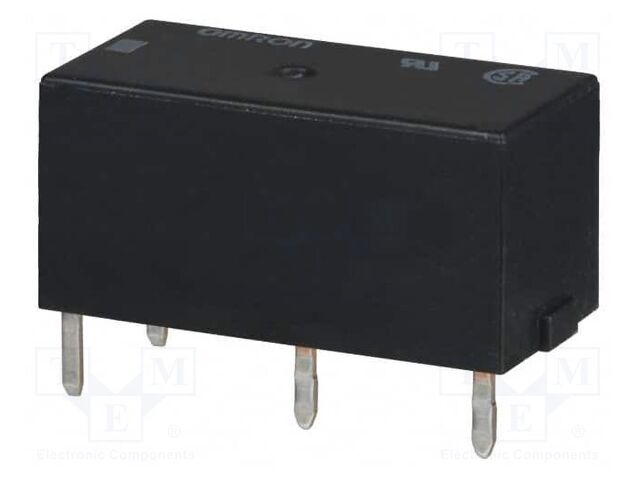

Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A

    Kordarv: 1000.0
    Minimum quantity: 1000.0
    Tootekood: G6B-1114P-FD-US 5DC
    Tootja: OMRON OCB
    Tootja tootekood: G6B-1114P-FD-US 5DC
    • Mounting
    • Operating temperature
    • Leads
    • Contact material
    • Body dimensions
    • Mechanical durability
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • DC contacts rating @R
    • Contact resistance
    • AC contacts rating @R
    • Enclosure description
    • Contact current max.
    • Relay variant
    • Type of relay
    • Operate time
    • Release time
    • Coil current

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: electromagnetic; SPST-NO; Ucoil: 5VDC; Icontacts max: 5A

    Mounting PCB
    Operating temperature -25...70°C
    Leads for soldering
    Contact material AgSnIn
    Body dimensions 20x10x10mm
    Mechanical durability 50000000cycles
    Switched voltage ≤ 125V DC, ≤ 380V AC
    Coil resistance 125Ω
    Rated coil voltage 5V DC
    Contacts configuration SPST-NO
    DC contacts rating @R 5A / 30V DC
    Contact resistance 30mΩ
    AC contacts rating @R 5A / 250V AC
    Enclosure description hermetic seal
    Contact current max. 5A
    Relay variant miniature
    Type of relay electromagnetic
    Operate time 10ms
    Release time 10ms
    Coil current 40mA
