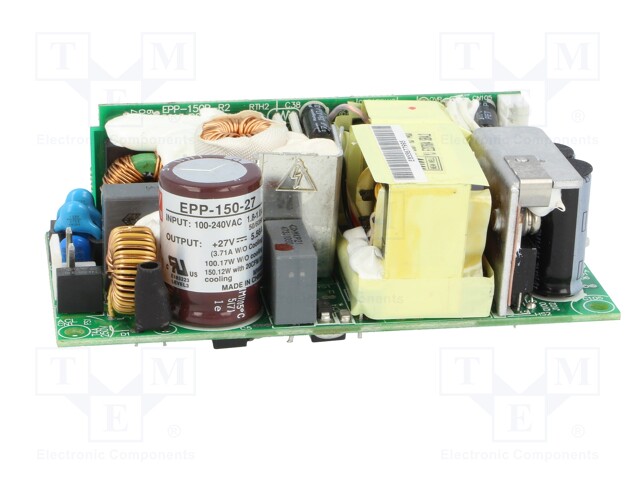

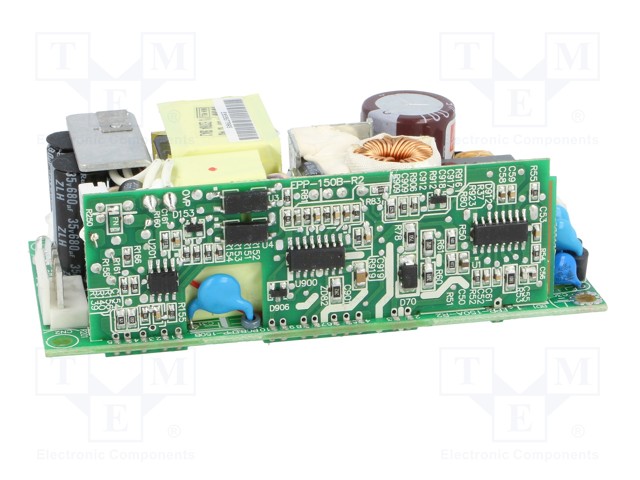

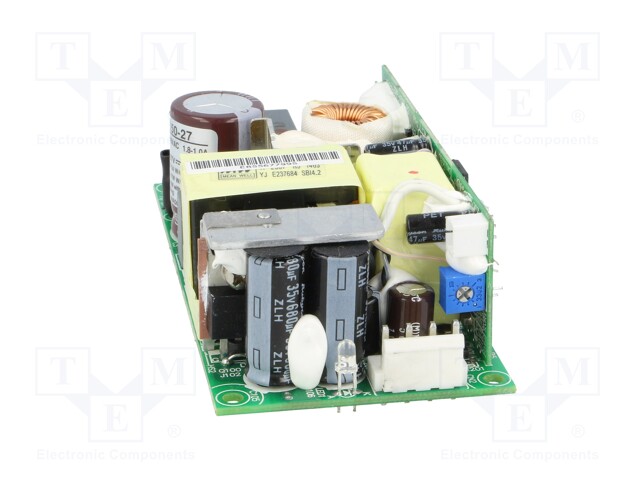

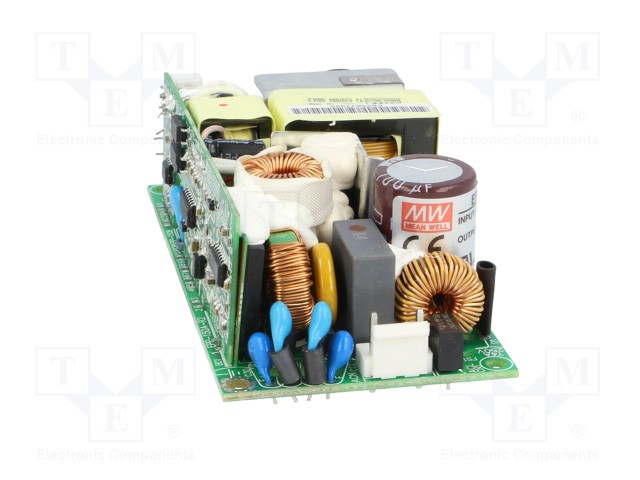

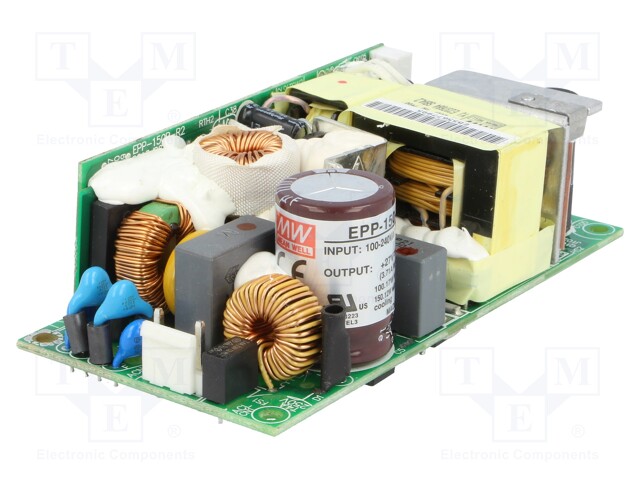

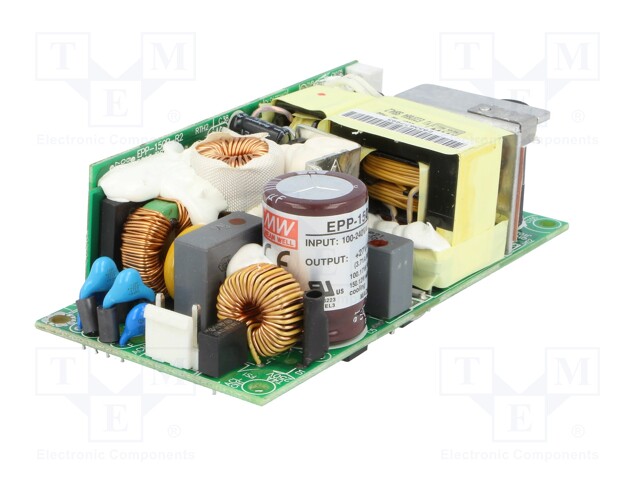

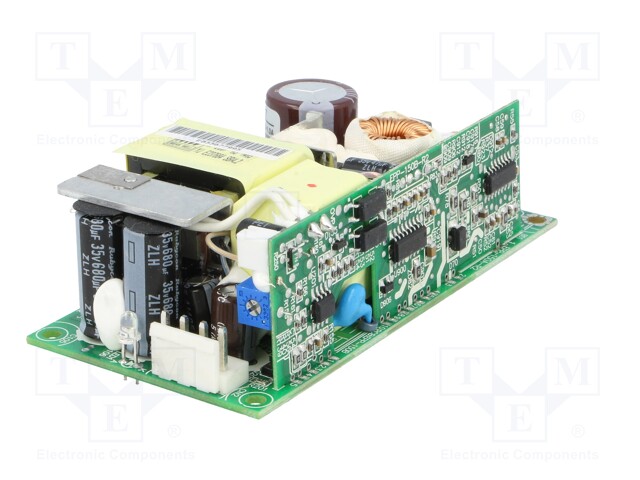

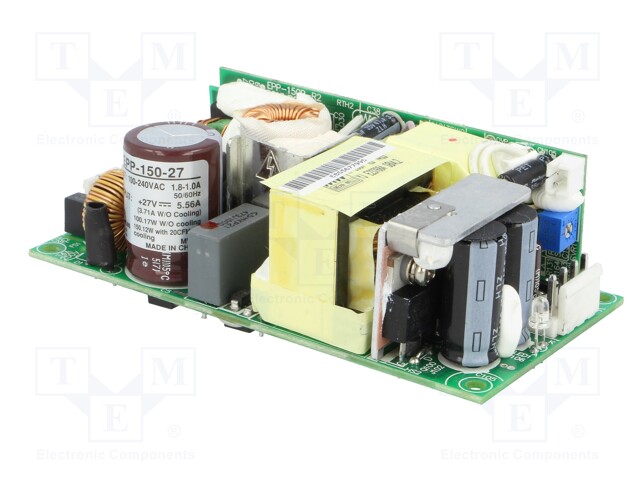

Pwr sup.unit: switched-mode; 150W; 127÷370VDC; 90÷264VAC; 27VDC
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
EPP-150-27
Tootja: MEAN WELL
Tootja tootekood: EPP-150-27
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE4B68BC03FD71D2469&compId=EPP-150-SPEC.pdf?ci_sign=5d118f5deb9f4ea7be159316a93c94924d11be98
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69CA033D50E462FA8&compId=INB-MN-PCB-EN.pdf?ci_sign=4e5a9b6cf17e89160a630d6ea826c0c42c232ea3
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBA390A2BDE3BA60C7&compId=Mean_Well_Industrial-Catalog.pdf?ci_sign=e5a3bf0d98e6bb6b792c315b1e2cf501830c330c
Spetsifikatsioon tootele Pwr sup.unit: switched-mode; 150W; 127÷370VDC; 90÷264VAC; 27VDC
| Supply voltage | 90...264V AC, 127...370V DC |
| Power | 150W |
| Operating temperature | -30...70°C |
| Protection | overheating, anti-overload, anti-overvoltage, short circuit protection |
| Type of power supply | switched-mode |
| Series | EPP-150 |
| Maximum current | 5.56A |
| Body dimensions | 101.6x50.8x29mm |
| Additional functions | active PFC |
| Efficiency | 92% |
| Number of outputs | 1 |
| Electrical connection | plug with 3,96mm pitch |
| Kind of power supply | open |
