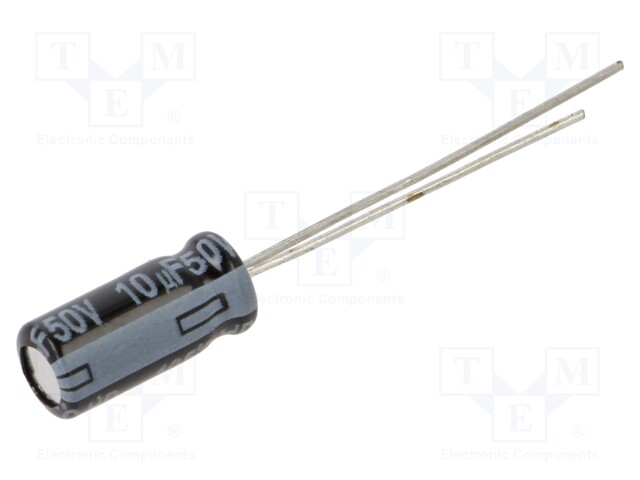

Electrolytic Capacitor, 10 µF, 50 V, HD Series, ± 20%, Radial Leaded, 1000 hours @ 105°C
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
EEUHD1H100
Tootja: PANASONIC
Tootja tootekood: EEUHD1H100
Product downloads
- ABA0000C1035.pdf
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCA4F5892ADC6700CE&compId=DISCHARGING_CAPACITORS.txt?ci_sign=9197ac52f93921ac5b72e37292c1cf1d55b23ec9
- pVersion=0046&contRep=ZT&docId=005056AB281E1FD08B8143D88EF360DE&compId=EEUHD1A102-LNK.txt?ci_sign=99c180354c5523df30429fa6b218052a76e7fbc7
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDB96FDDEE3C72300C7&compId=EEUHD1H100B.PDF?ci_sign=70c15a3ab62ec6d828d3b44f737c6bc08d2a7ba6
- pVersion=0046&contRep=ZT&docId=8954D222ECA01EDDB5A33922D20980D4&compId=SMD.txt?ci_sign=c018aca04ed17d0ef57953ed69917e1c881f39a9
Spetsifikatsioon tootele Electrolytic Capacitor, 10 µF, 50 V, HD Series, ± 20%, Radial Leaded, 1000 hours @ 105°C
| Mounting | THT |
| Operating voltage | 50V DC |
| Operating temperature | -40...105°C |
| Tolerance | ±20% |
| Terminal pitch | 2mm |
| Operating current | 39mA |
| Body dimensions | Ø5x11mm |
| Capacitance | 10µF |
| Type of capacitor | electrolytic |
| Conform to the norm | AEC-Q200 |
| Service life | 1000h |
| Max operating temperature | 105°C |
