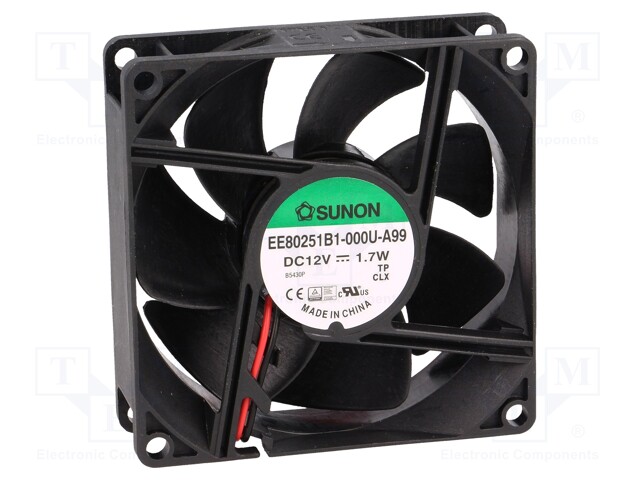

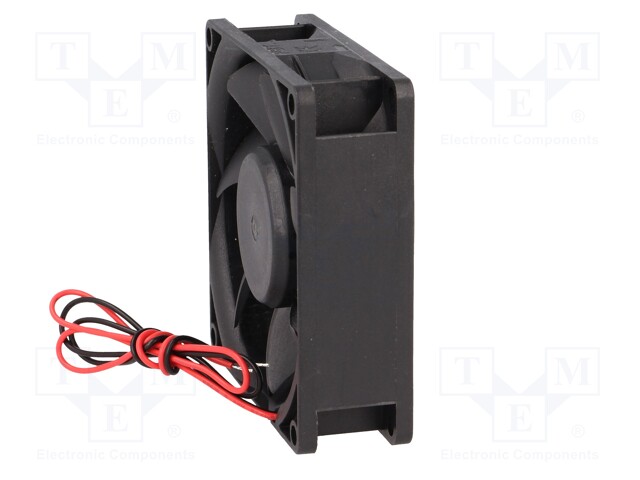

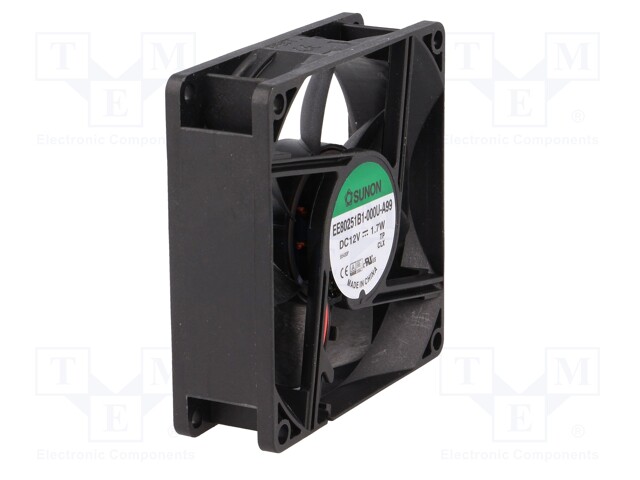

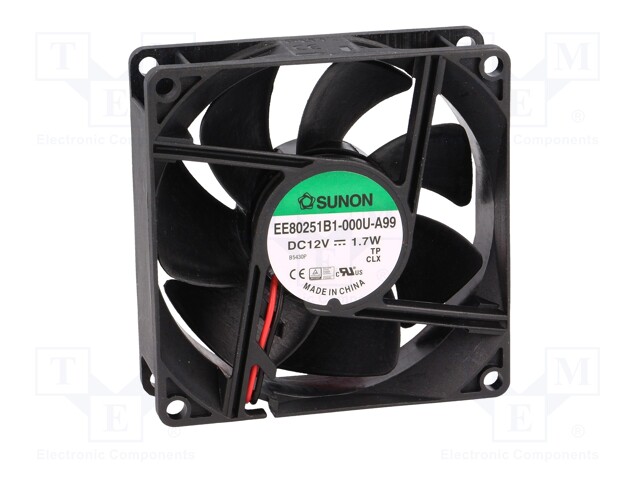

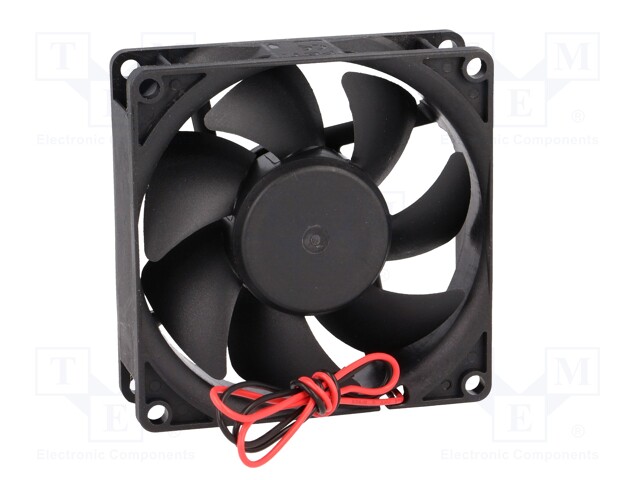

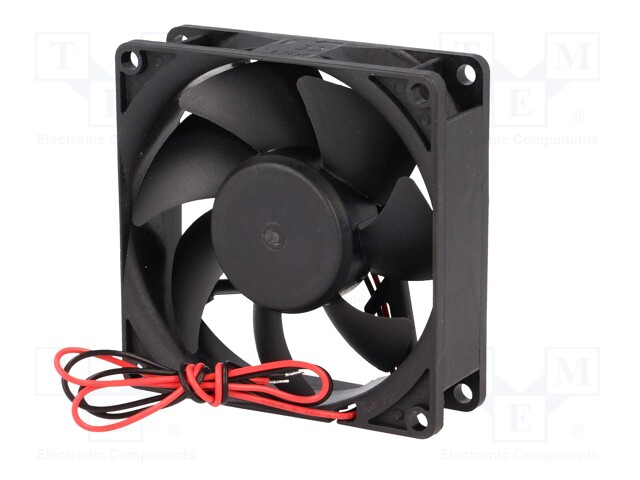

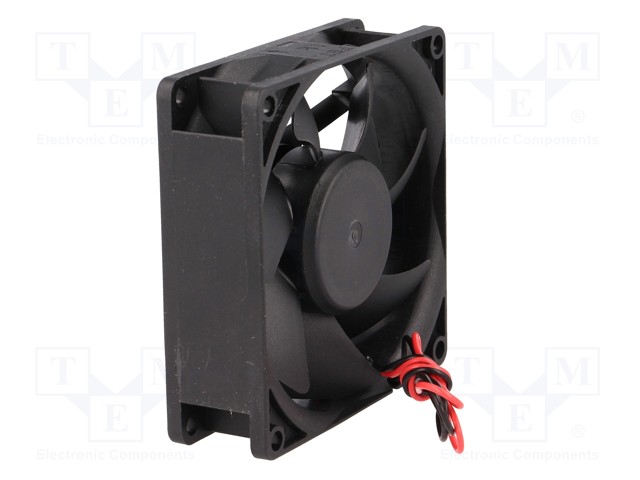

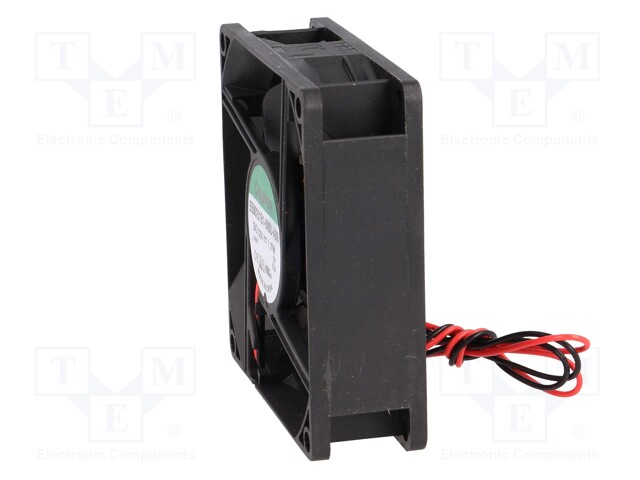

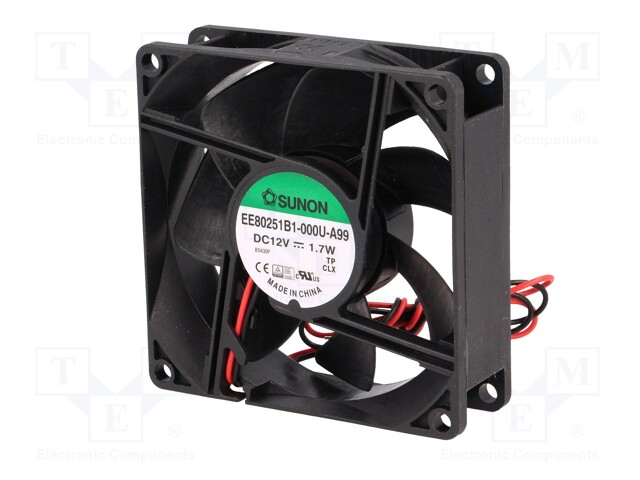

Fan: DC; axial; 12VDC; 80x80x25mm; 69.7m3/h; 33dBA; ball bearing
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
EE80251B1-000U-A99
Tootja: SUNON
Tootja tootekood: EE80251B1-000U-A99
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE95DC0DED87A0A0D5&compId=SUNON.txt?ci_sign=da327a67e06fb29004fb8dd6db0dbb28f9abd61f
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFD9F3F6A6CFA8&compId=Sunon%20DC%20Brushless%20Fan%20%26%20Blower.pdf?ci_sign=a0c7d956948f5b35d6b13385113d437006f0ea7b
- pVersion=0046&contRep=ZT&docId=E1C04371B0D7D7F1A6F5005056AB5A8F&compId=(d08038120g-00)-0.pdf?ci_sign=c2583b6eaab746a5761cf7155e39a55af4ca8edb
Spetsifikatsioon tootele Fan: DC; axial; 12VDC; 80x80x25mm; 69.7m3/h; 33dBA; ball bearing
| Supply voltage | 12V DC |
| Operating temperature | -10...70°C |
| Enclosure material | thermoplastic |
| Flammability rating | UL94V-0 |
| Cable length | 300mm |
| Current rating | 0.145A |
| Fan efficiency | 69.7m<sup>3</sup>/h |
| Power consumption | 1.7W |
| Additional functions | Autorestart |
| Rotational rate/speed | 3200 (±10%)rpm |
| Fan motor | brushless DC motor |
| Fan dimensions | 80x80x25mm |
| Kind of Bearing | ball bearing |
| Min. insulation resistance | 500MΩ |
| Impeller material | thermoplastic |
| Kind of fan | axial |
| Insulation class | E |
| Type of fan | DC |
| Static pressure | 4.57mm H<sub>2</sub>O |
| Noise level | 33dBA |
