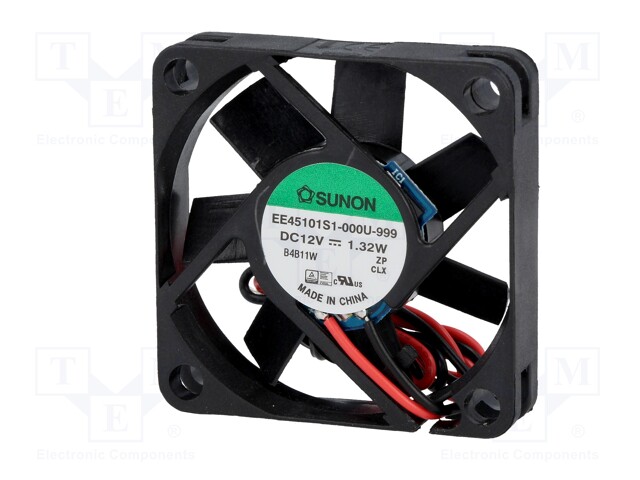

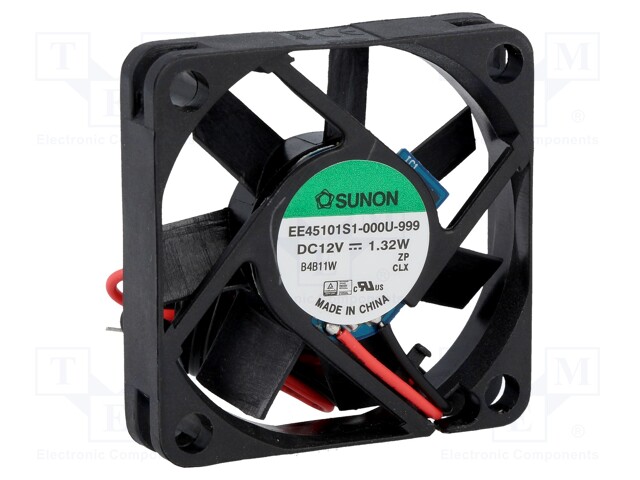

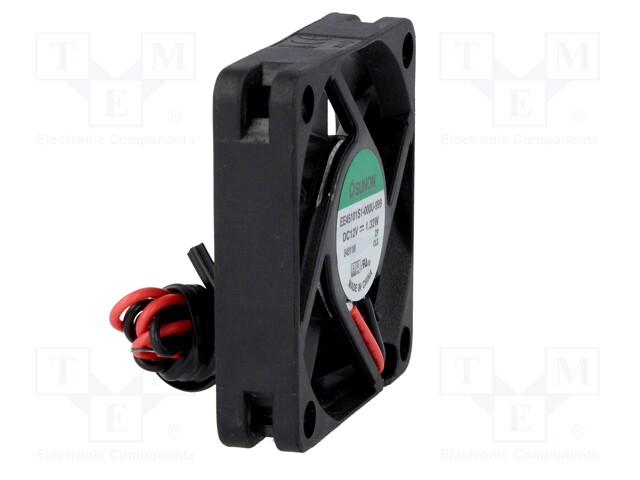

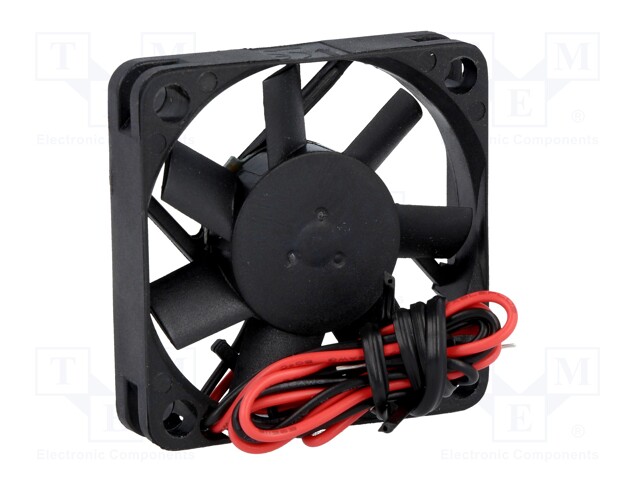

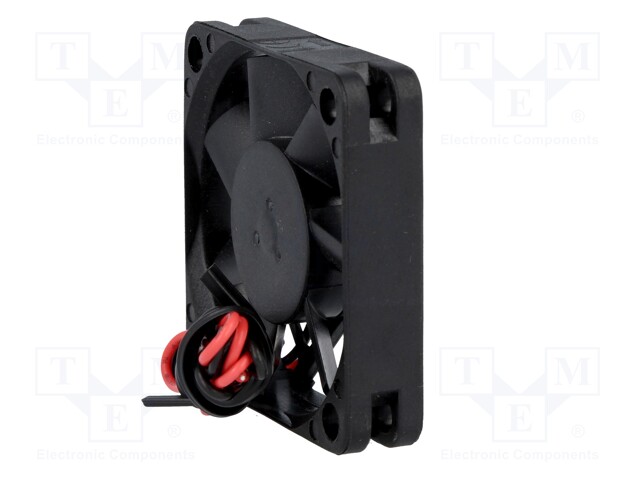

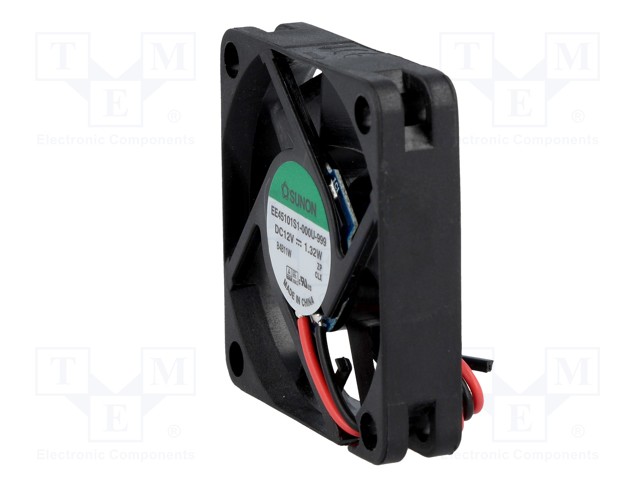

Fan: DC; axial; 12VDC; 45x45x10mm; 17.8m3/h; 31dBA; slide bearing
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
EE45101S1-000U-999
Tootja: SUNON
Tootja tootekood: EE45101S1-000U-999
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE95DC0DED87A0A0D5&compId=SUNON.txt?ci_sign=da327a67e06fb29004fb8dd6db0dbb28f9abd61f
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE69BCFD9F3F6A6CFA8&compId=Sunon%20DC%20Brushless%20Fan%20%26%20Blower.pdf?ci_sign=a0c7d956948f5b35d6b13385113d437006f0ea7b
- pVersion=0046&contRep=ZT&docId=E1C04B6997472BF1A6F5005056AB5A8F&compId=EE45101S1-999.pdf?ci_sign=a2372050b83f5c631301d482186528aa8198d991
Spetsifikatsioon tootele Fan: DC; axial; 12VDC; 45x45x10mm; 17.8m3/h; 31dBA; slide bearing
| Supply voltage | 12V DC |
| Operating temperature | -10...70°C |
| Enclosure material | thermoplastic |
| Flammability rating | UL94V-0 |
| Current rating | 110mA |
| Fan efficiency | 17.8m<sup>3</sup>/h |
| Power consumption | 1.32W |
| Additional functions | Autorestart |
| Rotational rate/speed | 5700 (±15%)rpm |
| Fan motor | brushless DC motor |
| Fan dimensions | 45x45x10mm |
| Kind of Bearing | slide bearing |
| Min. insulation resistance | 10MΩ |
| Impeller material | thermoplastic |
| Kind of fan | axial |
| Insulation class | A |
| Type of fan | DC |
| Static pressure | 4.06mm H<sub>2</sub>O |
| Noise level | 31dBA |
