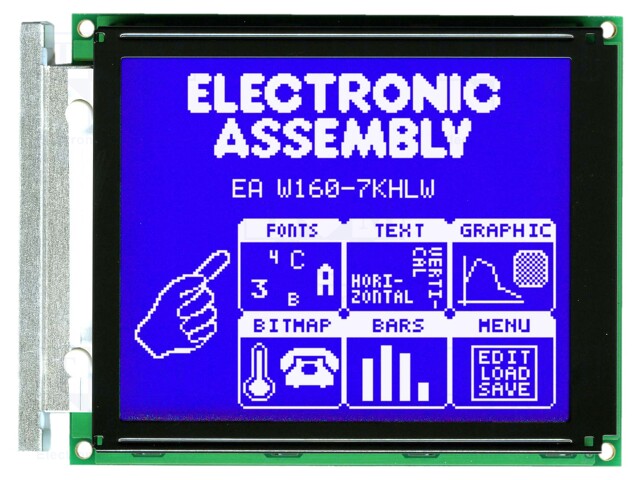

Display: LCD; graphical; 160x128; STN Negative; blue; LED; PIN: 20
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
EA W160-7KHLW
Tootja: ELECTRONIC ASSEMBLY
Tootja tootekood: EA W160-7KHLW
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCB79915E2056500D2&compId=EA%20W160-7KHLW.pdf?ci_sign=a9a7198625d28c5f47036661a09f7e81b15ea82b
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCB7997657D8ED40D2&compId=EAW160-7KHLW.pdf?ci_sign=15d9e58a6f2ca5ac63a6696fc155ce687427eaaf
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE80A1B5BCC66760D5&compId=displays.txt?ci_sign=eaf78fd912bebb1d94d1d350f52cc04fb0aa44fb
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDB8AAF6A40EB05A0C7&compId=display-visions.txt?ci_sign=bb0d6a37612ec70fbd412e3f6c33742a0c45459e
Spetsifikatsioon tootele Display: LCD; graphical; 160x128; STN Negative; blue; LED; PIN: 20
| Supply voltage | 500mV...5V DC |
| Interface | 8bit BUS |
| Number of pins | 20 |
| Dimensions | 140x102x19.2mm |
| Type of pin configuration | 1x20 |
| Display resolution | 160x128 |
| Kind of display | graphical |
| Display technology | STN Negative |
| Backgr. colour | blue |
| Backlight colour | white |
| Illumination | LED |
| Window dimensions (H x W) | 101x82mm |
| Kind of controller | T6963C |
| Type of display | LCD |
| Ribbon cable pitch | 1mm |
