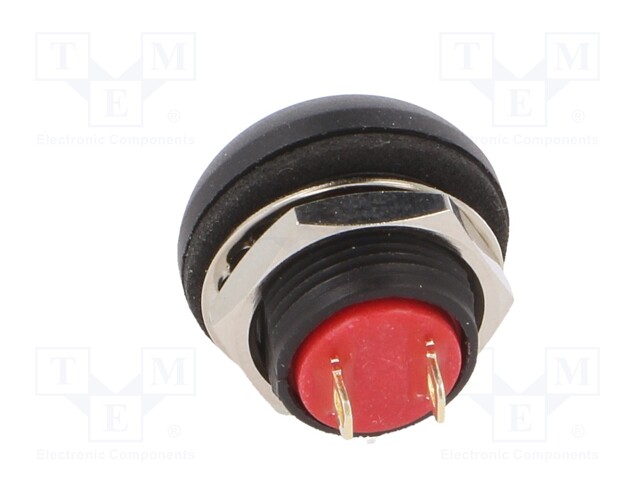

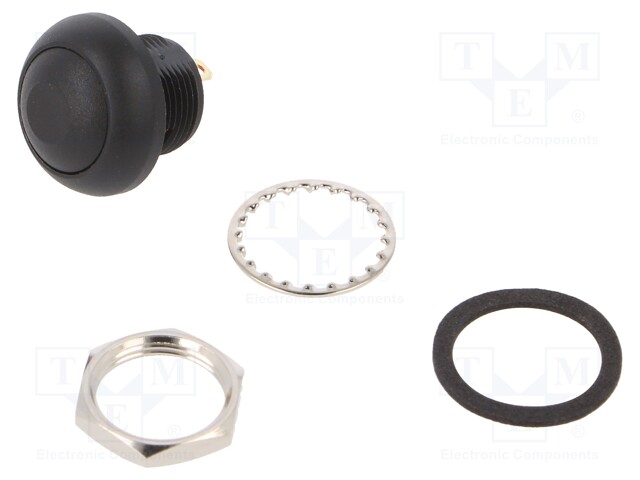

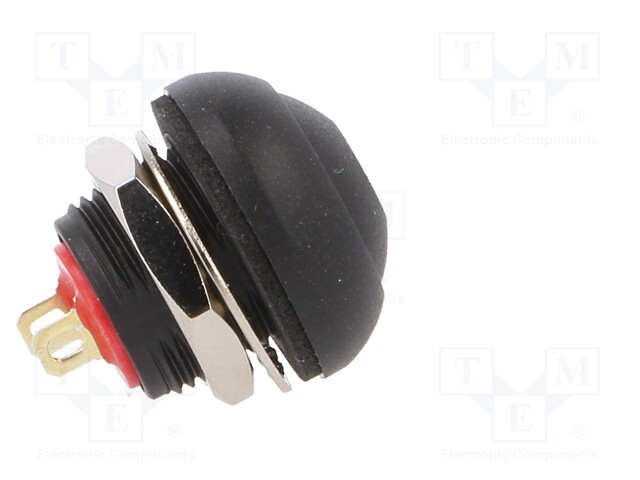

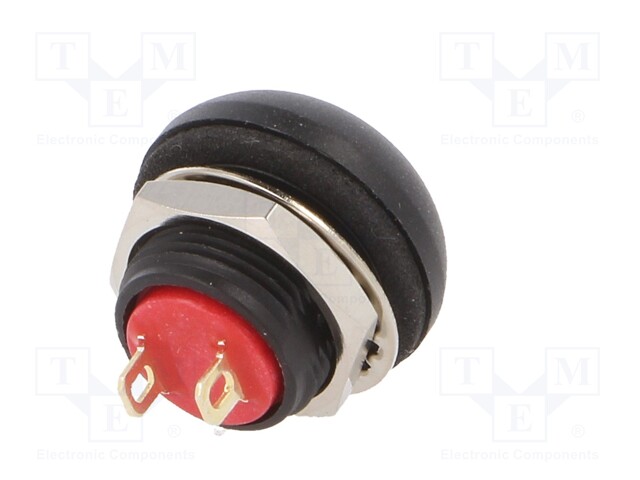

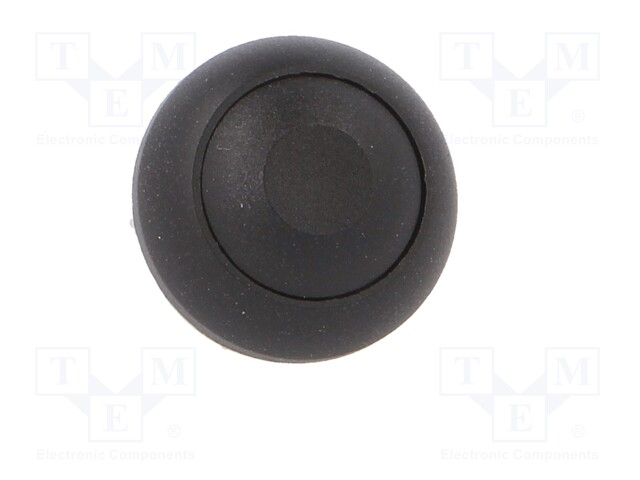

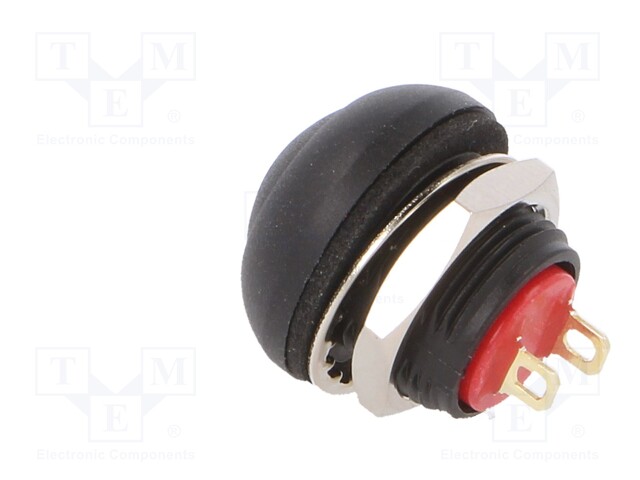

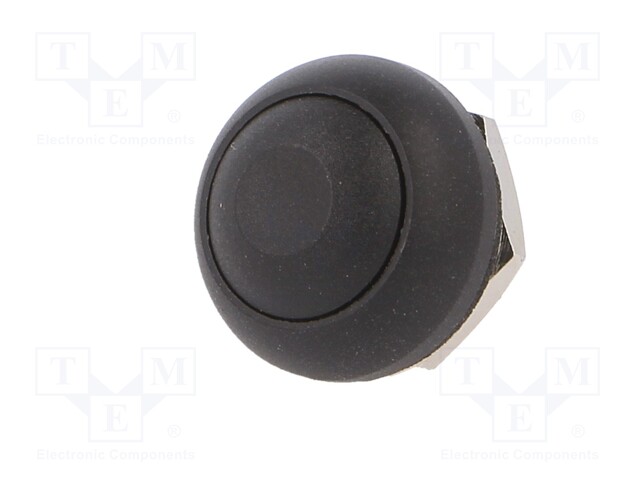

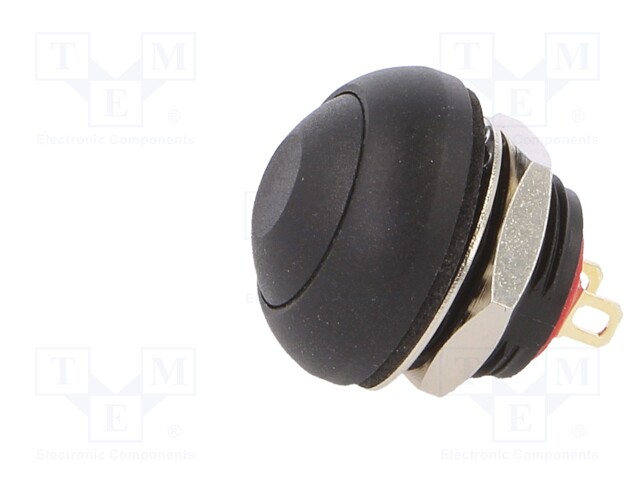

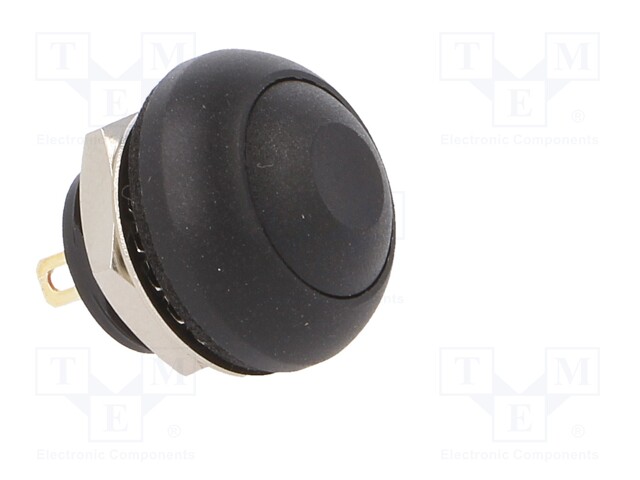

Switch: push-button; Pos: 2; SPST-NO; 0.4A/32VAC; 0.1A/50VDC; IP67

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DPW 1 CG-K
    Tootja: KNITTER
    Tootja tootekood: DPW 1 CG-K
    • Mounting
    • Operating temperature
    • IP rating
    • Type of switch
    • Contact plating
    • Number of positions
    • Leads
    • Max. contact resistance
    • Terminal pitch
    • Body material
    • Mounting hole diameter
    • Body colour
    • Mechanical durability
    • Illumination
    • Electrical life
    • Key stroke
    • Contacts configuration
    • DC contacts rating @R
    • AC contacts rating @R
    • Switching method
    • Stable positions number
    • Operating Force
    • Actuator colour
    • Button shape
    • Button shape
    • Button shape
    • Button height
    • Button marking
    • Button material

    12,83 € 12,83 € (KM-TA) 12.83 EUR

    12,83 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Switch: push-button; Pos: 2; SPST-NO; 0.4A/32VAC; 0.1A/50VDC; IP67

    Mounting screw
    Operating temperature -30...85°C
    IP rating IP67
    Type of switch push-button
    Contact plating gold-plated
    Number of positions 2
    Leads flat pins
    Max. contact resistance 50mΩ
    Terminal pitch 5.08mm
    Body material polyamide
    Mounting hole diameter Ø13.6mm
    Body colour black
    Mechanical durability 1000000cycles
    Illumination none
    Electrical life 500000cycles
    Key stroke 1.5mm
    Contacts configuration SPST-NO
    DC contacts rating @R 100mA / 50V DC
    AC contacts rating @R 400mA / 32V AC
    Switching method OFF-(ON)
    Stable positions number 1
    Operating Force 3.5N
    Actuator colour black
    Button shape convex, round
    Button shape round
    Button height 2mm
    Button marking blank
    Button material polyamide
