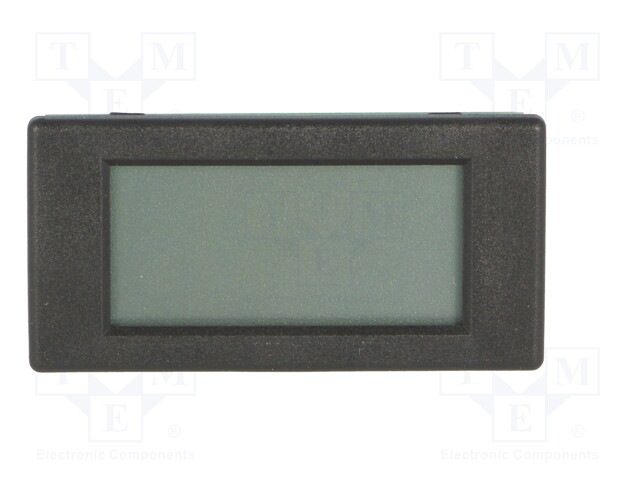

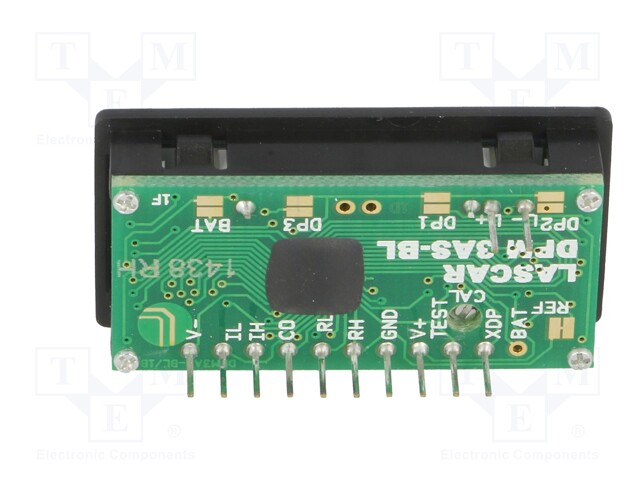

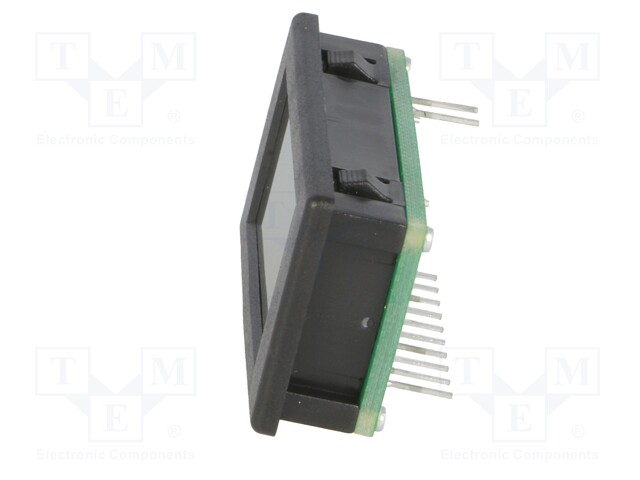

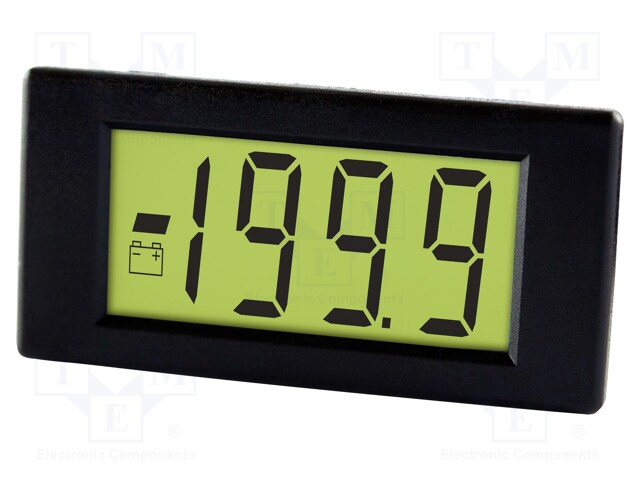

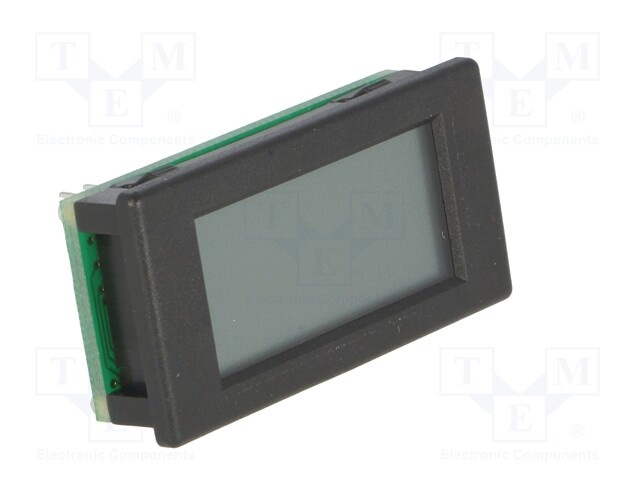

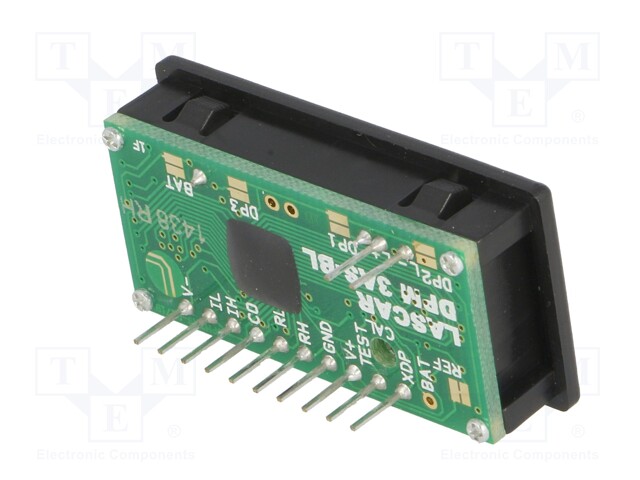

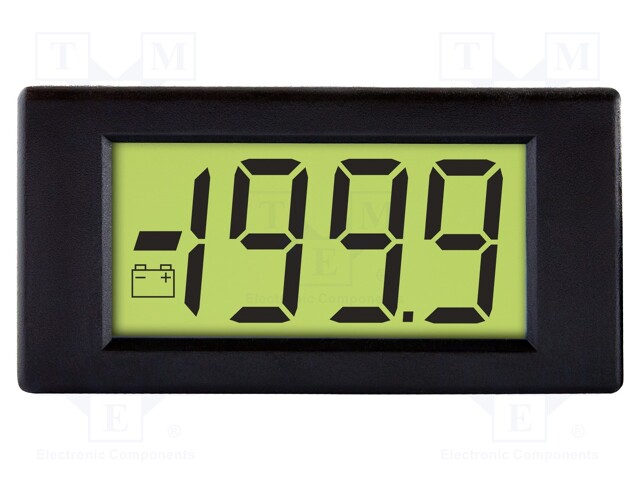

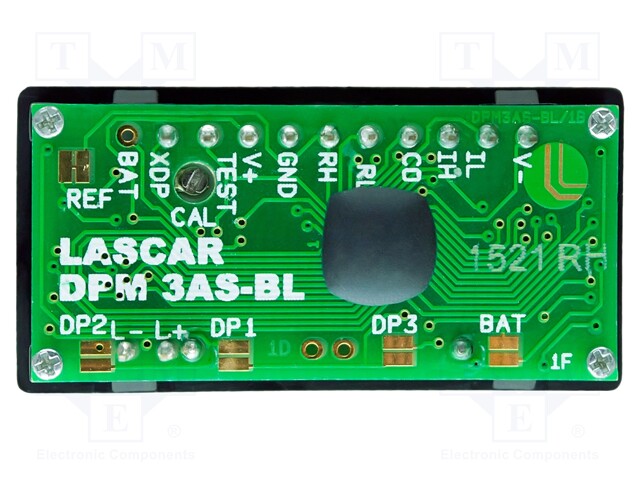

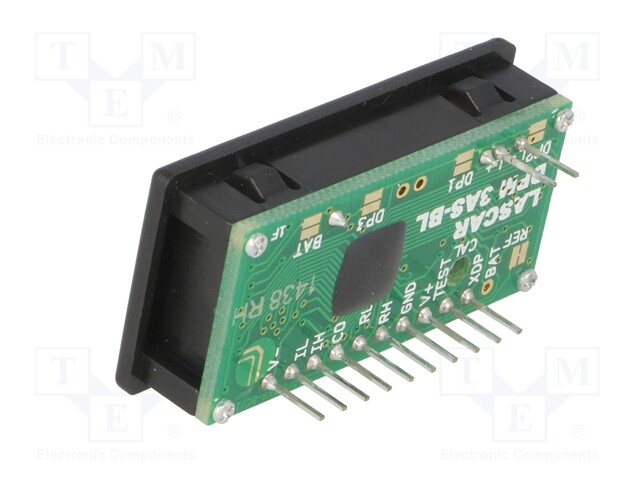

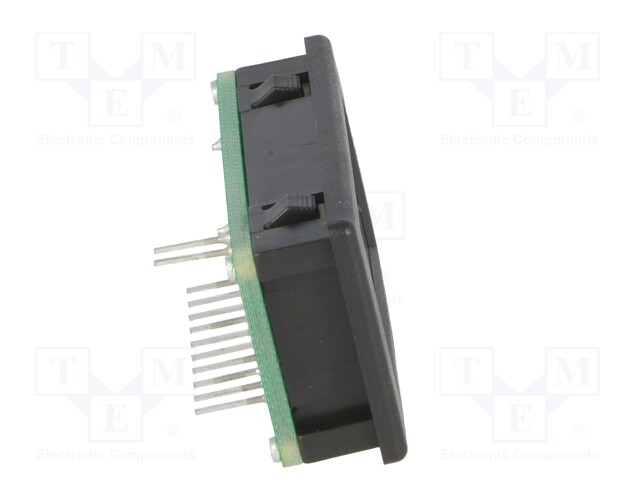

Panel; LCD 3,5 digit 11mm,with a backlit; VDC: 0÷200mV
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
DPM 3AS-BL-1
Tootja: LASCAR
Tootja tootekood: DPM 3AS-BL
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDEABC2AD97901E80D6&compId=MEASURING.txt?ci_sign=d0ccb06ee923cc677e69012bfb5fb7bd92f37df8
- pVersion=0046&contRep=ZT&docId=005056AB5A8F1ED3ABEB6E1127FF81DC&compId=INB-PAN-EN.pdf?ci_sign=9fc4cf6bca054ab59dd9a8cd086820583cf86562
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDBB599B4913B1460C7&compId=DPM3AS-BL.pdf?ci_sign=bc509343ccfbd04603bbdeaf805bbf302598e464
Spetsifikatsioon tootele Panel; LCD 3,5 digit 11mm,with a backlit; VDC: 0÷200mV
| Mounting | on panel |
| Supply voltage | 3...7.5V DC, 6...15V DC |
| Mechanical mounting | snap fastener |
| Mounting hole diameter | 37.5x17.5mm |
| Kind of display used | LCD |
| Supply current | 350µA |
| Digit height | 11mm |
| Illumination voltage | 5V |
| Measuring instrument features | automatic polarization selection, autozeroing, decimal point place selection, measures voltage in relation to ground of internal supply source |
| Type of meter | voltmeter |
| Measurement | DC voltage |
| Sampling | 2,5x/s |
| Kind of meter | digital, mounting |
| Dimensions (W x H x D) | 40x20x9.6mm |
