Relay: reed; SPST-NO; Ucoil: 12VDC; 1A; max.200VDC; max.200VAC; PCB

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: DIP12-1A72-12M
    Tootja: MEDER
    Tootja tootekood: DIP12-1A72-12M
    • Mounting
    • Case
    • Operating temperature
    • Terminal pitch
    • Soldering temperature
    • Body dimensions
    • Switched voltage
    • Switched voltage
    • Coil resistance
    • Rated coil voltage
    • Contacts configuration
    • Contact resistance
    • Contact current max.
    • Coil voltage max.
    • Type of relay
    • Coil voltage min.
    • Coil power consumption

    4,65 € 4,65 € (KM-TA) 4.65 EUR

    4,65 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Spetsifikatsioon tootele Relay: reed; SPST-NO; Ucoil: 12VDC; 1A; max.200VDC; max.200VAC; PCB

    Mounting PCB
    Case DIP14
    Operating temperature -20...70°C
    Terminal pitch 2.54mm
    Soldering temperature 260°C

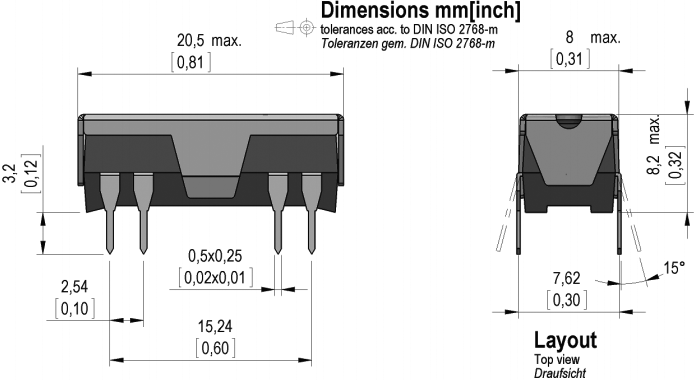

    Body dimensions 20.5x8.2x8mm
    Switched voltage ≤ 200V AC, ≤ 200V DC
    Coil resistance 1kΩ
    Rated coil voltage 12V DC
    Contacts configuration SPST-NO
    Contact resistance 150mΩ
    Contact current max. 1A
    Coil voltage max. 16V DC
    Type of relay reed
    Coil voltage min. 8.4V DC
    Coil power consumption 145mW
