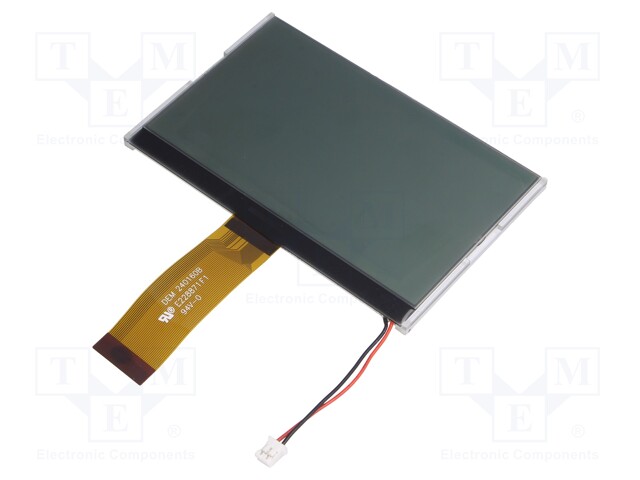

Display: LCD; graphical; 240x160; FSTN Positive; 105.5x67.2x4.2mm
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
DEM 240160B FGH-PW
Tootja: DISPLAY ELEKTRONIK
Tootja tootekood: DEM 240160B FGH-PW
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB0ED61ED8B1FB6451052F4143&compId=DEM240160BFGH-PW.pdf?ci_sign=ccf75c3b582e4a1ba28278716ad676dcae955e87
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCB6D05B65860620D2&compId=O-INFO_GRAFIC.pdf?ci_sign=71cdd2cd41fc9696be194cd66a7a276b132cc8a6
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDE80A1B5BCC66760D5&compId=displays.txt?ci_sign=eaf78fd912bebb1d94d1d350f52cc04fb0aa44fb
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDFA48D1C148081C0D6&compId=ESD%20Customer%20Service.txt?ci_sign=3268072bd7a58e9047ff598dac2a1cb8c9585688
- pVersion=0046&contRep=ZT&docId=005056AB752F1ED7B2BBD234FC67CA15&compId=DEM%20240160B%20FGH-PW.pdf?ci_sign=d4cb0c1abf7d4406d6f84698b007796d1cbd68b3
Spetsifikatsioon tootele Display: LCD; graphical; 240x160; FSTN Positive; 105.5x67.2x4.2mm
| Interface | 8bit MCU |
| Number of pins | 35 |
| Dimensions | 105.5x67.2x4.2mm |
| Type of pin configuration | 1x35 |
| Display resolution | 240x160 |
| Screen size | 3.9" |
| Kind of display | graphical |
| Display technology | FSTN Positive |
| Backlight colour | white |
| Illumination | LED |
| Window dimensions (H x W) | 99x57.5mm |
| Kind of controller | UC1698 |
| Type of display | LCD |
| Ribbon cable pitch | 500µm |
