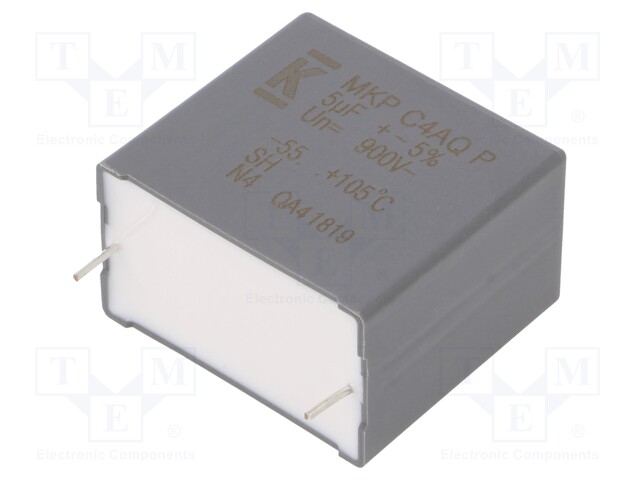

Capacitor: polypropylene; DC-Link; 5uF; ESR: 10mΩ; THT; ±5%; 10.1A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
C4AQOBU4500P11J
Tootja: KEMET
Tootja tootekood: C4AQOBU4500P11J
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCA4F5892ADC6700CE&compId=DISCHARGING_CAPACITORS.txt?ci_sign=9197ac52f93921ac5b72e37292c1cf1d55b23ec9
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDD83E494375AC660D2&compId=C4AQOBU4500P11J.pdf?ci_sign=cc30ac971976fea10b53e0794235e87fbfe75d19
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDD84C86EF0A07DE0D2&compId=C4AQGBU5150P11K-S.pdf?ci_sign=95f11165d39eef43456a612e4bcb8db1a342ca81
Spetsifikatsioon tootele Capacitor: polypropylene; DC-Link; 5uF; ESR: 10mΩ; THT; ±5%; 10.1A
| Mounting | THT |
| Max. operating current | 10.1A |
| Operating temperature | -55...125°C |
| Tolerance | ±5% |
| Terminal pitch | 27.5mm |
| Max. operating voltage | 900V DC |
| Capacitance | 5µF |
| Kind of capacitor | DC-Link |
| Type of capacitor | polypropylene |
| Conform to the norm | AEC-Q200 |
| ESR value | 10mΩ |
| Climate class | 55/105/56, IEC60068-1 |
| Pulse resistance | 70V/μs |
