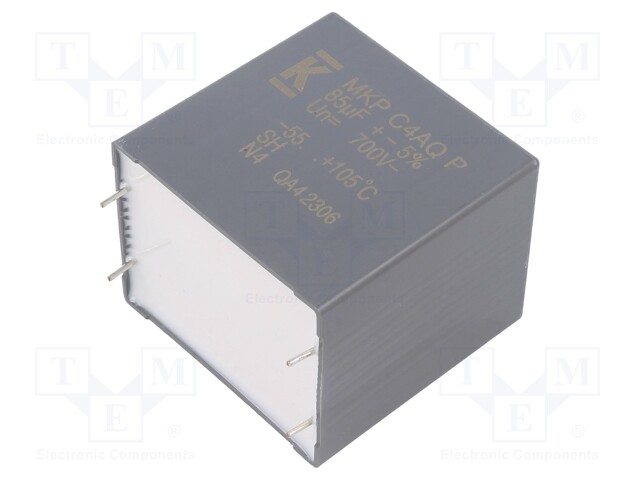

Capacitor: polypropylene; DC-Link; 85uF; ESR: 2.8mΩ; THT; ±5%; 35.8A
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
C4AQJEW5850P3AJ
Tootja: KEMET
Tootja tootekood: C4AQJEW5850P3AJ
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCA4F5892ADC6700CE&compId=DISCHARGING_CAPACITORS.txt?ci_sign=9197ac52f93921ac5b72e37292c1cf1d55b23ec9
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDD83E3CDAA61C780D2&compId=C4AQJEW5850P3AJ.pdf?ci_sign=70120af8ef7ff9c3a247aa4586585e8c13143381
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDD84C86EF0A07DE0D2&compId=C4AQGBU5150P11K-S.pdf?ci_sign=95f11165d39eef43456a612e4bcb8db1a342ca81
Spetsifikatsioon tootele Capacitor: polypropylene; DC-Link; 85uF; ESR: 2.8mΩ; THT; ±5%; 35.8A
| Mounting | THT |
| Operating temperature | -55...125°C |
| Tolerance | ±5% |
| Terminal pitch | 52.5mm |
| Max. operating voltage | 700V DC |
| Kind of capacitor | DC-Link |
| Type of capacitor | polypropylene |
| Conform to the norm | AEC-Q200 |
| ESR value | 2.8mΩ |
| Climate class | 55/105/56, IEC60068-1 |
| Pulse resistance | 15V/μs |
