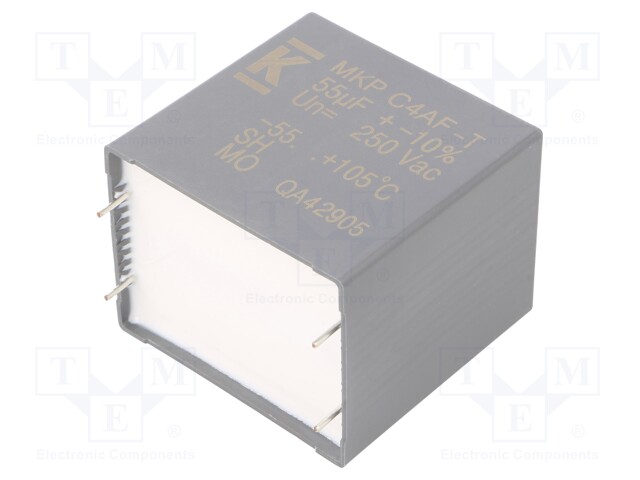

AC Film Capacitor, 55 µF, 250 VAC, Metallized PP, ± 10%, C4AF Series, Radial Box
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
C4AF1EW5550T3AK
Tootja: KEMET
Tootja tootekood: C4AF1EW5550T3AK
Product downloads
- 3109133.pdf
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCA4F5892ADC6700CE&compId=DISCHARGING_CAPACITORS.txt?ci_sign=9197ac52f93921ac5b72e37292c1cf1d55b23ec9
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDB90A662D82EC280C7&compId=C4AF3BW4680T3LK_S.PDF?ci_sign=f50813cd7be2861e4b6422fe1b6400b49fc36dce
- pVersion=0046&contRep=ZT&docId=005056AB90B41EDB90A6813F7A8A20C7&compId=C4AF1EW5550T3AK.pdf?ci_sign=78f418b4af2cf13bbb9c165f34bd3d6242ce13e2
Spetsifikatsioon tootele AC Film Capacitor, 55 µF, 250 VAC, Metallized PP, ± 10%, C4AF Series, Radial Box
Mounting | THT |
Max. operating current | 13A |
Operating temperature | -55...105°C |
Tolerance | ±10% |
Max. forward impulse current | 297A |
Terminal pitch | 37.5mm |
Body dimensions | 42x40x20mm |
Max. operating voltage | 250V AC, 500V DC |
Capacitance | 55µF |
Kind of capacitor | DC-Link |
Type of capacitor | polypropylene |
Capacitor application | filtering |
Conform to the norm | AEC-Q200 |
ESR value | 4.8mΩ |
Pulse resistance | 18V/μs |
Max operating temperature | 105°C |
