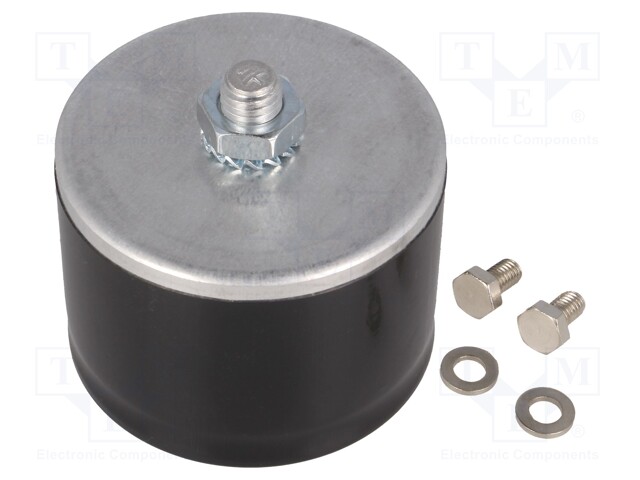

Capacitor: polypropylene; 150uF; Leads: screw; ESR: 1.4mΩ; C44U
Kordarv:
1.0
Minimum quantity:
1.0
Tootekood:
C44UOGT6150A8TK
Tootja: KEMET
Tootja tootekood: C44UOGT6150A8TK
Product downloads
- pVersion=0046&contRep=ZT&docId=005056AB281E1EDCA4F5892ADC6700CE&compId=DISCHARGING_CAPACITORS.txt?ci_sign=9197ac52f93921ac5b72e37292c1cf1d55b23ec9
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE789D27B9D89E3C745&compId=C44UOGT6150A8TK.pdf?ci_sign=fefda834b821d0ed1403161c48d20befb31a9649
- pVersion=0046&contRep=ZT&docId=005056AB752F1EE789D2C243EE29E745&compId=KEM_F3049_C44U_RADIAL.pdf?ci_sign=da5e776d625366a819c74c13bc30826753132765
Spetsifikatsioon tootele Capacitor: polypropylene; 150uF; Leads: screw; ESR: 1.4mΩ; C44U
| Mounting | M12 screw |
| Max. operating current | 65A |
| Operating temperature | -40...85°C |
| Tolerance | ±10% |
| Leads | screw |
| Max. forward impulse current | 2550A |
| Terminal pitch | 31.7mm |
| Body dimensions | Ø85x70mm |
| Max. operating voltage | 900V DC |
| Capacitance | 150µF |
| Type of capacitor | polypropylene |
| Capacitor application | energy storage, filtering |
| Capacitors features | long life, low dielectric loss factor |
| ESR value | 1.4mΩ |
| Climate class | 40/100/21, IEC60068-1 |
