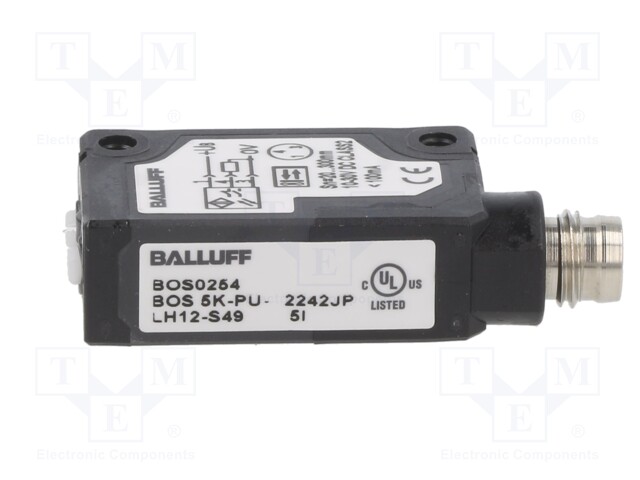

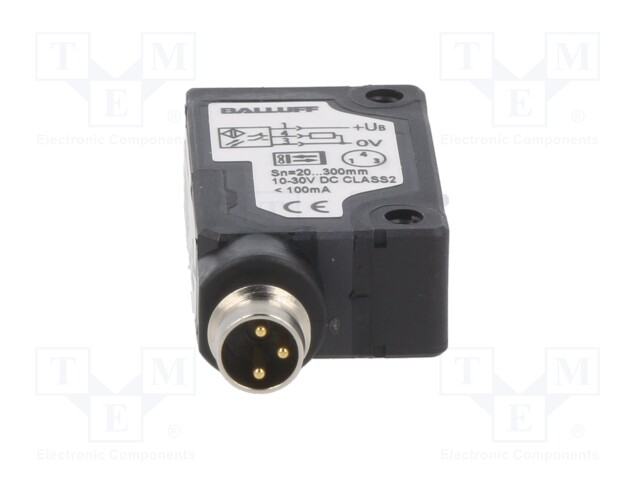

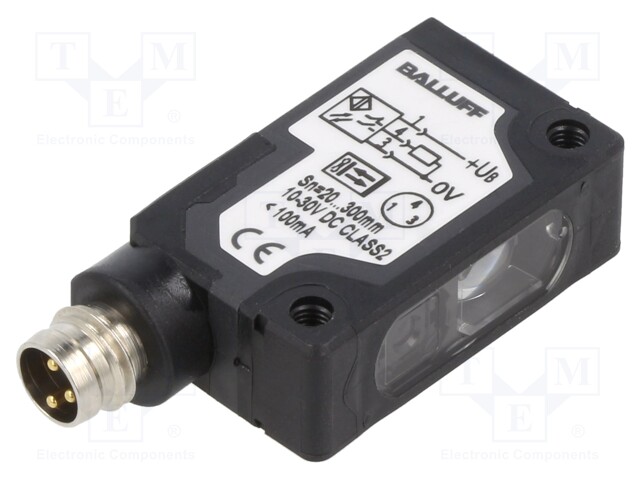

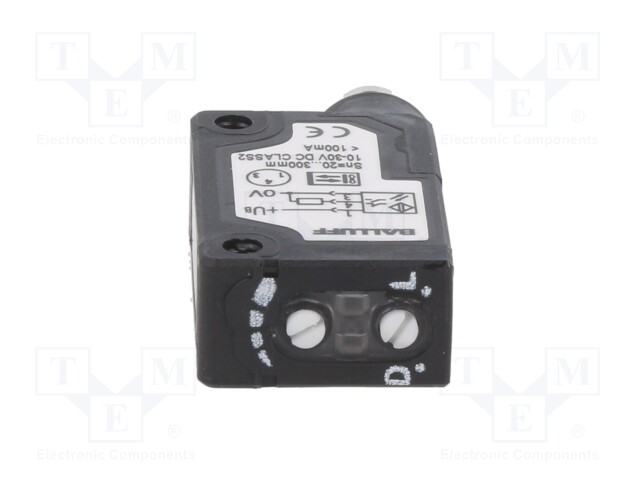

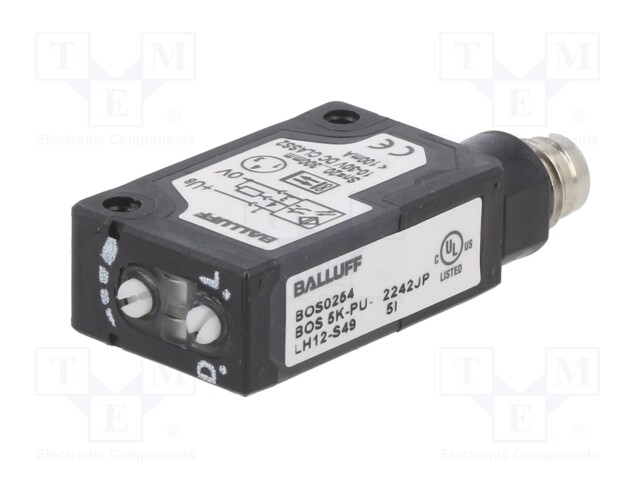

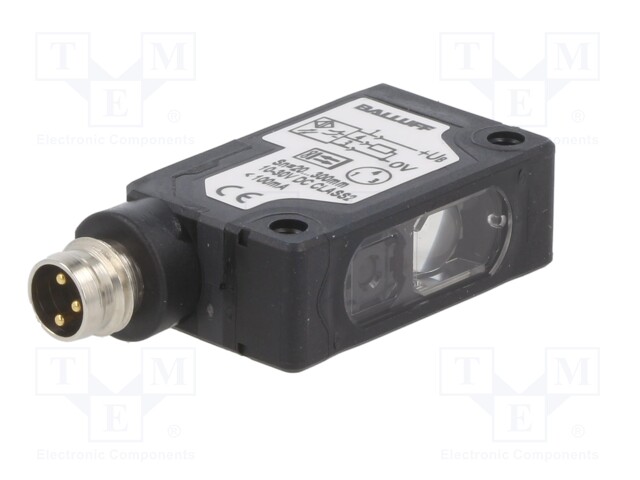

Sensor: photoelectric; Range: 20÷300mm; PNP NO / NC; 100mA; PIN: 3

    Kordarv: 1.0
    Minimum quantity: 1.0
    Tootekood: BOS 5K-PU-LH12-S49
    Tootja: BALLUFF
    Tootja tootekood: BOS 5K-PU-LH12-S49
    • Supply voltage
    • Max. operating current
    • Operating temperature
    • IP rating
    • Number of pins
    • Body material
    • Body dimensions
    • Range
    • Output configuration
    • Type of sensor
    • Sensors features
    • Sensors features
    • Connection
    • Operation mode
    • Switching frequency max
    • Operation modes
    • Operation modes

    0,00 € 0,00 € (KM-TA) 0.0 EUR

    0,00 €

    Seda kombinatsiooni ei eksisteeri.

    Lisa ostukorvi

    Product downloads

    Spetsifikatsioon tootele Sensor: photoelectric; Range: 20÷300mm; PNP NO / NC; 100mA; PIN: 3

    Supply voltage 10...30V DC
    Max. operating current 100mA
    Operating temperature -10...55°C
    IP rating IP67
    Number of pins 3
    Body material PBT
    Body dimensions 42.3x10.8x19.5mm
    Range 20...300mm
    Output configuration PNP NO / NC
    Type of sensor photoelectric
    Sensors features background impact elimination, sensitivity adjustable
    Connection connector M8
    Operation mode diffuse-reflective
    Switching frequency max 2kHz
    Operation modes DARK-ON, LIGHT-ON
